Speaker Connections

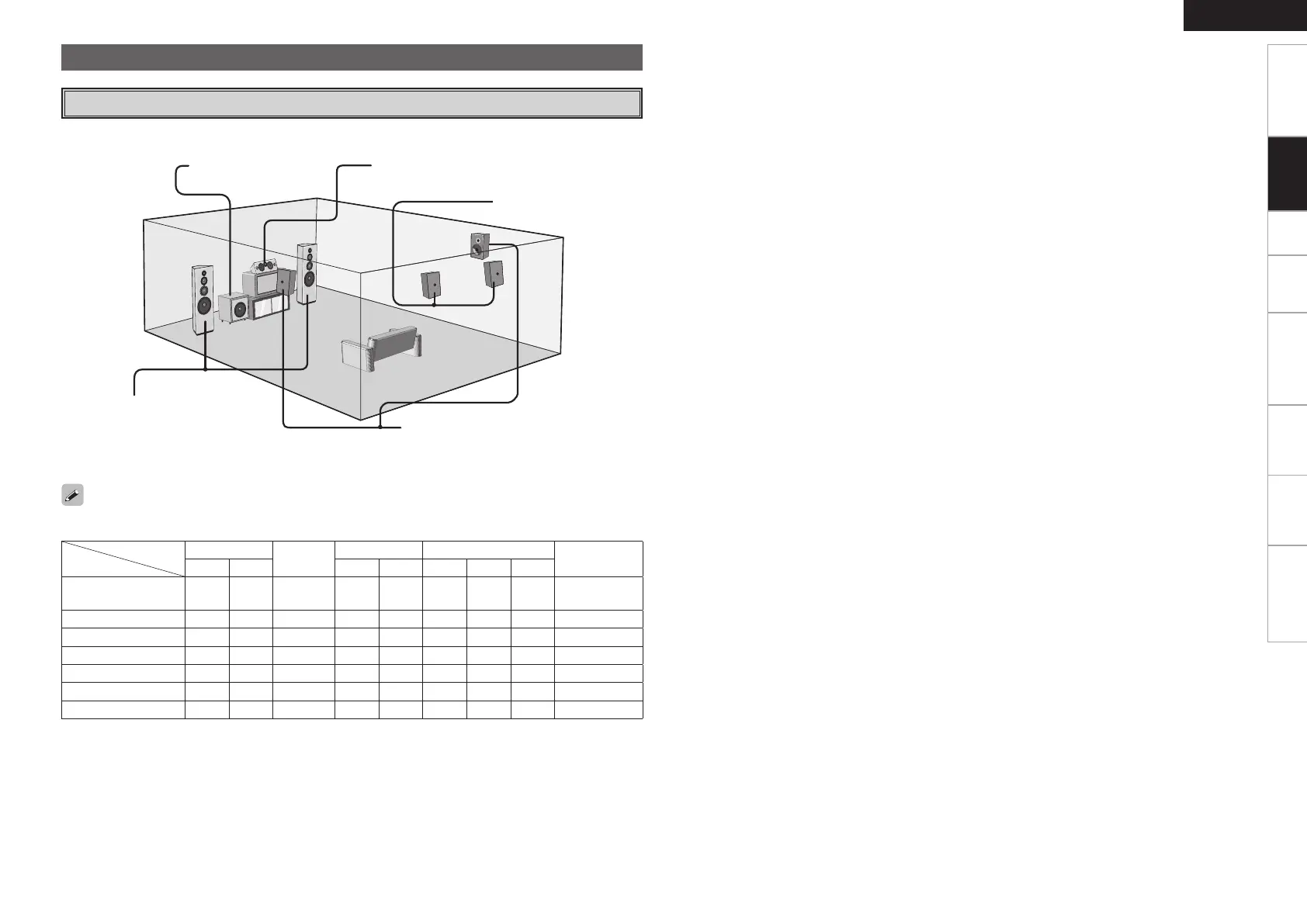

The illustration below shows a basic example of installation of the amplifier combined with 8 speakers and
a monitor.
Speaker Installation
Subwoofer Center speaker
Surround speakers
Front speakers
Place the front speakers to the
sides of the monitor or screen and
as flush with the screen surface as
possible.
The table below shows a typical speaker configuration for the AVR-1508.
Surround back speakers
FRONT
CENTER
SURROUND SURROUND BACK
SUBWOOFER
L R L R L R 1 only
7.1-channels
(FRONT A+B)
S S S S S S S
–
S
7.1-channels
S S S S S S S
–
S
6.1-channels
S S S S S
– –
S S
5.1-channels
S S S S S
– – –
S
3.1-channels
S S S
– – – – –
S
2.1-channels
S S
– – – – – –
S
2-channels
S S
– – – – – – –

Denon AVR-1508 Specifications

General

HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
AM/FM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Preset Station Qty	56
HDMI Switching	Yes
Tuning Range	FM: 87.5 - 108 MHz, AM: 522 - 1620 kHz
Audio D/A Converter	24-bit / 192 kHz
Output Impedance / Channel	8 Ohm
Frequency Response	10 Hz - 100 kHz
Channels	7.1
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Output Power / Channel	75W (8 ohms)
