Getting Started Setup Playback Remote Control Multi-Zone Information Troubleshooting
ENGLISH
47*%&0
065
"6%*0 7*%&0
$0.10/&/57*%&0
: 1# 13
7*%&0
065065
"6%*0
3-
065 065
)%.*
065
$0"9*"-
R
L
R
L

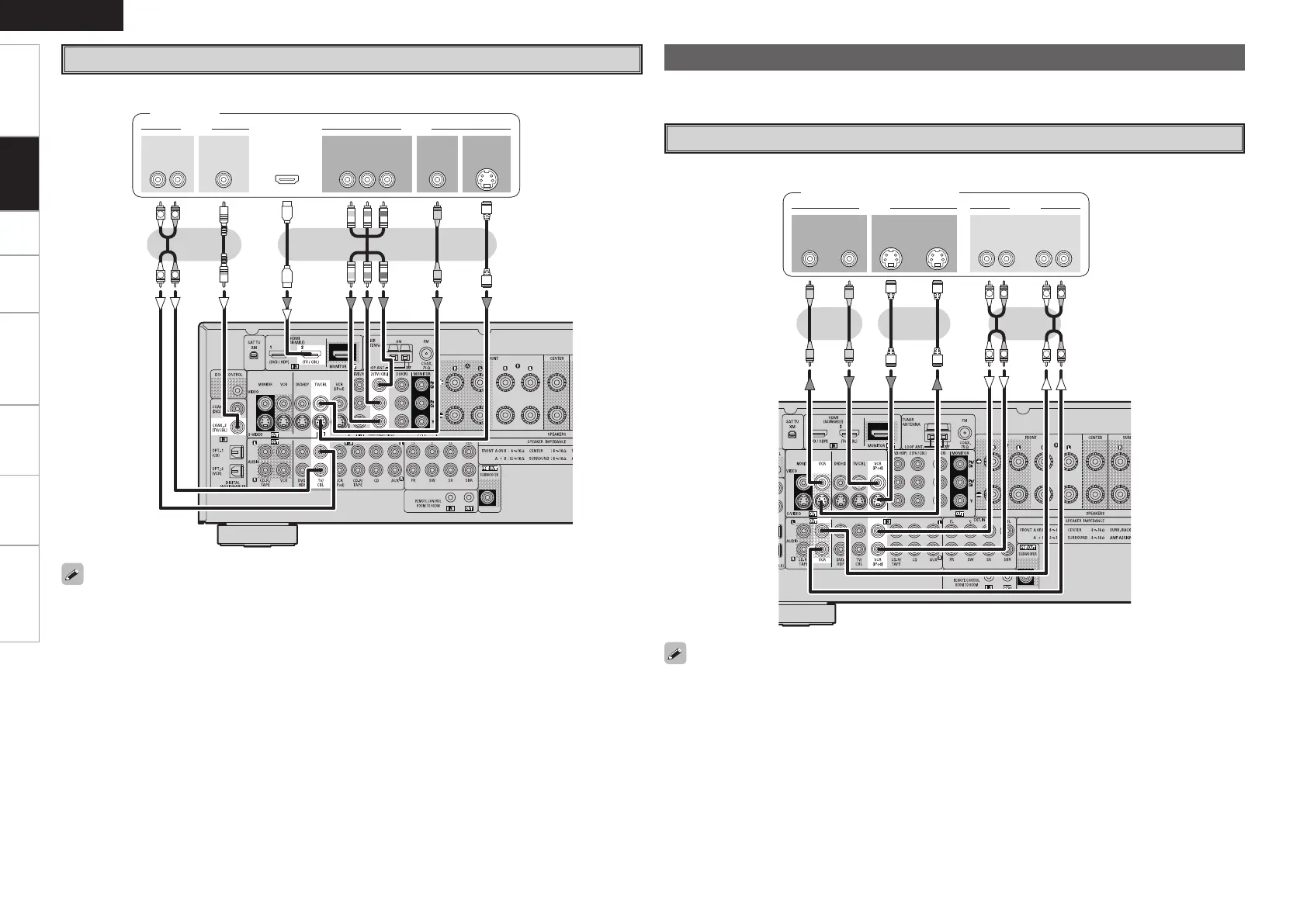

TV/CABLE Tuner
Connect the cables to be used.
TV tuner
• When using a optical cable for the digital audio connection, make the settings at “System Setup” – “Input
Setup” – “Digital In Assign” (vpage 22).
• AVR-1508’s S-Video connectors (input and output) and video connectors (input and output) have
independent circuit structures, so that video signals input from the S-Video connectors are only output
from the S-Video connector outputs and video signals input from the pin connectors are only output from
the pin connector outputs.
• The signals input to the component (color difference) video connectors are not output from the VIDEO
output connector (yellow) or the S-Video output connector.
Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.
Connecting the Recording Components
47*%&0
065
3- 3-
065065*/
"6%*07*%&0
*/
"6%*07*%&0
*/
R
L
R
L
R
L
R
L
Video Cassette Recorder
Connect the cables to be used.
Video cassette recorder
• When recording via the AVR-1508, the playback device’s cable must be of the same type as the cable
used to connect the AVR-1508’s VCR OUT connector.
Example: TV IN → S-Video cable : VCR OUT → S-Video cable
TV IN → Video cable : VCR OUT → Video cable
• AVR-1508’s S-Video connectors (input and output) and video connectors (input and output) have
independent circuit structures, so that video signals input from the S-Video connectors are only output
from the S-Video connector outputs and video signals input from the pin connectors are only output from
the pin connector outputs.
• The signals input to the component (color difference) video connectors are not output from the VIDEO
output connector (yellow) or the S-Video output connector.
or
Connections
To Next Page
