ENGLISH

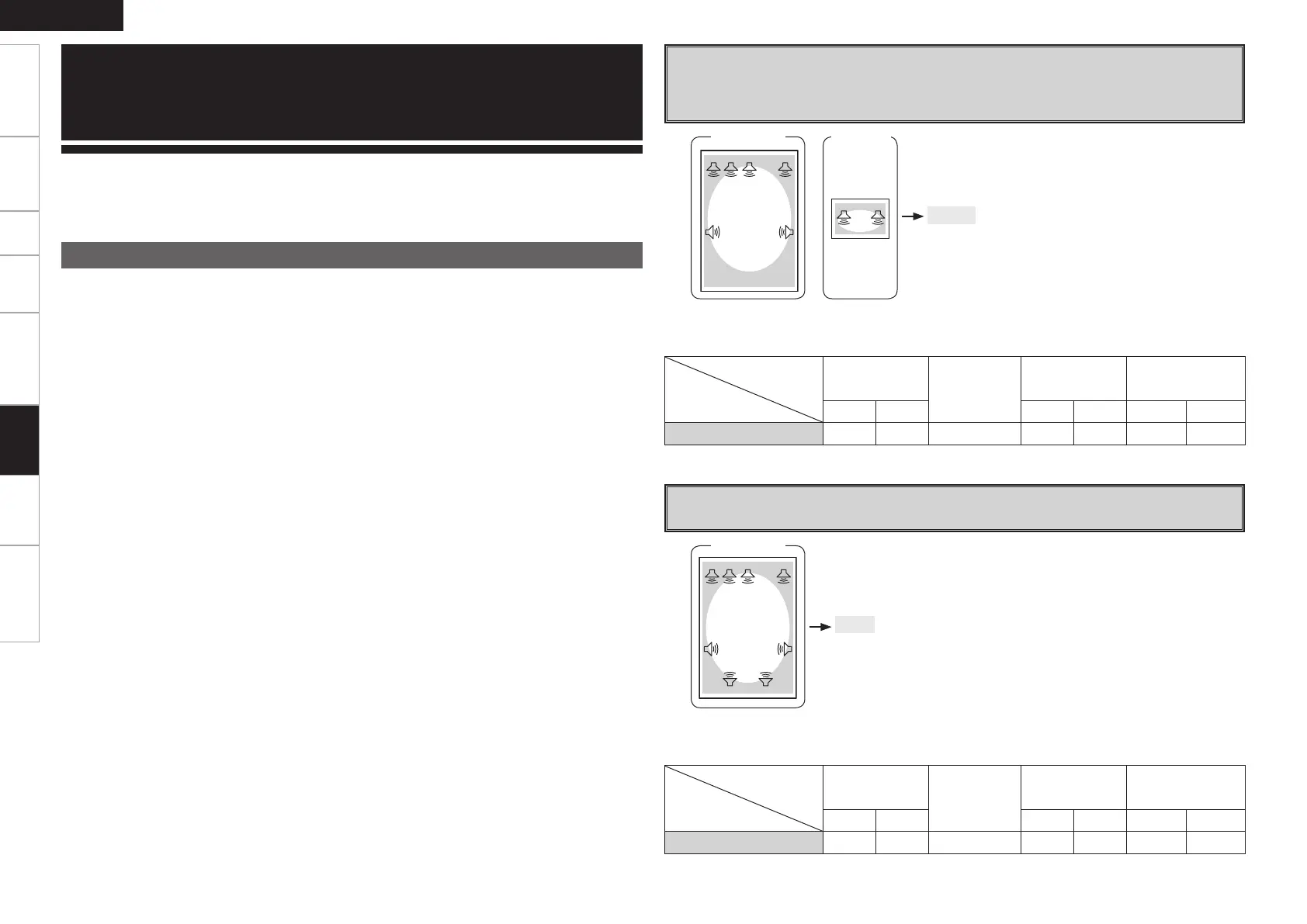

Amp Assign / Multi-zone Connections and
Operations
The AVR-1508 is compatible with the following types of playback:
• Multi-zone playback (ZONE2)
• 7.1-channel playback
Multi-zone Settings with the Amp Assign Function
The amp assign function lets you assign the amplifiers for the different channels built into the AVR-1508 to
the speaker outputs for the different zones.
Select the desired playback environment from among “Setting 1” and “Setting 2”, then set the corresponding
“Amp Assign” mode at “System Setup” – “Option Setup” – “Amp Assign” (vpage 24).
Connect the speakers as described at “Amp Assign” mode settings and speakers connected to the various
speaker terminals.
Main zone
ZONE2
Stereo
5.1ch
ZONE2
(Default)
Setting 1 :
F Multi-zone playback
• 5.1-channel playback + ZONE2 stereo playback
• 5.1-channel playback + ZONE2 monaural playback
Amp Assign mode:
+
n Amp Assign mode setting and speakers connected to the various speaker
terminals
Speaker terminal
Amp Assign mode
FRONT
CENTER
SURROUND
SURROUND BACK /
AMP ASSIGN
R L R L R L
ZONE2 FR FL C SR SL Z2R Z2L
Main zone
7.1ch
Setting 2 :
F 7.1-channel playback
n Amp Assign mode setting and speakers connected to the various speaker
terminals
Speaker terminal
Amp Assign mode
FRONT
CENTER
SURROUND
SURROUND BACK /
AMP ASSIGN
R L R L R L
7.1ch FR FL C SR SL SBR SBL
7.1ch
Amp Assign mode:
Multi-Zone
To Next Page
