Denon AVR-1508 - Part Names and Functions


Getting Started Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting
ENGLISH
For buttons not explained here, see the page indicated in parentheses ( ).
W3 W4 W5 W6 W7 W8 W9 E0 E1 E2
q w e r t y u i o Q0 Q1 Q2
Q3Q4Q5Q6Q7Q8Q9W0W1W2
q
i yu t r
w e
q Signal channel indicator
Lights when the preset channel is displayed at
w.
w Information display
e Input signal indicators
r Master volume indicator
This displays the volume level.
The Setup item number is displayed in System
Setup.
t ZONE2 / REC OUT source indicators
These indicators for the source selected for
ZONE2 / REC OUT lights.
y REC indicator
Lights while selecting the REC SELECT mode.
(Off when the “SOURCE” is selected.)
u ZONE2 indicator
This indicator lights when the ZONE2 is turned
on. (Off when the “SOURCE” is selected.)
i Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “TUNER”.
• AUTO
This lights when in the auto tuning mode.
• STEREO
In the FM mode, this lights when receiving
analog stereo broadcasts.
• TUNED
This lights when the broadcast is properly tuned
in.

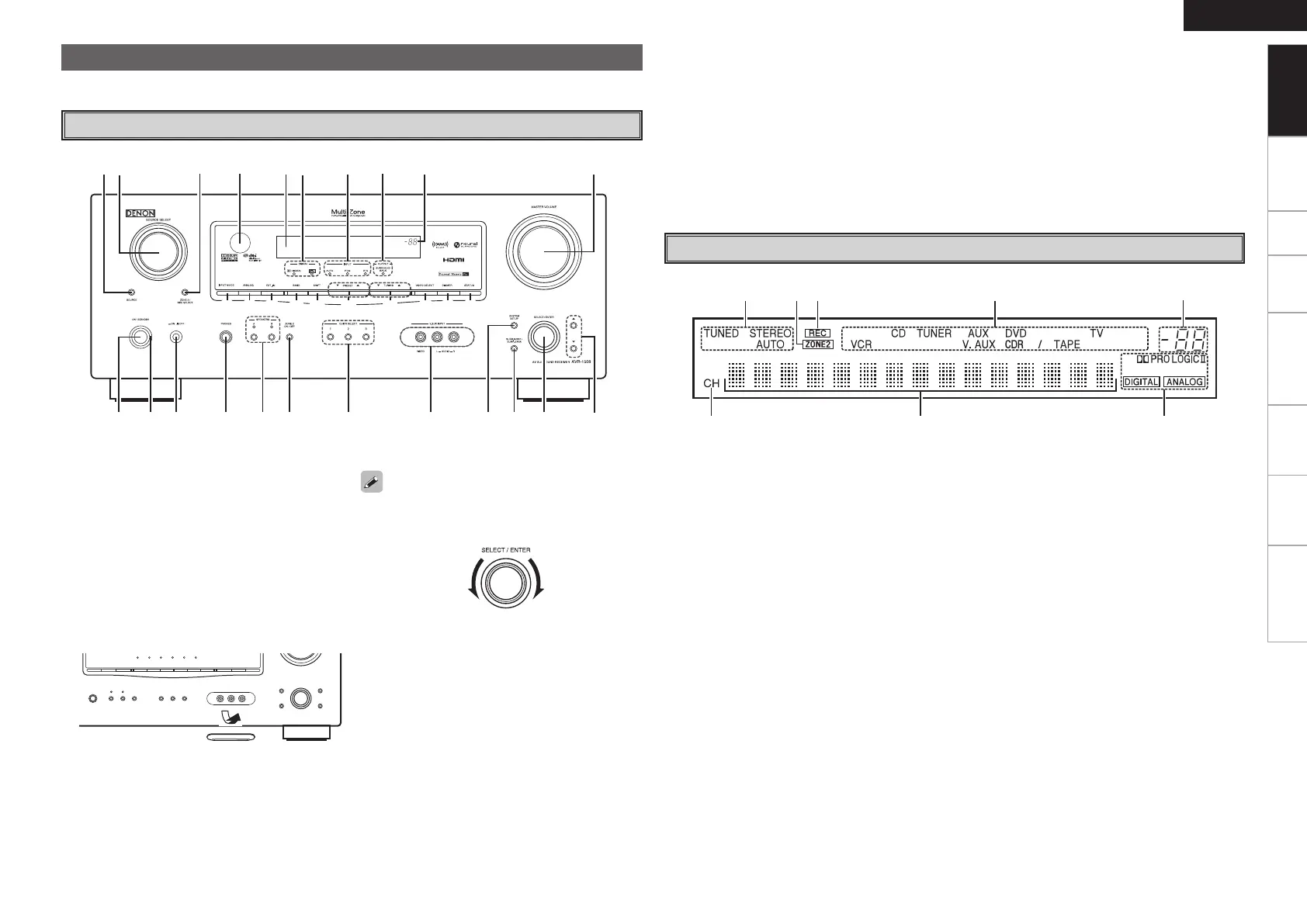

Part Names and Functions
Front Panel
Display

Getting Started Connections Setup Playback Remote Control Multi-Zone Information Troubleshooting
W5 EXT. IN button ············································· (31)
W6 BAND button ··············································· (32)
W7 SHIFT button ··············································· (33)
W8 PRESET CHANNEL buttons ······················· (33)
W9 TUNING buttons ········································· (32)
E0 VIDEO SELECT button ······························· (32)
E1 DIMMER button ·········································· (32)
E2 STATUS button ··········································· (32)
q Power operation button
(ON/STANDBY) ··········································· (31)
w Power indicator ··········································· (31)
e Power switch (hON jOFF) ··············· (31, 38)
r Headphones jack (PHONES) ······················ (32)
t SPEAKER buttons ································· (32, 38)
y ZONE2 ON/OFF button ······························ (44)
u QUICK SELECT buttons ····························· (38)
i V. AUX INPUT connectors
Remove the cap covering the connectors when
you want to use them.
o SYSTEM SETUP button ······························ (19)
Q0 SURR. MODE / SURR. PARA button ········· (27)
Q1 SELECT / ENTER knob ························· (19, 26)
• The SELECT / ENTER knob on the main unit operates
in the same way as the CURSOR o and p buttons
on the remote control unit.
• The control functions in the same way as the
CURSOR o button when turned counterclockwise,
as the CURSOR p button when turned clockwise.
• The control functions in the same way as the
ENTER button when pressed the knob.
Q2 Cursor buttons (ui) ································· (19)
Q3 MASTER VOLUME control knob ················ (31)
Q4 Master volume indicator
Q5 SURROUND BACK indicator
Q6 INPUT mode indicators ······························ (31)
Q7 SIGNAL indicators
Q8 Display
Q9 Remote control sensor ································· (3)
W0 ZONE2 / REC SELECT button ···············(37, 44)
W1 SOURCE SELECT knob······························· (31)
W2 SOURCE button ·········································· (31)
W3 INPUT MODE button ·································· (31)
W4 ANALOG button ·········································· (31)
