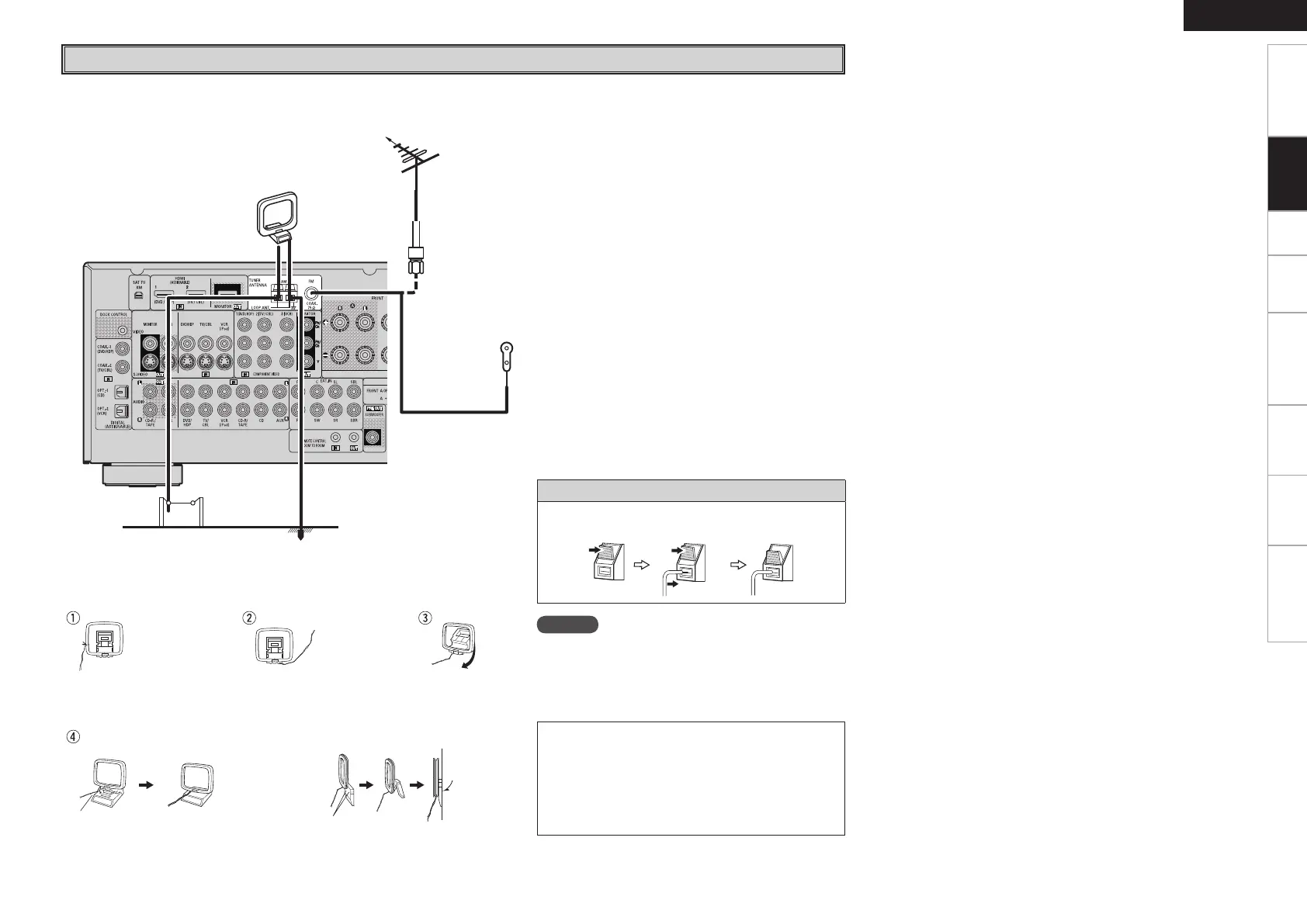

Antenna terminals
An F-type FM antenna cable plug can be connected directly.
Direction of broadcasting station
AM loop antenna
(supplied)
FM antenna
75 Ω/ohms
Coaxial cable
FM indoor antenna
(supplied)
Ground
AM outdoor antenna
Note to CATV system installer:
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC
which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical.
AM loop antenna assembly
Remove the vinyl tie and take
out the connection line.
Connect to the AM
antenna terminals.
Bend in the reverse direction.
a. With the antenna on top of
any stable surface.
Mount
b. With the antenna attached
to a wall.
Installation hole Mount on wall, etc.
Connection of AM antennas
1. Push the
lever.
2. Insert the
conductor.
3. Return the
lever.
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not
disconnect the AM loop antenna.
• Make sure the AM loop antenna lead terminals do not
touch metal parts of the panel.

Denon AVR-1508 Specifications

General

HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
AM/FM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Preset Station Qty	56
HDMI Switching	Yes
Tuning Range	FM: 87.5 - 108 MHz, AM: 522 - 1620 kHz
Audio D/A Converter	24-bit / 192 kHz
Output Impedance / Channel	8 Ohm
Frequency Response	10 Hz - 100 kHz
Channels	7.1
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Output Power / Channel	75W (8 ohms)
