Denon AVR-1509 Owner's Manual


Connections Setup Playback Remote Control Information Troubleshooting
ENGLISH
Specifications

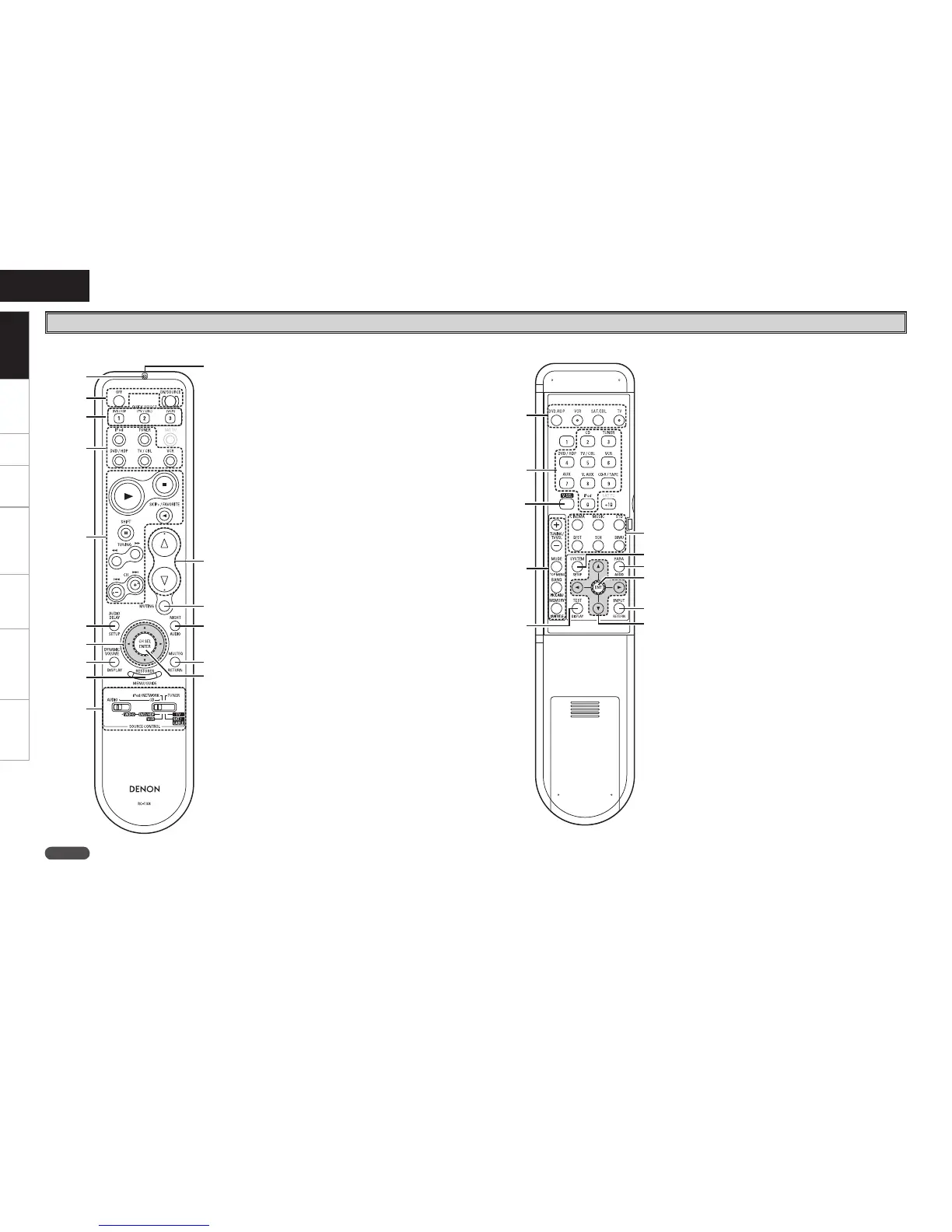

Remote Control Unit
q
y
u
i
o
w
e
r
t
Q0
Q2
Q3
Q4
Q5
Q6
Q1
q Indicator ······················································ (38)
w Power buttons ············································ (30)
e QUICK SELECT buttons ····························· (37)
r Source select buttons ································ (30)
t System buttons ···································· (35, 39)
y AUDIO DELAY button ································ (21)
u Cursor buttons (uio p) ························· (18)
i DYNAMIC VOLUME button ··················(27, 28)
o RESTORER button ······································ (28)
Q0 SOURCE CONTROL switches ···················· (31)
Q1 Remote control signal transmitter
Q2 Master volume control buttons ················ (31)
Q3 MUTING button ·········································· (31)
Q4 NIGHT button ············································· (29)
Q5 MULTEQ button ········································· (27)
Q6 Channel select (CH SEL) /
ENTER button ······································· (18, 36)
q
r
w
t
y
i
Q1
Q0
u
o
e
q Power buttons ······································ (38, 40)
w Source select buttons ································ (30)
e Video select button (V.SEL) ······················ (31)
r Tuner system buttons ·························· (31, 32)
t Test tone button (TEST) ···························· (20)
y Surround mode buttons ················ (23, 24, 26)
u System setup button (SYSTEM) ··············· (18)
i Surround parameter button (PARA) ··· (23, 25)
o Enter button (ENT) ····································· (18)
Q0 Input mode button (INPUT) ······················· (30)
Q1 Cursor buttons (uio p) ························· (18)
NOTE
• The SAT TU button cannot be used.
• If buttons on the front or rear are pressed strongly, the button on the opposite side will be activated too.
[ Front ] [ Rear ]
Getting Started

Denon AVR-1509 Specifications

General

Power Output	75 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Response Bandwidth	10Hz-100kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Tuner Bands	AM/FM
Preset Station Qty	56
HDMI Switching	Yes
Output Impedance / Channel	8 ohms
Frequency Response	10Hz-100kHz
Digital Audio Inputs	2 Optical, 1 Coaxial
Dolby Formats	Dolby Digital, Dolby Pro Logic II
DTS Formats	DTS, DTS Neo:6
Surround Sound Effects	Virtual Surround
Audio D/A Converter	192kHz/24-bit
Output Power / Channel	75 W
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Video Inputs/Outputs	Component video input (2), Component video output (1), Composite video input (4), Composite video output (2)
Analog Audio Inputs/Outputs	4 Analog Audio Inputs, 1 Analog Audio Output
