Denon AVR-1509 Owner's Manual


Getting Started Setup Playback Remote Control Information Troubleshooting
ENGLISH
Specifications

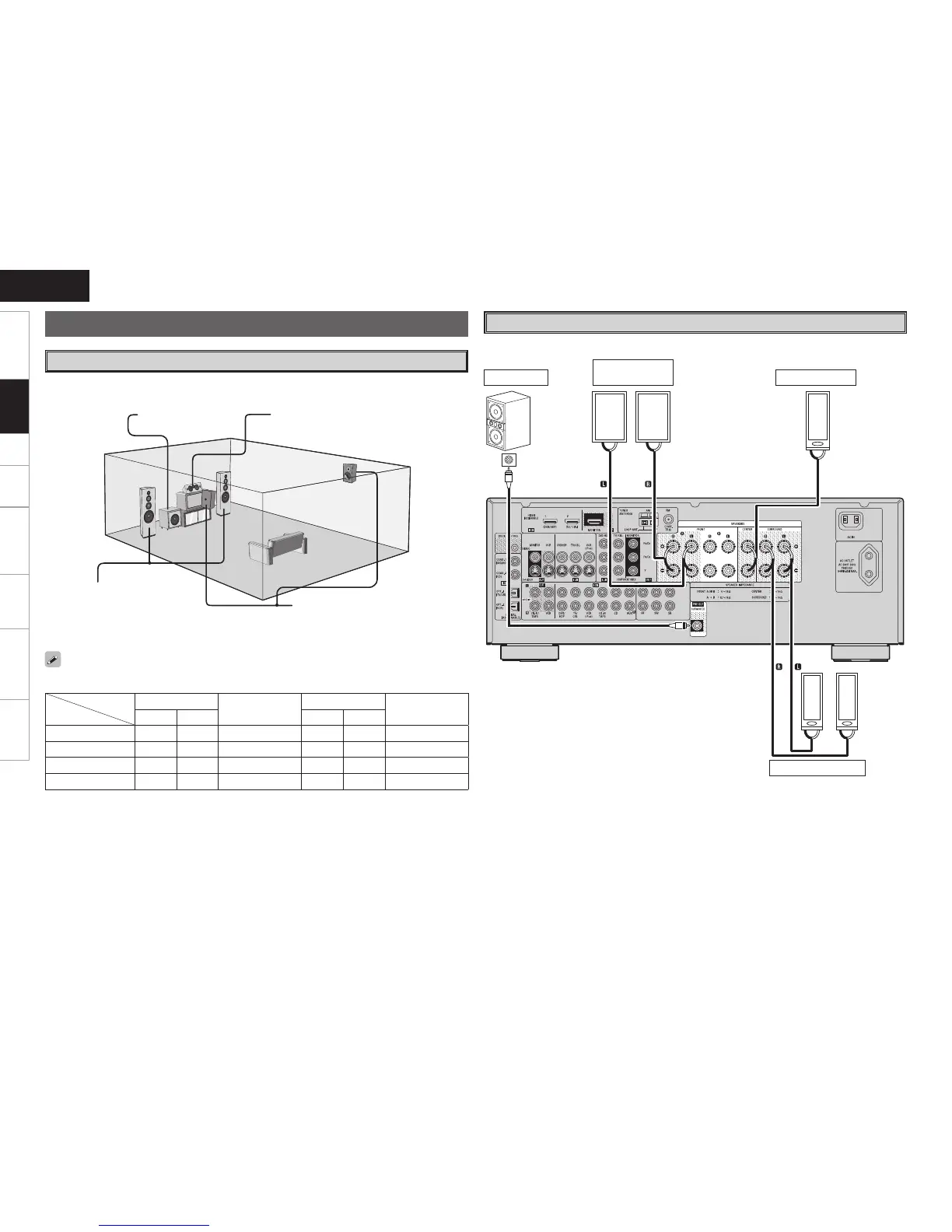

The illustration below shows a basic example of installation of the amplifier combined with 6 speakers and
a monitor.
Speaker Installation
Subwoofer Center speaker
Surround speakers
Front speakers
Place the front speakers to the
sides of the monitor or screen and
as flush with the screen surface as
possible.
The table below shows a typical speaker configuration for the AVR-1509.
FRONT
CENTER
SURROUND
SUBWOOFER
L R L R
5.1-channels
S S S S S S
3.1-channels
S S S
– –
S
2.1-channels
S S
– – –
S
2-channels
S S
– – – –
Speaker Connections
Connections
w q
w q
w q w q
*/
w q
(R)
(L) (R)
(L)
Speaker Connections
Example: 5.1-channels
Front speakers
A
Center speaker
Subwoofer
Subwoofer
with built-in
amplifier
b L : Left
R : Right
Surround speakers

Denon AVR-1509 Specifications

General

Power Output	75 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Response Bandwidth	10Hz-100kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Tuner Bands	AM/FM
Preset Station Qty	56
HDMI Switching	Yes
Output Impedance / Channel	8 ohms
Frequency Response	10Hz-100kHz
Digital Audio Inputs	2 Optical, 1 Coaxial
Dolby Formats	Dolby Digital, Dolby Pro Logic II
DTS Formats	DTS, DTS Neo:6
Surround Sound Effects	Virtual Surround
Audio D/A Converter	192kHz/24-bit
Output Power / Channel	75 W
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Video Inputs/Outputs	Component video input (2), Component video output (1), Composite video input (4), Composite video output (2)
Analog Audio Inputs/Outputs	4 Analog Audio Inputs, 1 Analog Audio Output
