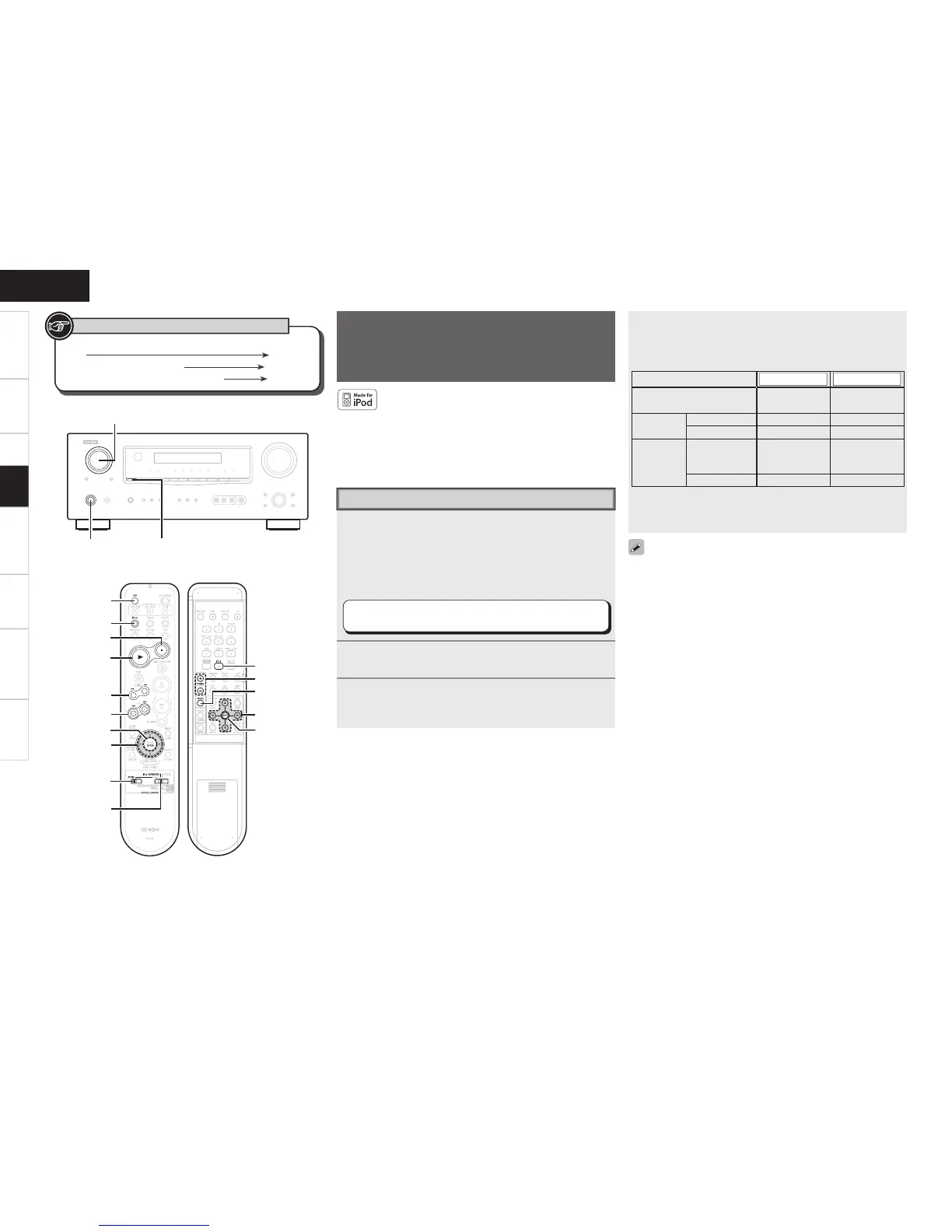

Denon AVR-1509 Owner's Manual

iPod
®
Playback
The music on an iPod can be played by using the control dock for
iPod (ASD-1R, ASD-11R, ASD-3N or ASD-3W, sold separately).
The operation can also be performed using the buttons on the
remote control unit.
iPod is a trademark of Apple Inc., registered in the U.S.
and other countries.
b The iPod may only be used to copy or play contents that are not
copyrighted or contents for which copying or playback is legally
permitted for your private use as an individual. Be sure to comply
with applicable copyright legislation.
4
Press [MODE] and hold it down for a 2 seconds or
more to select the display mode.
To switch between modes, press and hold down the button.
When remote mode is active, “Remote” is displayed.
[Selectable mode]
Browse mode Remote mode
Display location Main unit display iPod display
Playable
files
Audio file
S S
Video file
S
z
1
S
z
2
Active
buttons
Remote
control unit
(AVR-1509)
S S
iPod
A S
z
1
: When using an ASD-3N or ASD-3W control dock for iPod.
z
2
: Video may not be output, depending on the combination of
ASD-1R or ASD-11R and iPod.
• With the default settings, the iPod can be used connected to the
VCR (iPod) connector.
• Use the RESTORER mode to expand the low and high frequency
components of compressed audio fi les and achieve a richer sound.
The default setting is “Mode3” (vpage 28).
• Press <ON/STANDBY> or [OFF] and set the AVR-1509’s power to
the standby mode before disconnecting the iPod. Also switch the
input source to one to which “iPod Assign” is not assigned before
disconnecting the iPod.
• When using an ASD-3N or ASD-3W control dock for iPod, refer to
the respective manual to operate.
1
Make the necessary preparations.
q Set the iPod in the DENON control dock for iPod.
(vSee the control dock for iPod’s operating instructions.)
w Assign the control dock for iPod’s input.
The input for the control dock for iPod is assigned to VCR by
default.
“System Setup” – “Input Setup” – “iPod Assign”
(vpage 21)
2
Either turn <SOURCE SELECT> or press [iPod] to
select the input source assigned in step 1-w above.
3
Set [SOURCE CONTROL 1] to “AUDIO” and [SOURCE
CONTROL 2] to “iPod/NETWORK”.
(v page 38 “Remote Control Unit Operations”)
Preparations

Getting Started Connections Setup Playback Remote Control Information Troubleshooting
ENGLISH
Specifi cations
<SOURCE SELECT>
<STATUS><ON/STANDBY>
[iPod]
[SOURCE
CONTROL 1]
[SOURCE
CONTROL 2]
[8], [9]
[6], [7]
[2]
[1]
[ENTER]
[uip]
[OFF]
[iPod]
[MODE]
[ENTER]
[TUNING + –]
[uip]
[Front] [Rear]
Button located on both the main unit and the remote control
unit BUTTON
Button only on the main unit <BUTTON>
Button only on the remote control unit [BUTTON]
Symbols used to indicate buttons in this manual

Denon AVR-1509 Specifications

General

Power Output	75 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Response Bandwidth	10Hz-100kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Tuner Bands	AM/FM
Preset Station Qty	56
HDMI Switching	Yes
Output Impedance / Channel	8 ohms
Frequency Response	10Hz-100kHz
Digital Audio Inputs	2 Optical, 1 Coaxial
Dolby Formats	Dolby Digital, Dolby Pro Logic II
DTS Formats	DTS, DTS Neo:6
Surround Sound Effects	Virtual Surround
Audio D/A Converter	192kHz/24-bit
Output Power / Channel	75 W
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Video Inputs/Outputs	Component video input (2), Component video output (1), Composite video input (4), Composite video output (2)
Analog Audio Inputs/Outputs	4 Analog Audio Inputs, 1 Analog Audio Output
