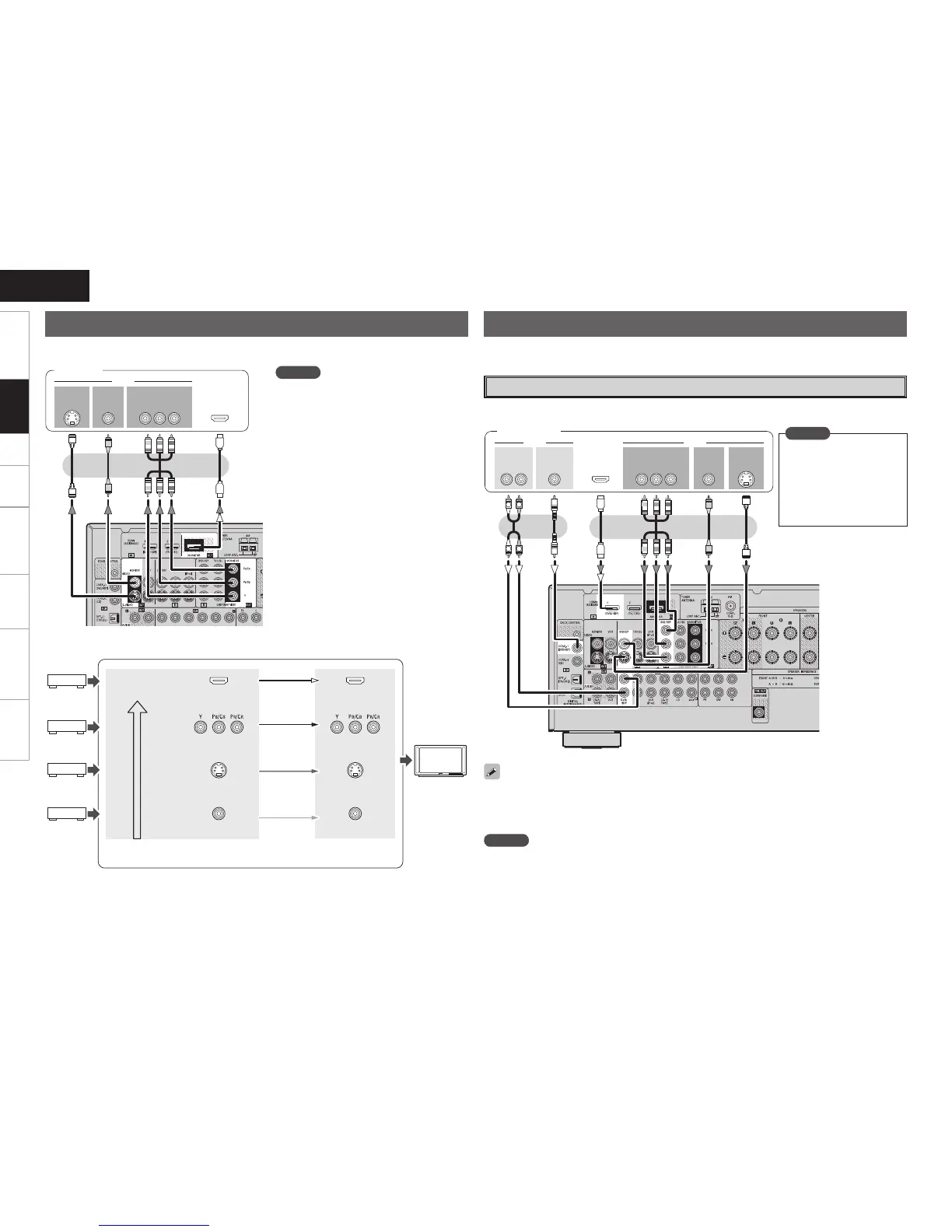

Select the terminal to use and connect the device.
47*%&0
*/
7*%&0
$0.10/&/57*%&0
: 1# 13
7*%&0
*/
)%.*
*/ */
Monitor
Connecting the Monitor
NOTE
• The AVR-1509 supports four video input
formats: HDMI, component video, S-video and
video.
Because video signals are output from the
AVR-1509’s monitor output terminal in the
same format as the video input signals, the
monitor output terminal should be of the
same type as the terminal used for input.
• The component video connectors may
be indicated differently on your monitor.
For details, see the monitor’s operating
instructions.
• To play the sound by AVR-1509, make analog
or digital audio output connections to AVR-
1509’s audio input connectors.
GFlow of video signals inside the AVR-1509H
High picture
quality playback
HDMI connector
Component video
connectors
S-Video connector
Video connector
Monitor
HDMI connector
Component video
connectors
S-Video connector
Video connector
Video input terminals Monitor output
terminals
Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.
Connecting the Playback Components
DVD Player
Select the terminal to use and connect the device.
DVD player
• The same method can be used to connect an HDP (High-Definition Player) such as a Blu-ray Disc
player.
• When using an optical cable for the digital audio connection, make the settings at “System Setup”
– “Input Setup” – “Digital In Assign” (vpage 21).
NOTE
The audio signal input to
the HDMI input connector
cannot be played on the
AVR-1509. Input the audio
signal to the digital audio
input connector or analog
audio input connector.
NOTE
Because video signals are output from the AVR-1509’s monitor output terminal in the same format as the
video input signals, the monitor output terminal should be of the same type as the terminal used for
input.
0
Getting Started Connections Setup Playback Remote Control Information Troubleshooting
ENGLISH
Specifications

Denon AVR-1509 Specifications

General

Power Output	75 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Response Bandwidth	10Hz-100kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Tuner Bands	AM/FM
Preset Station Qty	56
HDMI Switching	Yes
Output Impedance / Channel	8 ohms
Frequency Response	10Hz-100kHz
Digital Audio Inputs	2 Optical, 1 Coaxial
Dolby Formats	Dolby Digital, Dolby Pro Logic II
DTS Formats	DTS, DTS Neo:6
Surround Sound Effects	Virtual Surround
Audio D/A Converter	192kHz/24-bit
Output Power / Channel	75 W
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Video Inputs/Outputs	Component video input (2), Component video output (1), Composite video input (4), Composite video output (2)
Analog Audio Inputs/Outputs	4 Analog Audio Inputs, 1 Analog Audio Output
