Getting Started Setup Playback Remote Control Information Troubleshooting
ENGLISH
Specifications
Audio cables Video cables
Coaxial digital connections
(Orange)
Coaxial digital (75 Ω/ohms pin-plug) cable
Optical digital connections
Optical cable
Analog connections (stereo)
(White)
(Red)
R
L
R
L
Stereo pin-plug cable
Analog connections (monaural, for subwoofer)
(Black)
Pin-plug cable
Speaker connections
Speaker cables
Component video connections
(Green)
(Blue)
(Red)
(Y)
(PB/CB)
(PR/CR)
Component video cable
S-Video connections
S-Video cable
Video connections
(Yellow)
75 Ω/ohms pin-plug video cable
Audio and video cables
HDMI connections
19-pin HDMI cable
Signal direction
Audio signal: Video signal:
Output
Input
Input
Output
Output
Input
Input
Output

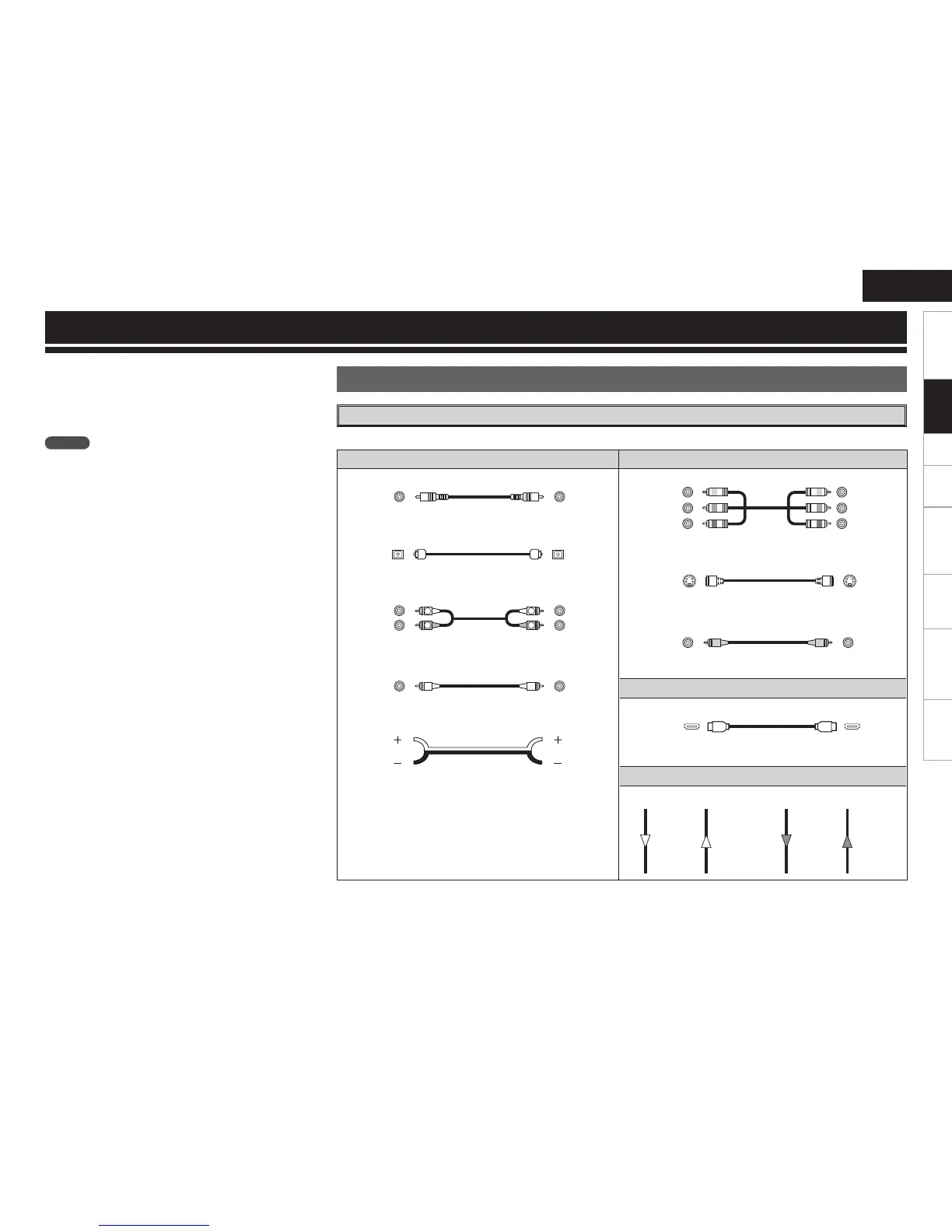

Cables Used for Connections
Select the cables according to the equipment being connected.
Preparations
Connections
NOTE
Do not plug in the power cord until all connections have been
completed.
When making connections, also refer to the operating instructions of
the other components.
Be sure to connect the left and right channels properly (left with left,
right with right).
Do not bundle power cords together with connection cables. Doing
so can result in humming or noise.
Connections for all compatible audio and video signal formats
are described in this owner’s manual. Please select the types of
connections suited for the equipment you are connecting.
With some types of connections, certain settings must be made
on the AVR-1509. For details, refer to the instructions for the
respective connection items below.
Connections

Table of Contents

Other manuals for Denon AVR-1509

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Denon AVR-1509 and is the answer not in the manual?

Denon AVR-1509 Specifications

General IconGeneral
Power Output75 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Number of Channels5.1
HDMI Inputs2
HDMI Outputs1
Response Bandwidth10Hz-100kHz
Signal-To-Noise Ratio98 dB
Total Harmonic Distortion0.08%
Input Impedance47 kOhm
Input Sensitivity200 mV
Tuner TypeDigital
Tuner BandsAM/FM
Preset Station Qty56
HDMI SwitchingYes
Output Impedance / Channel8 ohms
Frequency Response10Hz-100kHz
Digital Audio Inputs2 Optical, 1 Coaxial
Dolby FormatsDolby Digital, Dolby Pro Logic II
DTS FormatsDTS, DTS Neo:6
Surround Sound EffectsVirtual Surround
Audio D/A Converter192kHz/24-bit
Output Power / Channel75 W
Tuner Frequency RangeFM: 87.5-108 MHz, AM: 522-1611 kHz
Video Inputs/OutputsComponent video input (2), Component video output (1), Composite video input (4), Composite video output (2)
Analog Audio Inputs/Outputs4 Analog Audio Inputs, 1 Analog Audio Output
