Denon AVR-1509 Owner's Manual

"6%*0
"6%*0
3-
065065
$0"9*"-
R
L
R
L
CD Player

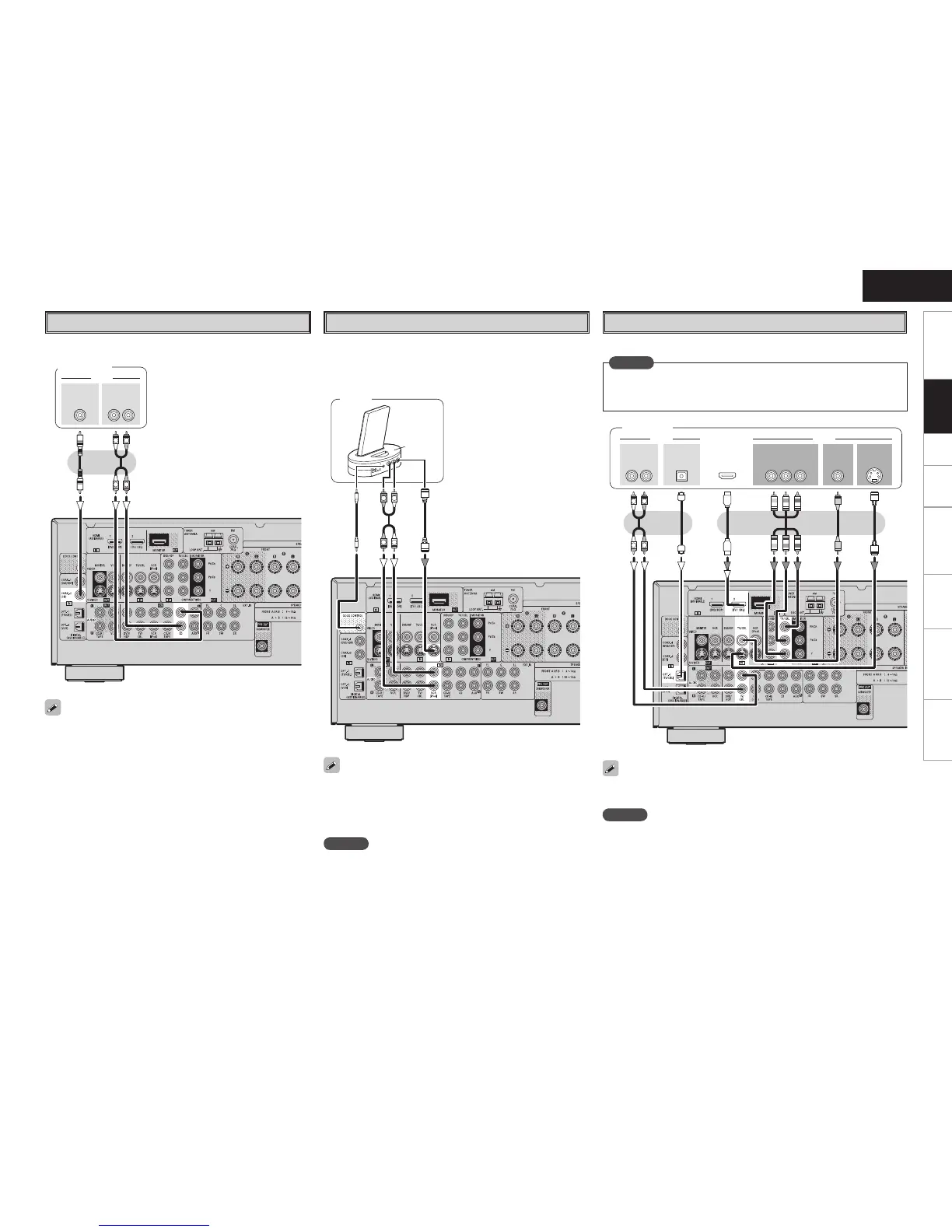

Select the terminal to use and connect the device.
CD player
When using an optical cable for the digital audio connection, make
the settings at “System Setup” – “Input Setup” – “Digital In
Assign” (vpage 21).
iPod
®
"4%/8
R
L
R
L
iPod
• With the default settings, the iPod can be used connected to the
VCR (iPod) connector.
• To assign the iPod to a connector other than VCR (iPod), make
the settings at “System Setup” – “Input Setup” – “iPod Assign”
(vpage 21).
Use a DENON control dock for iPod (ASD-1R, ASD-11R, ASD-3N
or ASD-3W, sold separately) to connect the iPod to the AVR-1509.
For instructions on the control dock for iPod settings, refer to the
control dock for iPod’s operating instructions.
47*%&0
065
"6%*0 7*%&0
$0.10/&/57*%&0
: 1# 13
7*%&0
065065
"6%*0
3-
065 065
)%.*
015*$"-
065
R
L
R
L
TV/CABLE Tuner
Select the terminal to use and connect the device.
TV tuner
When using a coaxial cable for the digital audio connection, make the settings
at “System Setup” – “Input Setup” – “Digital In Assign” (vpage 21).
NOTE
The audio signal input to the HDMI input connector cannot be
played on the AVR-1509. Input the audio signal to the digital audio input
connector or analog audio input connector.
NOTE
Because video signals are output from the AVR-1509’s monitor output
terminal in the same format as the video input signals, the monitor output
terminal should be of the same type as the terminal used for input.

Getting Started Connections Setup Playback Remote Control Information Troubleshooting
ENGLISH
Specifications
NOTE
To playback iPod Video or Photos on a TV monitor, connect
the TV to the S-Video Out terminal of AVR-1509.
