Denon AVR-1509 Owner's Manual


Connections Setup Playback Remote Control Information Troubleshooting
ENGLISH
Specifications
uoQ1 iQ0
Q2
yq
w
t
e r

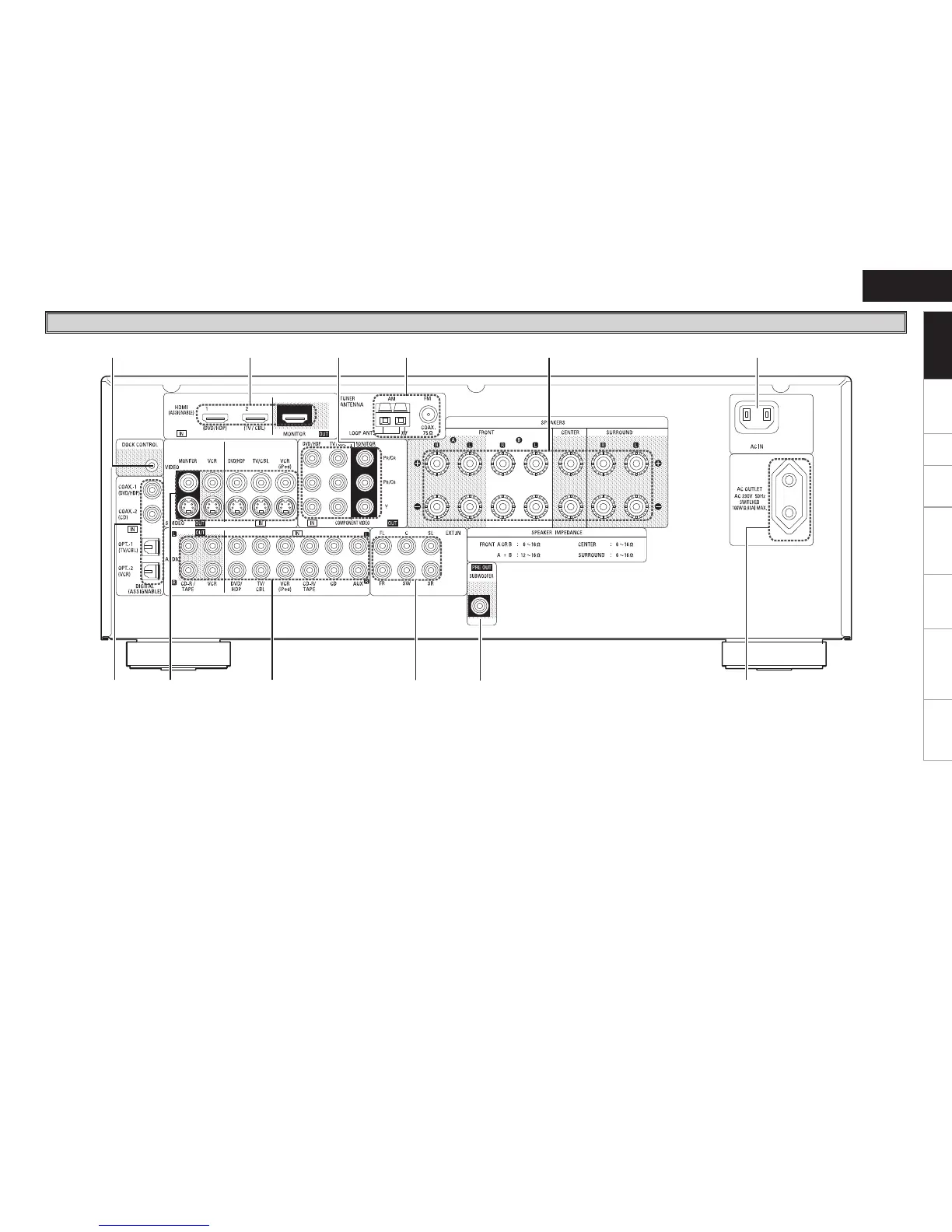

Rear Panel
Getting Started
q Digital audio connectors
(OPTICAL / COAXIAL) ·························· (9 ~ 11)
w VIDEO / S-VIDEO connectors ············ (10 ~ 12)
e Analog audio connectors
(AUDIO) ·················································(9 ~ 12)
r EXT. IN connectors ····································· (13)
t PRE OUT connector ······································ (8)
y AC OUTLET ················································· (14)
u AC inlet (AC IN) ··········································· (14)
i Speaker terminals (SPEAKERS) ·················· (8)
o FM/AM antenna terminals
(TUNER ANTENNA) ···································· (13)
Q0 COMPONENT VIDEO connectors ·········(10, 11)
Q1 HDMI connectors ·································· (9 ~ 11)
Q2 DOCK CONTROL jack ··································(11)

Denon AVR-1509 Specifications

General

Power Output	75 W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Response Bandwidth	10Hz-100kHz
Signal-To-Noise Ratio	98 dB
Total Harmonic Distortion	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Tuner Bands	AM/FM
Preset Station Qty	56
HDMI Switching	Yes
Output Impedance / Channel	8 ohms
Frequency Response	10Hz-100kHz
Digital Audio Inputs	2 Optical, 1 Coaxial
Dolby Formats	Dolby Digital, Dolby Pro Logic II
DTS Formats	DTS, DTS Neo:6
Surround Sound Effects	Virtual Surround
Audio D/A Converter	192kHz/24-bit
Output Power / Channel	75 W
Tuner Frequency Range	FM: 87.5-108 MHz, AM: 522-1611 kHz
Video Inputs/Outputs	Component video input (2), Component video output (1), Composite video input (4), Composite video output (2)
Analog Audio Inputs/Outputs	4 Analog Audio Inputs, 1 Analog Audio Output
