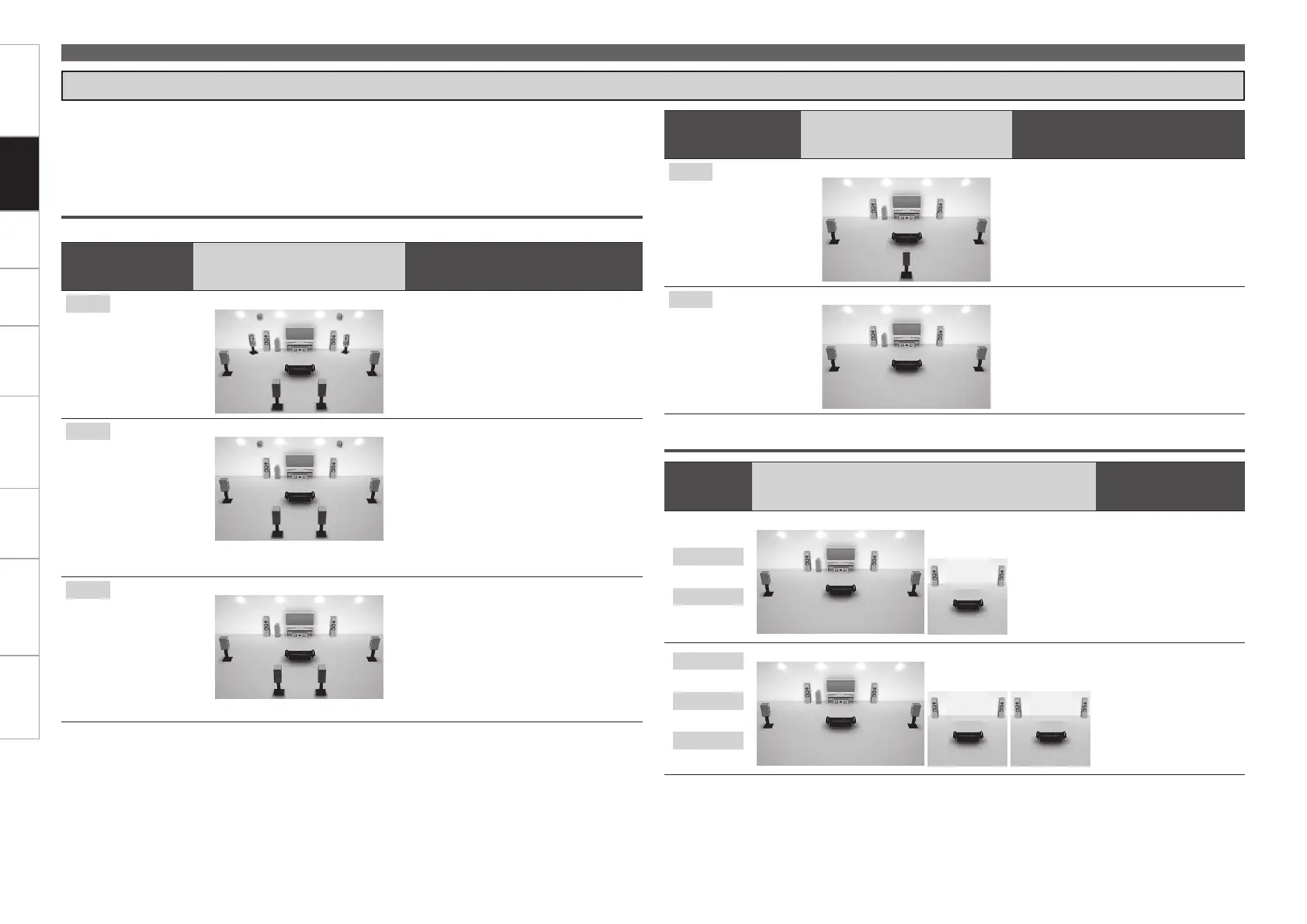

s Example Installation of Speakers
The AVR-4810CI supports a wide variation of surround playback such as in the example speaker installations
shown below (11.1/9.1/7.1/6.1/5.1ch). It is also possible to have speaker output in rooms other than the
room (MAIN ZONE) where the surround is playing (multi-zone playback), or to enjoy the high quality sound
of the MAIN ZONE front speakers (using bi-wiring/bi-amping). Set “Amp Assign” as appropriate for the
speaker system being used. See page 14 for more information on speaker connections.
Speaker system Example of speaker installation
“Amp Assign” setting
(vpage 39 ~ 41)
11.1ch
5.1ch+SB+FH+FW•
MAIN ZONE
• Set “Configuration” to “11.1ch”.
b Use the PRE OUT terminal for the front
wide channel output.
9.1ch
5.1ch+SB+FH
or
5.1ch+SB+FW
or
5.1ch+FH+FW
•
•
•
MAIN ZONE
(Example of 5.1ch+SB+FH
installation)
• Set “Configuration” to “9.1ch”.
• Set “Extra Channel (SB/FH/FW)” to be
used.
7.1ch
5.1ch+SB
or
5.1ch+FH
or
5.1ch+FW
•
•
•
MAIN ZONE
(Example of 5.1ch+SB installation)
• Set “Configuration” to “7.1ch”.
• Set “Extra Channel (SB/FH/FW)” to be
used.
Installing the Speakers
Example of Speaker Installation in MAIN ZONE
(SB : Surrond Back / FH : Front Height / FW : Front wide)
Multi-zone
speaker
system
Example of speaker installation
“Amp Assign” setting
(vpage 39 ~ 41)
MAIN ZONE
+
ZONE2
MAIN ZONE ZONE2
• Set “Assign Mode” to
“+Z2”.
b Connect speakers to
the ZONE2 speaker
terminals.
MAIN ZONE
+
ZONE2
+
ZONE3
(Default)
MAIN ZONE ZONE2 ZONE3
• Set “Assign Mode” to
“+Z2+Z3”.
b Connect speakers to
the ZONE2 and ZONE3
speaker terminals.
When using speaker terminals for multi-zone (ZONE2/ZONE3)
Speaker system Example of speaker installation
“Amp Assign” setting
(vpage 39 ~ 41)
6.1ch
5.1ch+SB (1 speaker)•
MAIN ZONE
• Set “Configuration” to “7.1ch”.
• Set “Extra Channel” to “SB”.
b Connect the surround back speaker to
Lch on the S.BACK terminal.
b In the GUI menu, set “Speaker
Configuration” – “Surround Back” to
“1spkr” (vpage 41).
5.1ch
MAIN ZONE
• Set “Configuration” to “5.1ch”.
