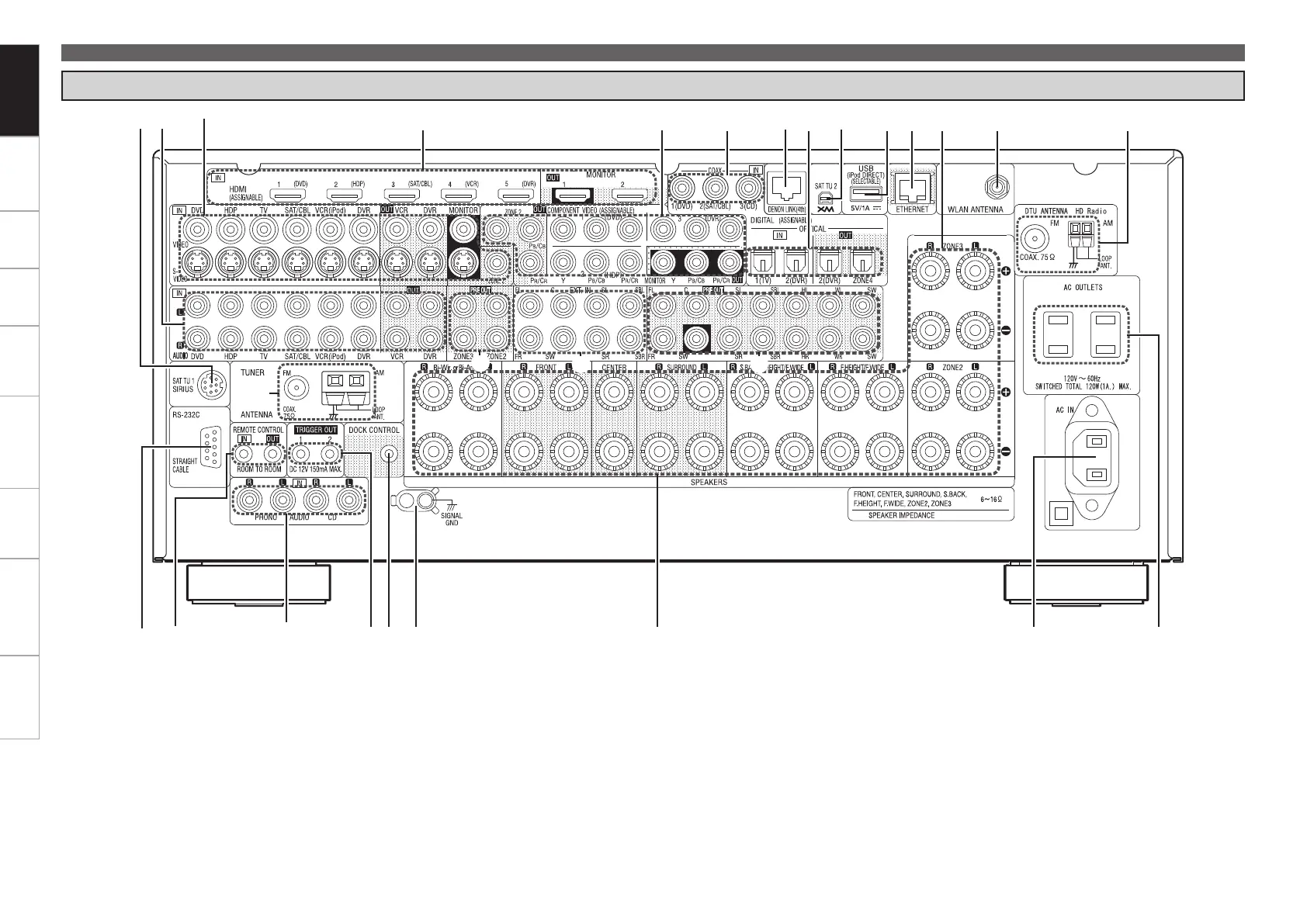

Part Names and Functions
q RS-232C connector ····································· (26)
w REMOTE CONTROL jacks ·························· (26)
e Analog audio connectors ···················(18 ~ 21)
r TRIGGER OUT jacks ··································· (26)
t DOCK CONTROL jack ································· (19)
y SIGNAL GND terminal ······························· (19)
u Speaker terminals ······························ (14 ~ 16)
i AC inlet ························································ (28)
o AC OUTLETS ··············································· (28)
Q0 HD Radio antenna terminals ····················· (23)
Q1 WLAN ANTENNA terminal ························ (27)
Q2 ETHERNET connector ································ (26)
Q3 USB (iPod DIRECT) port ····························· (24)
Q4 XM connector ············································· (21)
Q5 Digital audio connectors ····················(18 ~ 24)
Q6 DENON LINK connector ····························· (23)
Q7 COMPONENT VIDEO connectors ········ (18, 20)
Q8 HDMI connectors ········································ (17)
Q9 VIDEO / S-VIDEO connectors ············(18 ~ 21)
W0 SIRIUS connector ······································· (22)
W1 FM/AM antenna terminals ························ (22)
W2 PRE OUT connectors ·························· (25, 105)
W3 EXT. IN connectors ····································· (25)
