Getting Started Connections Settings Playback Remote ControlMulti-zone Information Troubleshooting SpecificationsGetting Started
uiQ4
Q8
W0W1 oQ0
Q5
Q1Q2
Q3
Q6Q7Q9 y
wq e r t
q Input signal indicators
w Input signal channel indicators
These light when digital signals are input.
When playing HD Audio sources, the“ ”
indicator lights when an extension channel (a
channel other than the front, center, surround,
surround back or LFE channel) is input. If there
are two or more extension channels, the “ ”
and “ ” indicators light.
e Information display
The input source name, surround mode, setting
values and other information are displayed here.
r Output signal channel indicators
t Monitor output indicators
These light according to the HDMI monitor output
setting (vpage 43 “Monitor Out”). When set
to “Auto (Dual)”, the indicators light according to
the connection status.
y QUICK SELECT indicators
u Master volume indicator
i MUTE indicator
This lights when the mute mode is selected
(vpage 85).
o RESTORER indicator
This lights when the RESTORER mode is
selected (vpage 94).
Q0 PARTY indicators
These indicators light during party mode
(vpage 101 “Playing the Same Network Audio
on Different Devices Connected in a Network
(Party Mode Function)”).
• ORGANIZER
This lights to indicate that party mode has
started as Organizer.
• ATTENDEE
This lights to indicate that party mode has
started as Attendee.
Q1 AUDYSSEY MULTEQ XT indicators
Lighting is as follows, depending on the setting
of “Dynamic EQ” (vpage 92) and “Dynamic
Volume” (vpage 93).
•
: When “Dynamic EQ” and “Dynamic
Volume” are “ON”.
•
: When the “Dynamic EQ” setting is
“ON” and the “Dynamic Volume”
setting is “OFF”.
•
: When “Dynamic EQ” and “Dynamic
Volume” are “OFF”.
Q2 SLEEP indicator
This lights when the sleep mode is selected
(vpage 100).
Q3 Multi zone indicators
These light when the power for the respective
zone is turned on.

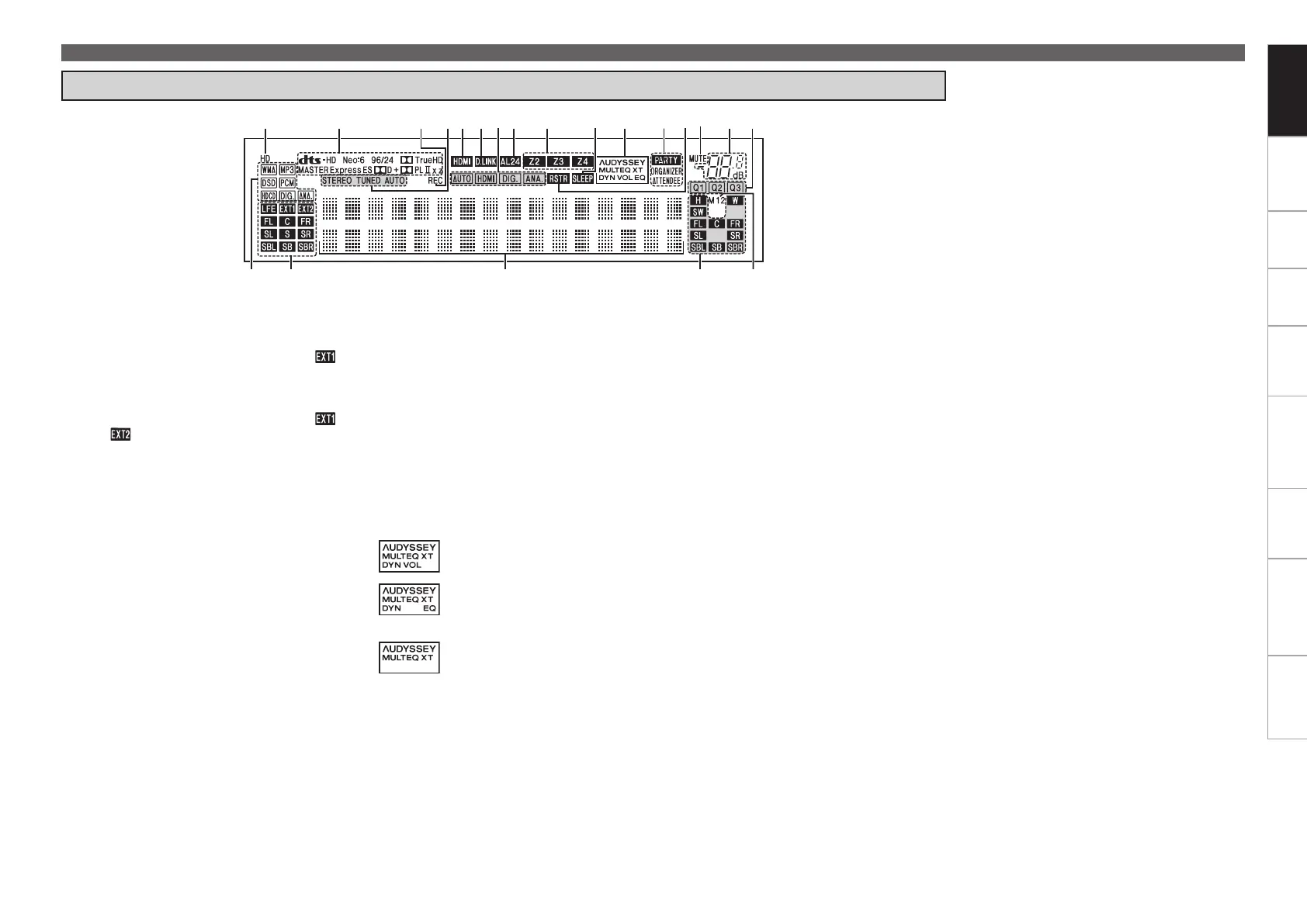

Display
Q4 Advanced AL24 indicator
This lights when Advanced AL24 Processing
(vpage 122) or AL 24 Processing Plus
(vpage 122) is activated.
Q5 Input mode indicators
Q6 D.LINK indicator
This lights when playing using DENON LINK
connections (vpage 98 “Playing Super Audio
CD”).
Q7 HDMI indicator
This lights when playing using HDMI connections.
Q8 Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “TUNER” or
“HD Radio”.
• STEREO
In the FM mode, these light when receiving analog
stereo broadcasts.
• TUNED
Lights when the broadcast is properly tuned in.
• AUTO
These light when in the auto tuning mode.
Q9 Recording output source indicator
This lights when the REC OUT mode is selected
(vpage 98).
W0 Decoder indicators
These light when the respective decoders are
operating.
W1 HD indicator
This lights during HD Radio reception.
Part Names and Functions
Getting Started
