Getting Started Connections Settings Playback Remote ControlMulti-zone Information Troubleshooting SpecificationsConnections
$
'- '3
."*/;0/&
;0/&;0/&
- 3
- 3
4-
43
Speaker Connections
NOTE
Connect so that the speaker cable core wires do not protrude from
the speaker terminal. The protection circuit may be activated if the
core wires touch the rear panel or if the + and – sides touch each
other (v“Protection Circuit”).
Never touch the speaker terminals while the power supply is
connected. Doing so could result in electric shock.
•
•
When using a banana plug
Tighten the speaker terminal firmly before
inserting the banana plug.
n
1
Peel off about 0.03 ft/10 mm of sheathing
from the tip of the speaker cable, then
either twist the core wire tightly or
terminate it.
2
Turn the speaker terminal
counterclockwise to loosen it.
3
Insert the speaker cable’s core wire to
the hilt into the speaker terminal.
Protection Circuit
If the core wires touch the rear panel and the screws etc., or the ±
sides touch each other, the protection circuit will be activated and the
power indicator will flash red at intervals of 0.5 secs.
If the protection circuit is activated, the speaker output is isolated, and
the power supply goes to the standby state. If the power supply is
turned off, after the power supply cord is withdrawn, please confirm
that speaker cable and input cable are connected.
Also, if replaying large sound levels by using a speaker having an
impedance less than that specified (eg, 4 Ω/ohms), the temperature
will rise, and the protection circuit might be activated. The power
supply will go into the standby state, and the power indicator will flash
red at 2 second intervals.
In this case, please switch off the power supply, and wait until the
AVR-4810CI has cooled down, and the surrounding ventilation is
good.
Even if there are no problems with the surrounding ventilation and
connections, in the event of the protection circuit becoming activated,
due to thinking that the AVR-4810CI has failed, please contact DENON
Service center after switching off.
Connecting the Speaker Cables
Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to the AVR-4810CI, and
be sure to interconnect the channels and polarities correctly.
NOTE
Connect so that the speaker cable core wires do not protrude from
the speaker terminal. The protection circuit may be activated if the
core wires touch the rear panel or if the + and – sides touch each
other (v“Protection Circuit”).
Never touch the speaker terminals while the power supply is
connected. Doing so could result in electric shock.
•
•
Use speakers where one speaker has an impedance of 6 ~ 16 Ω/
ohms. When using a speaker with impedance of 6 Ω/ohms to 8 Ω/
ohms, make sure to set the “Speaker Impedance” in the GUI menu
to “6 Ω/ohms”.
When using a banana plug
Tighten the speaker terminal firmly before
inserting the banana plug.
n

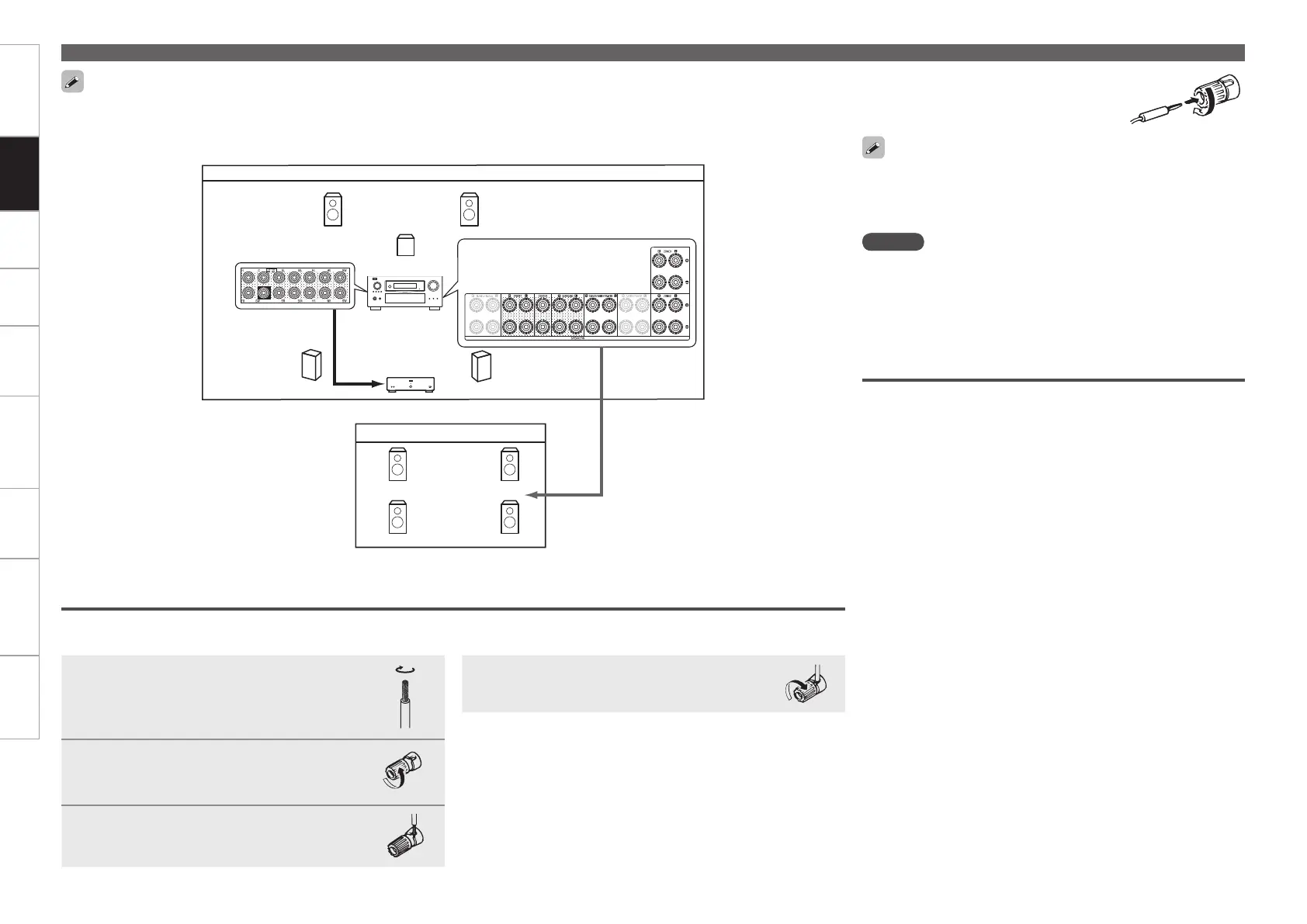

When the “Assign Mode” is set to “ALL Z2” or “ALL Z3”, only multi-zone audio is output from the AVR-4810CI speaker terminals.
For output in the MAIN ZONE, connect the output from the AVR-4810CI pre-out terminal to the power amp in the other room.
4
Turn the speaker terminal clockwise to
tighten it.
AVR-4810CI
Power amplifier
To Next Page
