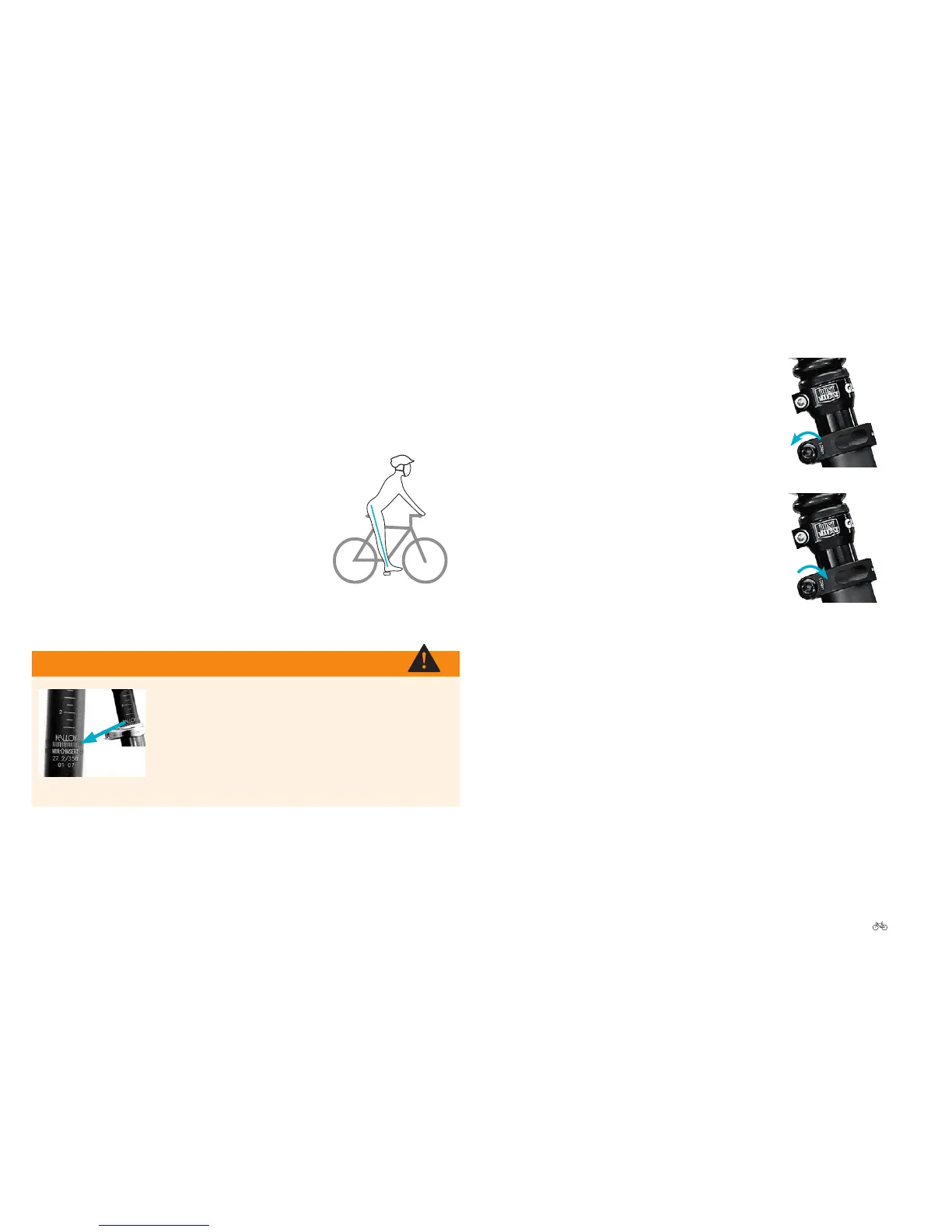

3.2 Adjusting the saddle height
3.2.1 Determining the correct saddle height
1. Sit on the pedelec and at the same time lean against a wall.
2. Turn the foot pedal on the opposite side to the wall to its lowest point.
3. If your leg is not fully extended when your
heel is on the pedal, raise the saddle. Lower
the saddle if you cannot reach the pedal. The
following sections explain how to adjust the
saddle height on your bike. The seatpost can
be fastened using the saddle clamp 3.2.2
Adjusting the saddle height: Saddle clamp(s)*
Page EN-17 or quick-release lever 3.2.3
Adjusting the saddle height: Quick-release
skewer* Page EN-18.
WARNING
Seatpost marking
The seatpost is marked to indicate how far you
may pull it out from the frame. Never pull the
seatpost further out than the marking. This could
cause it to bend or break, and cause you to fall.
3.2.2 Adjusting the saddle height: Saddle clamp(s)
*
1. Undo the saddle clamp(s) by turning it/
them anticlockwise with an Allen key.
2. Move the seatpost into the right
position.
3. Tighten the saddle clamp(s) again
by turning it/them clockwise 12.
Torque settings Page EN-103.
4. Test the tightness of the saddle by
trying to move it.
