Original User Guide | Pedelec Impulse Evo / Impulse Evo Next Version 4 EN-93

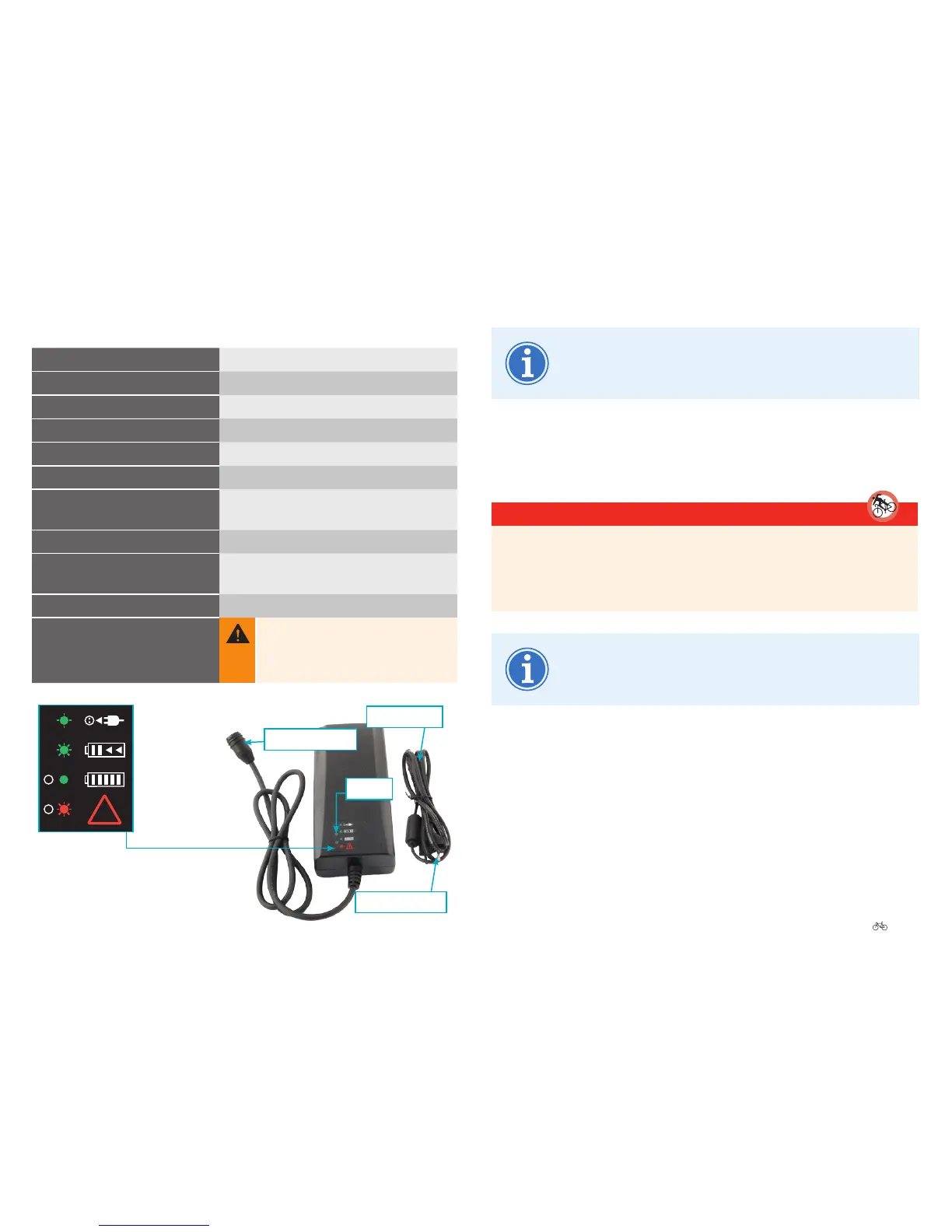

Charger type 2
Battery voltage
36 V
AC input voltage
230 - 240 V
Frequency
50 - 60 Hz
Max. DC output voltage
42 V
Max. charge current
4 A
Dimensions ( L | W | H )
206 mm | 94 mm | 61 mm
Permitted ambient temperature
range during charging
0to+40˚C
Storage temperature
-10to+50˚C
Recommended storage
temperature
18to23˚C
Weight
753g
Protection class
The charger is only intended to be used
indoors. Keep the charger away from rain
and moisture. Water penetrating into the
charger poses a risk of electric shock.
LEDs
Mains connector
Charging cable
Power cable
!
Charger connected to
power supply
|greenLEDashes
Battery being charged
|greenLEDashes
Fully charged
| green LED continually ON
Charging fault
|redLEDashes
Description of
charging indicator
The charging display symbols can vary. If you are not sure
what the symbols mean, contact your cycle dealer.
10.3 Functions
10.3.1 Charging a battery
DANGER
Readandfollowtheinformationonthechargerspecicationplate,
otherwise there is a risk of misuse resulting in serious injuries.
Damaged batteries must not be charged.
The battery can remain on the pedelec during the charging
process. It can also be removed and charged elsewhere.
Charging the battery with charger type 1
1. Remove the protective cap on the battery.
2. Connect the charger plug to the battery (it clicks into place).
3. Insert the mains plug into a power socket.
