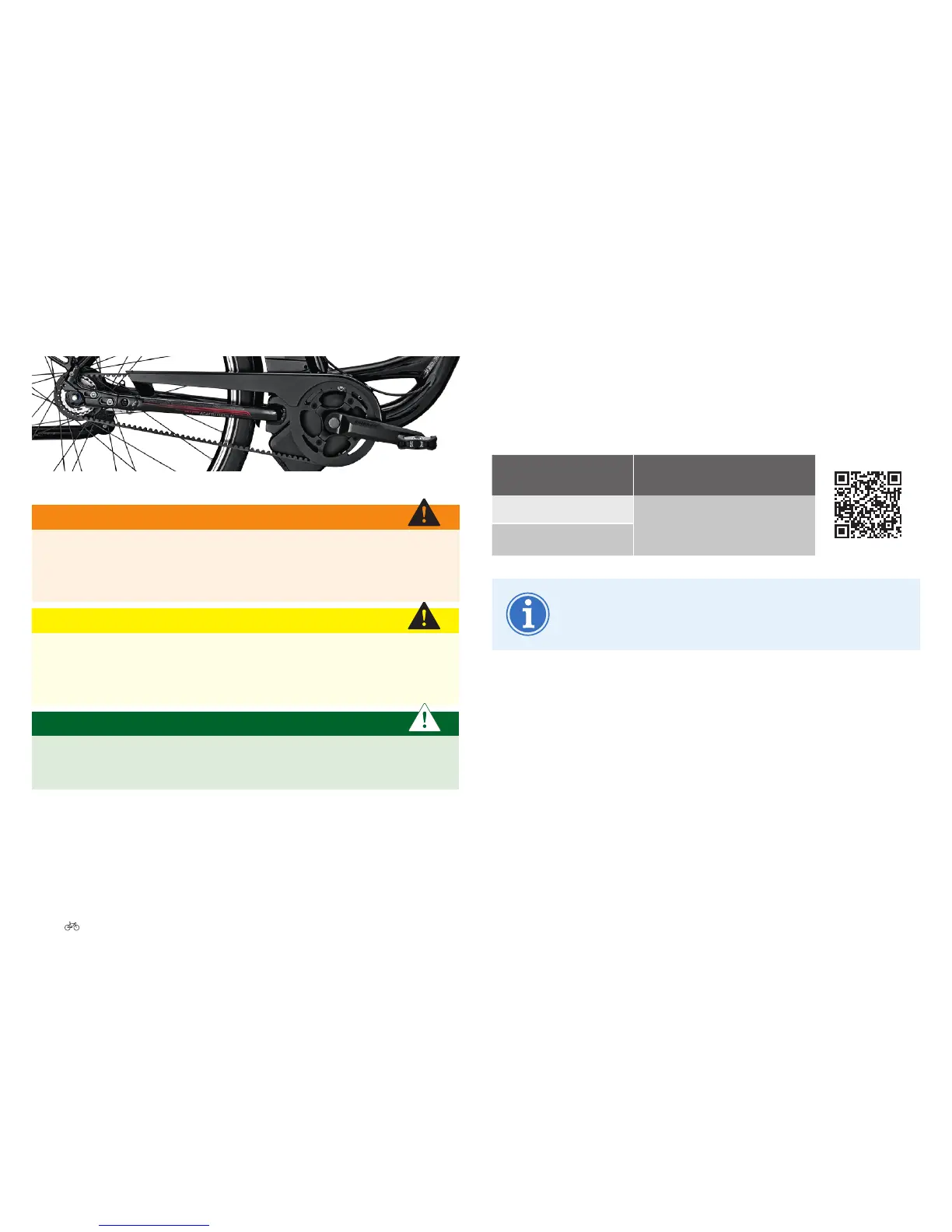

EN-24 Original User Guide | Pedelec Impulse Evo / Impulse Evo Next Version 4
3.9 Belt*
Bicycle belt
WARNING
Always remove the battery before starting work on the pedelec. The
cycle could switch on without warning and you could be seriously
injured.
CAUTION
Check the drive belt for signs of wear before every trip. A worn or
damaged drive belt can break. If this happens while you are riding the
bike, you can easily injure yourself.
IMPORTANT
Do not kink, twist, bend backwards, turn over, knot or bind together
the belt. Doing so can damage it beyond repair.
3.9.1 Belt tension
Measuring the belt tension
There are various ways to measure the tension of the drive belt. One of
these is the Carbon Drive app, which measures the tension based on the
natural frequency (Hz) of the belt length.
Smartphone operating
system
Download
iOS
http://www.gatescarbondrive.
com/CDS/Products/
ACCESSORIESANDTOOLS
Android
The Carbon Drive app works best in a quiet environment.
1. Remove the pedelec battery.
2. Load the app on to your smartphone.
3. Start the app.
4. Select the tension icon.
5. Switch on the microphone, click “Measure” and hold the phone over
the middle of the belt making sure that the microphone is pointing
towards the belt.
*dependent on model
