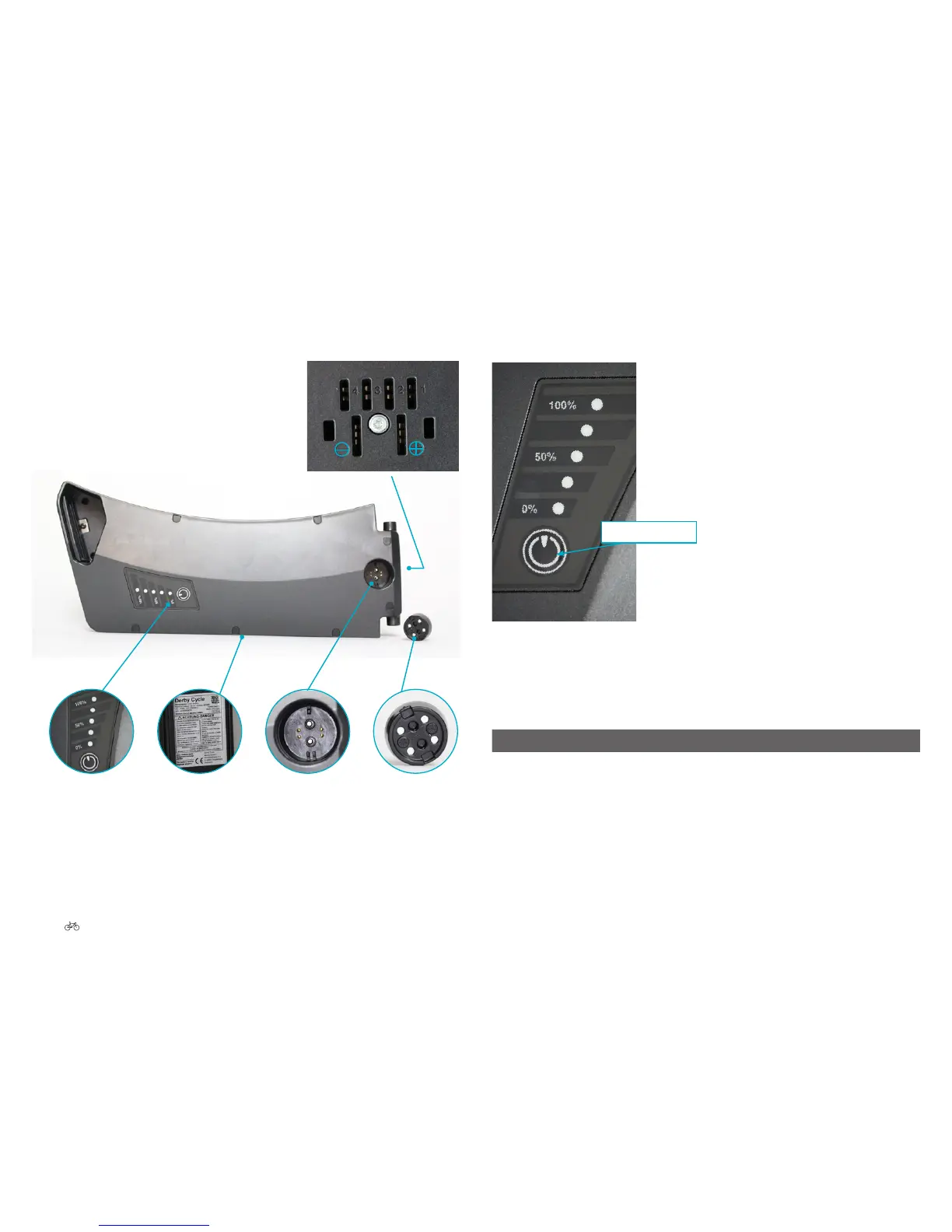

9.3 Overview and basic functions
LabelDisplay panel
Power jack
Discharge plug
Protective cap for
power jack
– terminal + terminal
9.3.1 Display panel
On the outside of the battery are a button
andadisplaypanelwithveLEDs.Three
LEDs show percentage values. The LEDs
light up when you press the battery button.
The number lighting up, and how, provides
information on the battery.
Battery button
9.3.1.1 Battery charge level
1. Brieypressthebatterybuttoninstandbymode.
Display Description Battery charge level
100%

5 LEDs light up 100 – 84%

4 LEDs light up 83 – 68%
50%

3 LEDs light up 67–51%

2 LEDs light up 50 – 34%
0%

1 LED lights up 33–17%
0%

1LEDashes 17–0%
