DS2460Q QAM Analysis Meter Operation Manual
145
7 Port
The instrument can communicate with a PC through
the Micro USB communication port. Refer to Figure
7-1 and Figure 7-2.

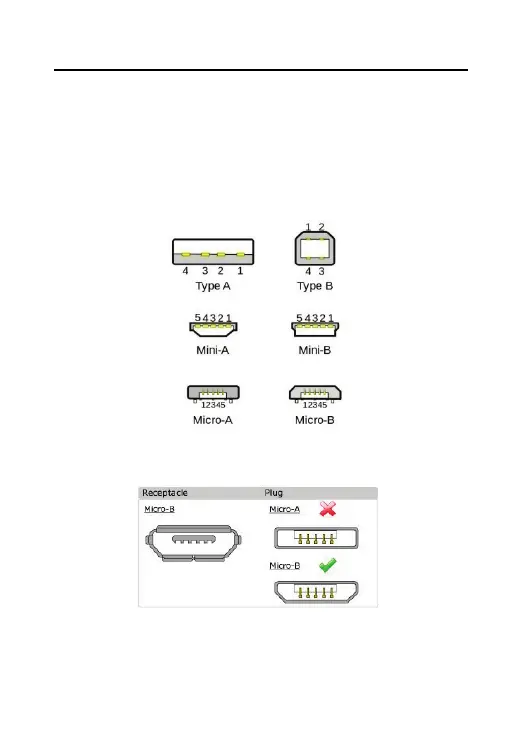

Figure 7-1USB port type
Figure 7-2 Micro-B USB 2.0 Receptacle and Plug
