4.10 Return Path Spectrum
Press to return to main menu interface and
press
F1
(PAGE1) to select the R-PATH icon, and
then press
to enter R-PATH function, as show
in Figure 4-48.

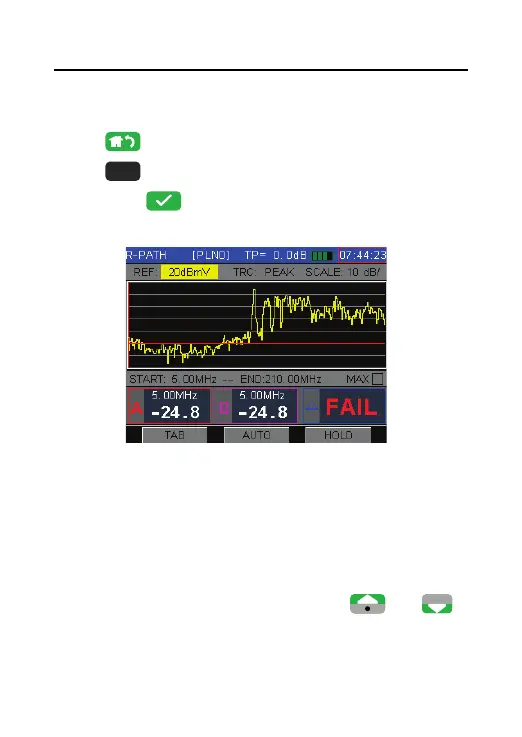

Figure 4-48
In the interface of the R-PATH function, the start and
stop frequency setting have several fixed options:
5~46MHz, 5~68MHz, 5~88MHz, 5~120MHz,
5~210MHz. If the cursor on the start and stop
frequency parameters, user can use
or
2 DFE
buttons to switch different option.
