DS2460Q QAM Analysis Meter Operation Manual
63
4.9 Mini SCAN
DS2460Q support Mini SCAN function. The Mini max
support 16 channels. In SCAN mode, the digital
channel only give signal power, the meter doesn’t
demodulate the QAM signal. In mini SCAN ,the QAM
signal will be demodulated, user can read the signal
power, MER and BER. Because the meter demodulate
the signal, the mini SCAN speed will slower than the
SCAN

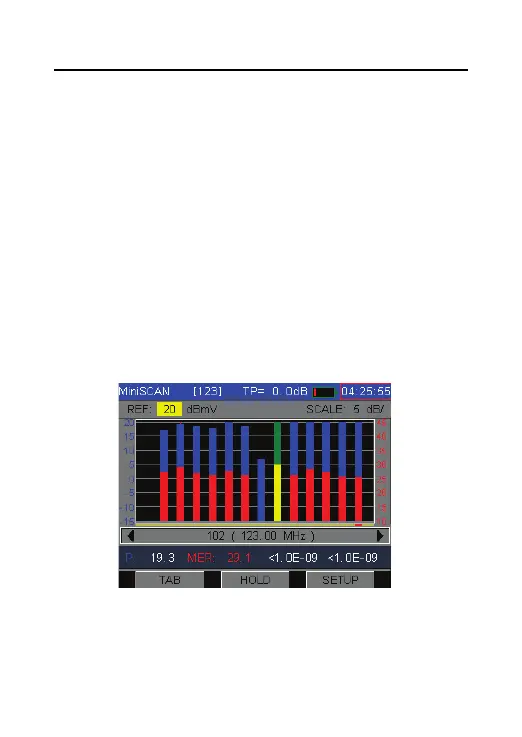

Figure 4-46
