4.3.1 Analog channel measurement
If the current channel is a valid analog channel, The

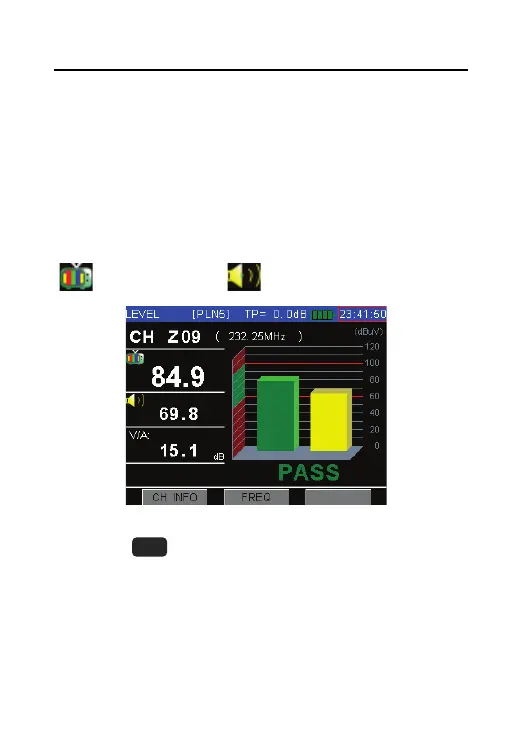

Level function will display as the Figure 4-22 show,
three test results are displayed on the screen, include
Video, audio and V/A.
: Video Level : Audio Level
Figure 4-22
CH INFO(
F1
): Press this button will display the
channel information of this analog channel as the
Figure 4-23 show. The channel parameters also can be
modified in this screen.
