7.5.3. Pinout: Sync connector 



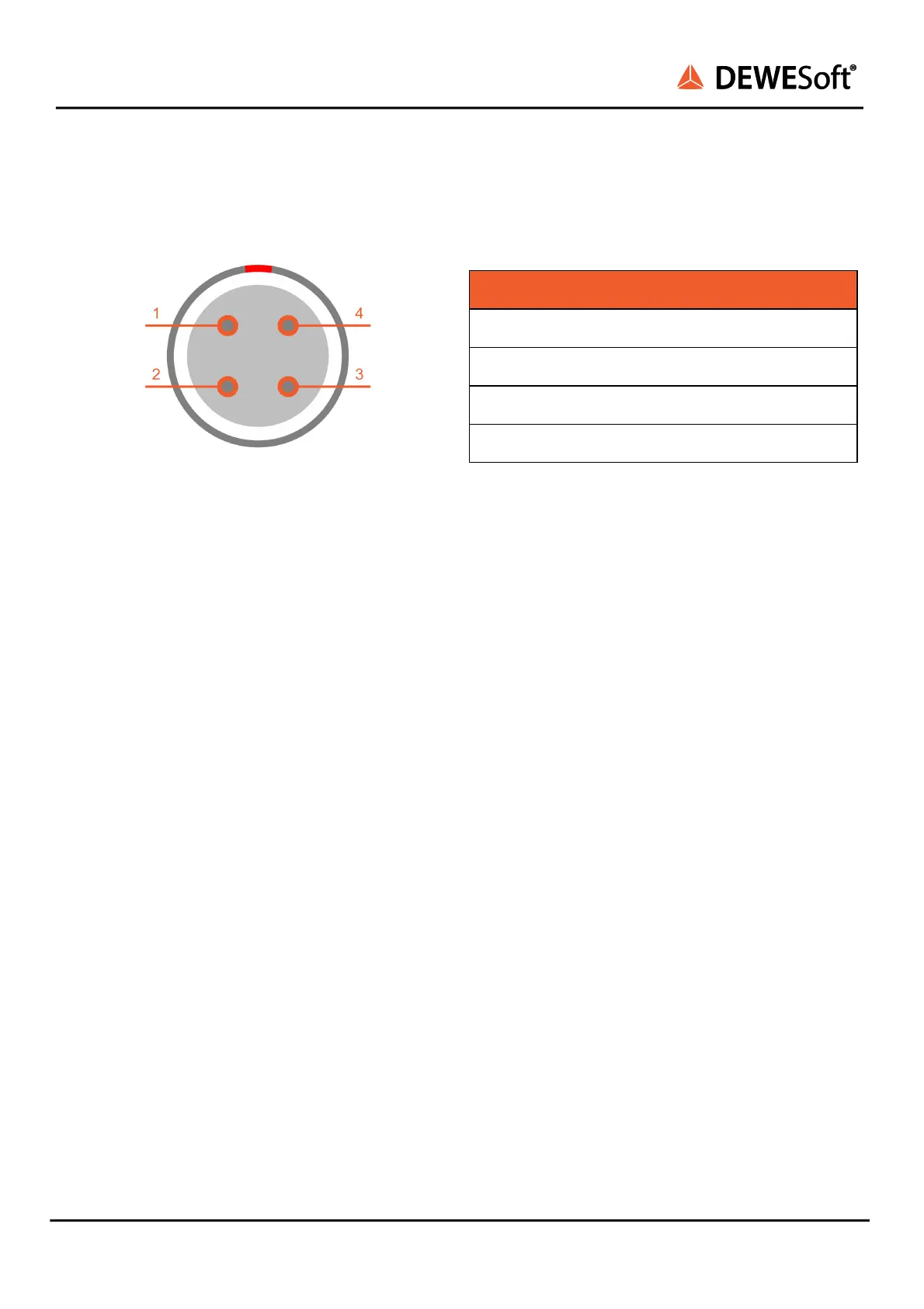

Sync connector: pin-out (4-pin LEMO female) 

Pin 
Name 
Description 
1 
CLK 
Clock 
2 
Trigg 
Trigger 
3 
GPS-PPS 
GPS - PPS 
4 
DGND 
Digital Ground 


Interface connector: EEG.00.304.CLL 
Mating connector: FGG.00.304.CLAD27Z 

 
