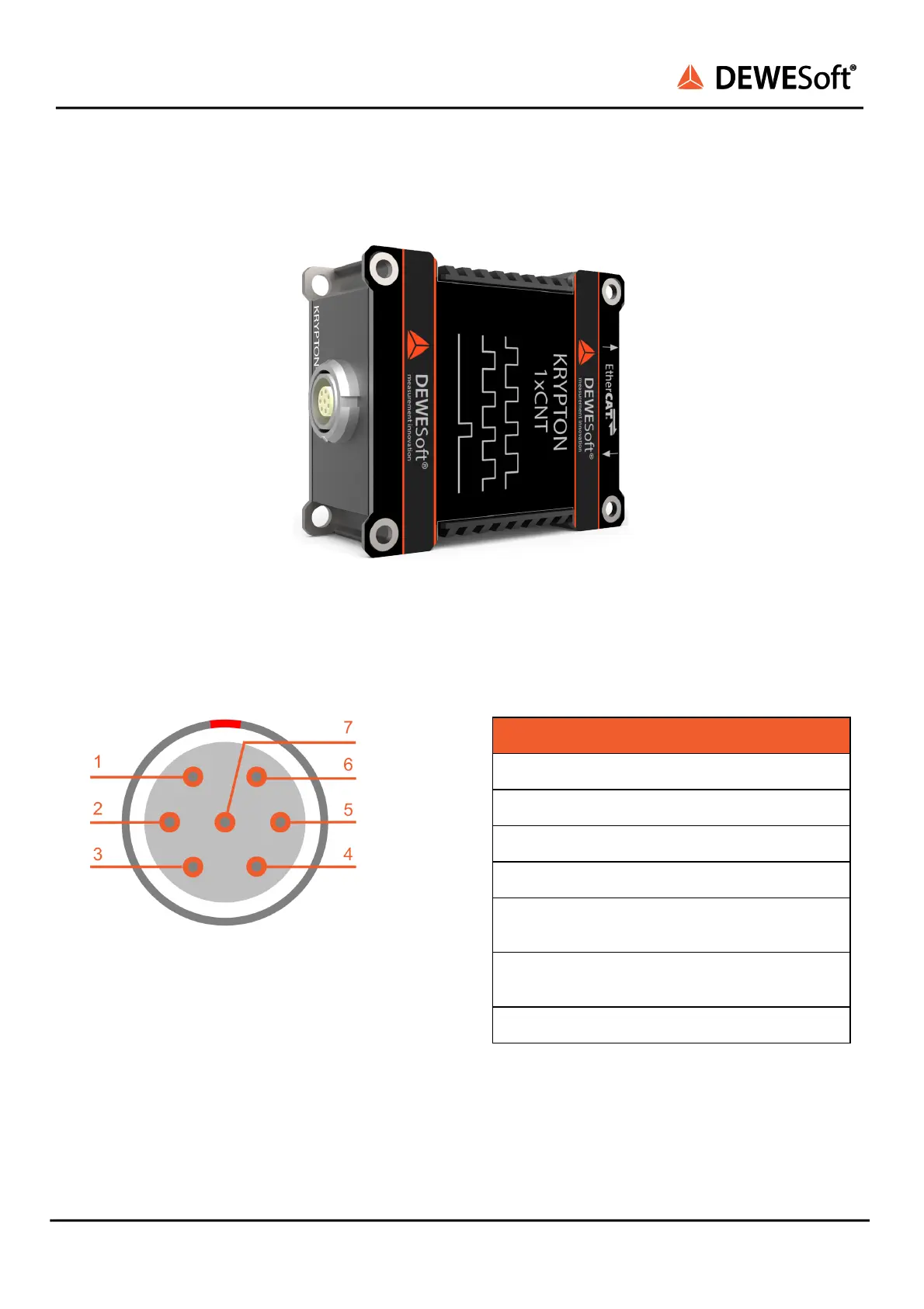

5.5.2. KRYPTON-1xCNT 
KRYPTON-1xCNT has a LEMO 7-pin L1T7f connector. 

KRYPTON-1xCNT 

5.5.3. CNT: connectors 


CNT connector: pin-out (7-pin LEMO female) 


Connector type LEMO L1T7f 
Mating connector: FGG.1T.307.CLAC45 




Pin 
Name 
Description 
1 
IN0/A 
Input A 
2 
IN1/B 
Input B 
3 
IN2/Z 
Input Z 
4 
GND 
Ground 
5 
+5 V 
5 V supply 
max. current: 100 mA 
6 
+12 V 
12 V supply 
max. current: 10 mA 
7 
GND 
Ground 



KRYPTON® V20-1 46 / 141  

DEWESOFT Krypton Specifications

General

Series	Krypton
IP Rating	IP67
Power Supply	9 - 36 V DC
Resolution	24-bit
Communication Interface	Ethernet
Input Type	Analog, Digital, Counter, CAN
