7.5. ECAT Sync Junction 
The ECAT Sync Junction box can be used to inject the sync signal into the EtherCAT line. The source of                    
the sync signal must be IRIG B DC: thus, the sync signal of Sirius USB slices can be directly connected to                     
the ECAT Sync Junction box. 

Connector Label 
Connector type 
Info 
IN 
8-pin LEMO 
EtherCAT input connector: 
e.g. connection to the PC via L1T8f-RJ45-1M cable 
OUT 
8-pin LEMO 
EtherCAT output connector to your Krypton slice/s 
use any of the ECAT to ECAT expansion cables (e.g. 
L1T8m-L1T8f-10M). 
SYNC 
4-pin LEMO 
Input connector for the IRIG-B-DC signal (TTL level), e.g. 
external, or directly from Sirius USB Note: the two SYNC 
connectors are directly connected, so you can use the other 
connector as output (to daisy-chain the same sync signal to 
other devices: e.g. DEWE-43-A, DS-CAM, etc.) 



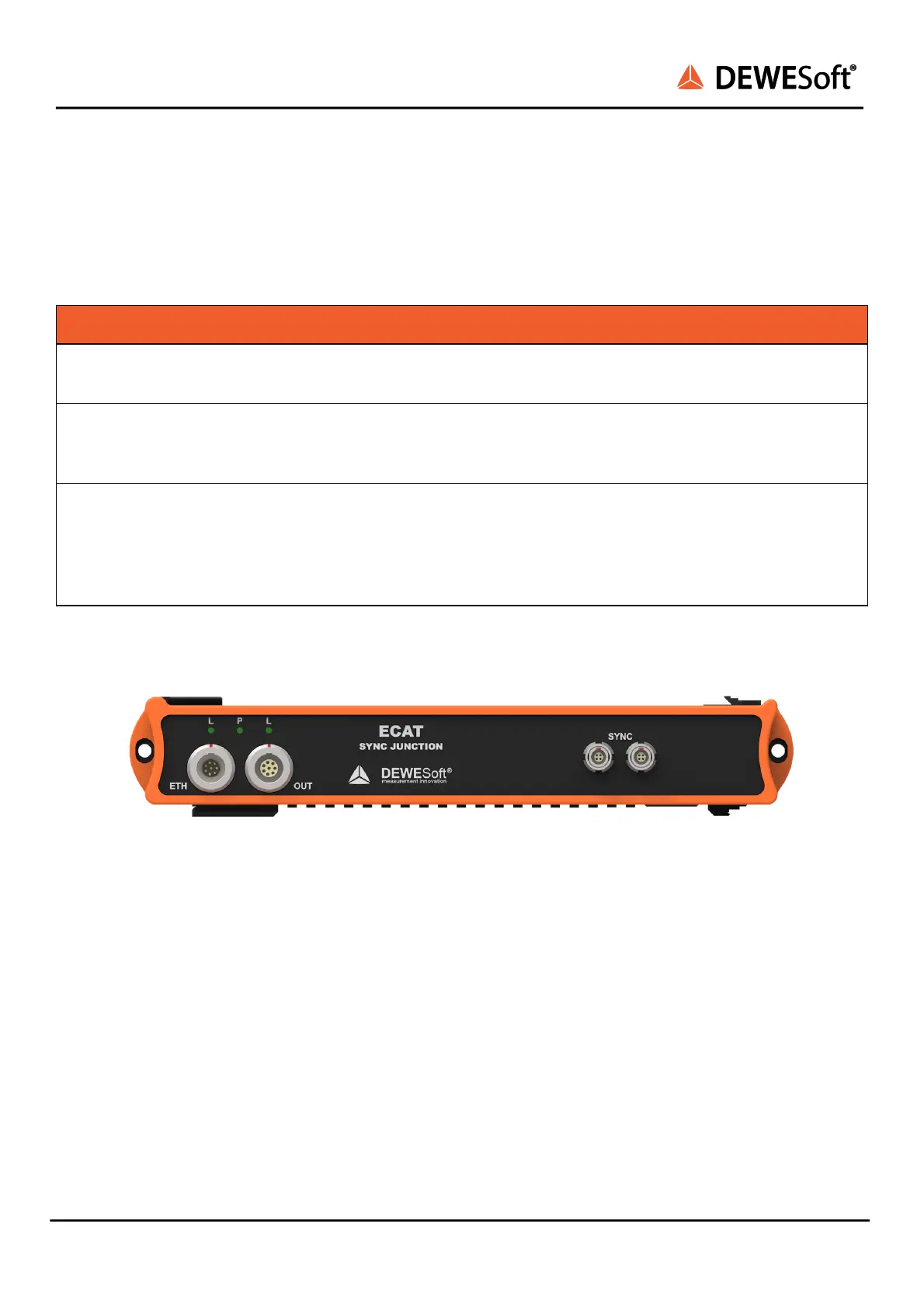

ECAT sync junction 
 
