7.3. ECAT Power Junction 

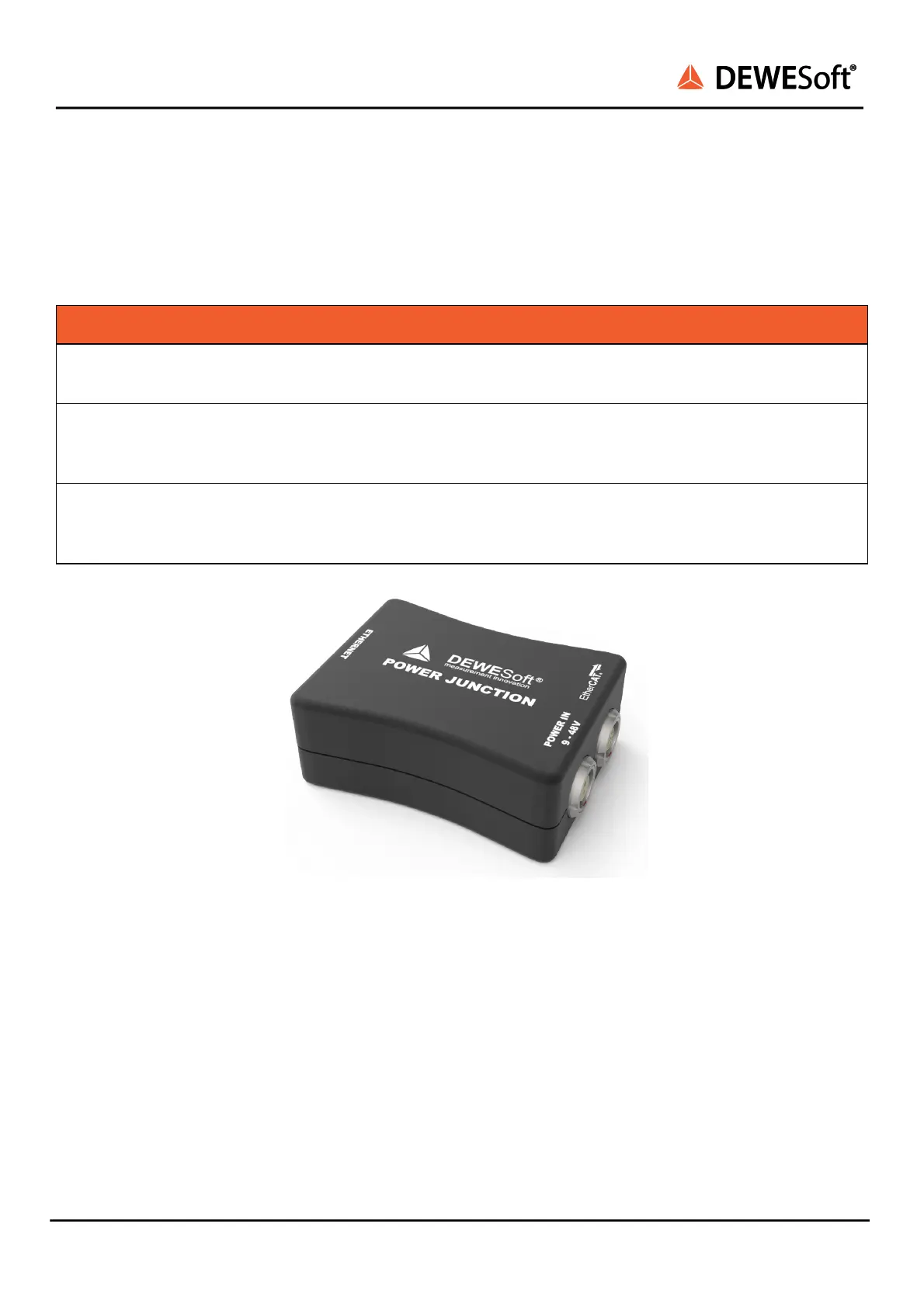

The ECAT Power Junction box (article number: ECAT-POWER-JUNCTION) can be used to inject power 

into the Ethernet connection between your PC and the KRYPTON modules: so that you only have one 

cable for power and data to your KRYPTON modules. 



Connector Label 

Connector type 

Info 

POWER IN 

2-pin LEMO male 

9 - 48 VDC: e.g. for connection from the Power-Out 

connector of a Sirius slice 

Ethernet 

RJ-45 

Ethernet data connection to your PC 

The Ethernet cable should always be shielded! You can 

use an EIA568-B straight or crossover cable. 

EtherCAT 

8-pin LEMO female 

Power and Data connection to your KRYPTON module/s 

use any of the ECAT to ECAT expansion cables (e.g. 

L1T8m-L1T8f-10M) 



ECAT Power junction 



 
