KRYPTON® 
TECHNICAL REFERENCE MANUAL 


8. Hardware overview 

8.1. EtherCAT connector 
8.1.1. Cable 
Device 
Connector 
Cable Image 
Type 
Art. Number-Example 
Device 
Connector 
Description 
 
DS-EtherCAT 
device IN 
(8-pin LEMO) 




ECAT to ECAT 
L1T8m - L1T8f 

DS-EtherCAT 
device OUT 
(8-pin LEMO) 

Data, Sync and Power connection between the 
Krypton™ slices, the Sirus EtherCAT slice and 
the Krypton CPU. 

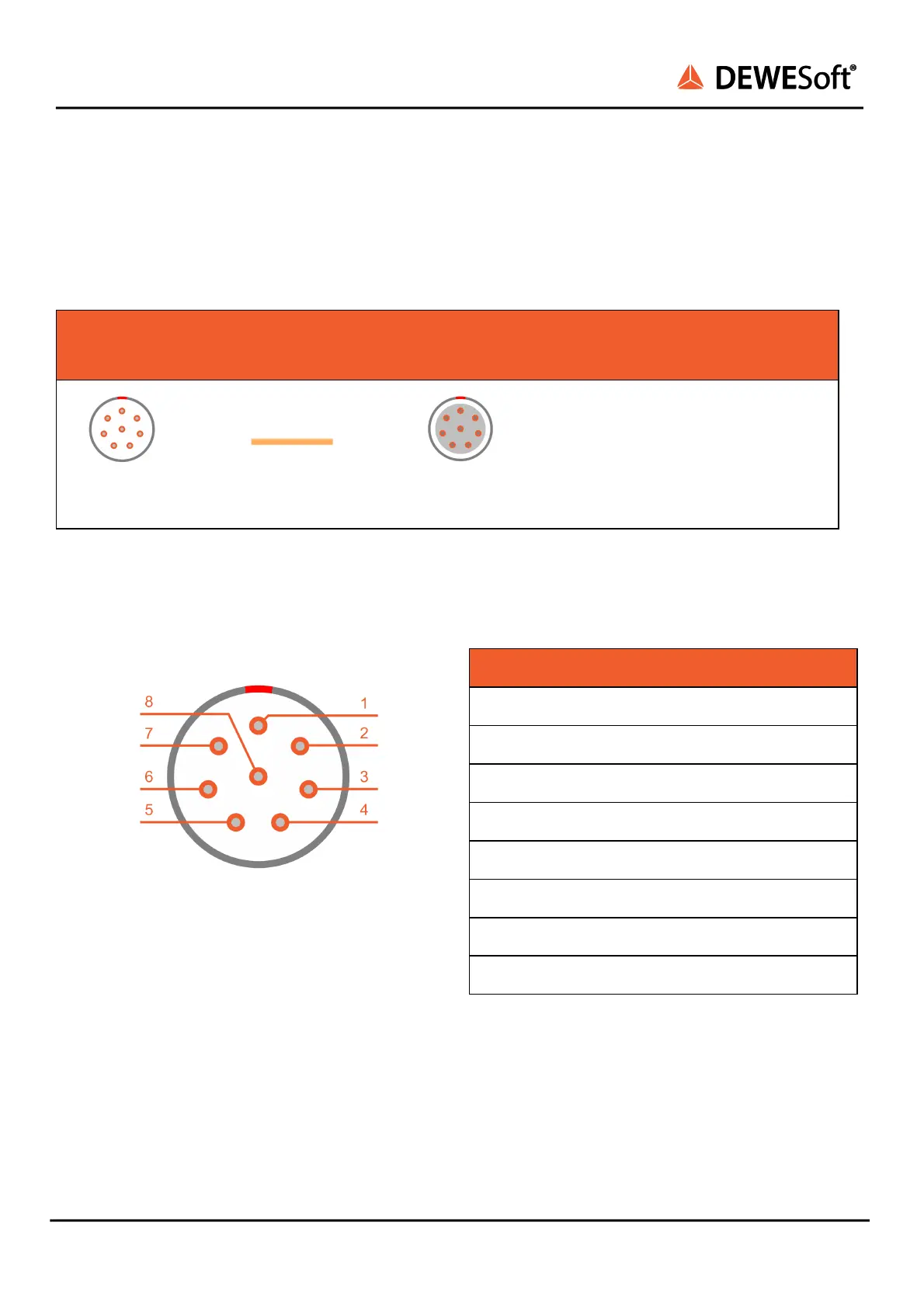

8.1.2. Pinout: IN connector 
The connector for EtherCAT is a LEMO 1B 8-pin male connector. 




IN connector: pin-out (8-pin LEMO male) 



Pin 
Name 
Description 
1 
TX_P 
Transmission + 
2 
TX_N 
Transmission - 
3 
RX_P 
Reception + 
4 
RX_N 
Reception - 
5 
VCC 
PWR IN 
6 
VCC 
PWR IN 
7 
GND 
Ground 
8 
GND 
Ground 

IN connector (on the device): EEJ.1B.308.CLD 
Mating connector (for the cable): FGJ.1T.308.CLL.1433 

 
KRYPTON® V20-1 106 / 141  
