KRYPTON® 

TECHNICAL REFERENCE MANUAL 



KRYPTONi-1xTH-HV 

Inputs 

Input types 

Thermocouple 

Number of channels 

1 

Input connector 

K-type Thermocouple LEMO REDEL 2P series 

ADC Type 

24-bit delta-sigma 

Sampling Rate 

Simultaneous 100 S/sec 

Isolation voltage 

CAT III 600 V, CAT II 1000 V 

Input Impedance 

100 MΩ 

Thermocouple 

TC type 

Type K 

Accuracy 

±0.02 % of reading ±0.5 °C ±10 μV 

Resolution 

< 0.001 °C 

Sampling rates 

100, 80, 40, 20, 10 S/sec 

Typical Noise 

0.007°C RMS @ Type K @ 10 S/sec 

Power 

Power consumption 

1.3 W (typ.) 

Physical 

Dimensions 

62 x 56 x 36 mm 

Weight 

300 g 



KRYPTON TH ACCURACY 

Temperatur

e 

Type K 

Type J 

Type T 

Type R 

Type S 

Type N 

Type E 

Type B 

Type C 

-200 °C 

1.19 °C 

1.00 °C 

1.18 °C 



1.52 °C 

0.95 °C 



-100 °C 

0.84 °C 

0.76 °C 

0.87 °C 



0.99 °C 

0.74 °C 



0 °C 

0.75 °C 

0.70 °C 

0.76 °C 

2.35 °C 

2.32 °C 

0.88 °C 

0.67 °C 



1.22 °C 

100 °C 

0.76 °C 

0.70 °C 

0.73 °C 

1.83 °C 

1.87 °C 

0.85 °C 

0.67 °C 

11.62 °C 

1.14 °C 

400 °C 

0.81 °C 

0.76 °C 

0.73 °C 

1.53 °C 

1.61 °C 

0.84 °C 

0.70 °C 

2.98 °C 

1.09 °C 

700 °C 

0.88 °C 

0.79 °C 



1.46 °C 

1.56 °C 

0.88 °C 

0.76 °C 

2.04 °C 

1.14 °C 

1000 °C 

0.97 °C 

0.86 °C 



1.42 °C 

1.53 °C 

0.95 °C 

0.84 °C 

1.70 °C 

1.25 °C 

1300 °C 

1.09 °C 



1.42 °C 

1.54 °C 

1.03 °C 



1.57 °C 

1.39 °C 

1700 °C 



1.55 °C 

1.69°C 



1.57 °C 

1.63 °C 

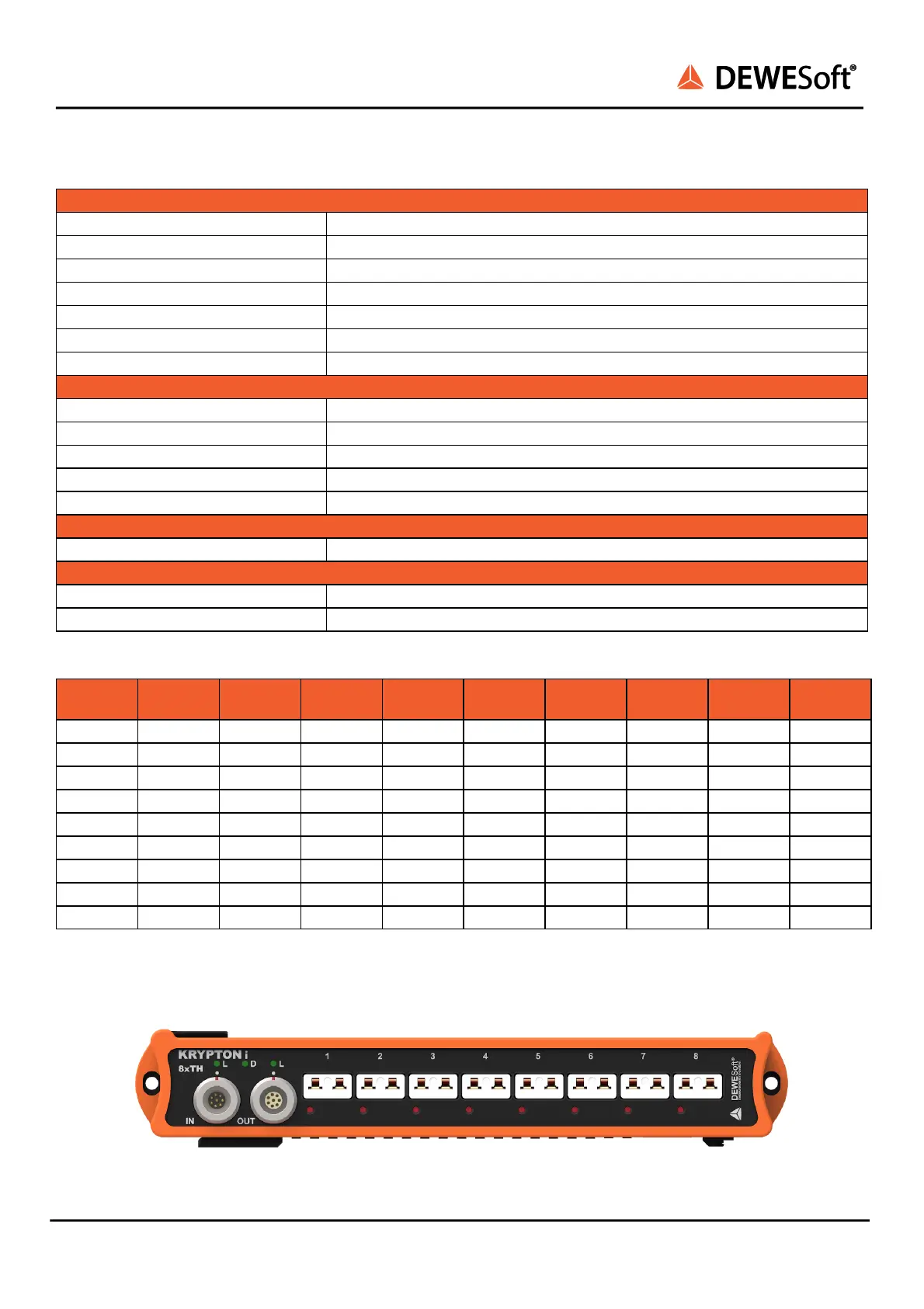

5.12.2. KRYPTONi-8xTH 

KRYPTONi-8xTH module has 8 thermocouple-connectors for temperature measurement. 



KRYPTONi-8xTH  

KRYPTON® V20-1 82 / 141  
