7.6.1. Pinout : EtherCAT out connector 





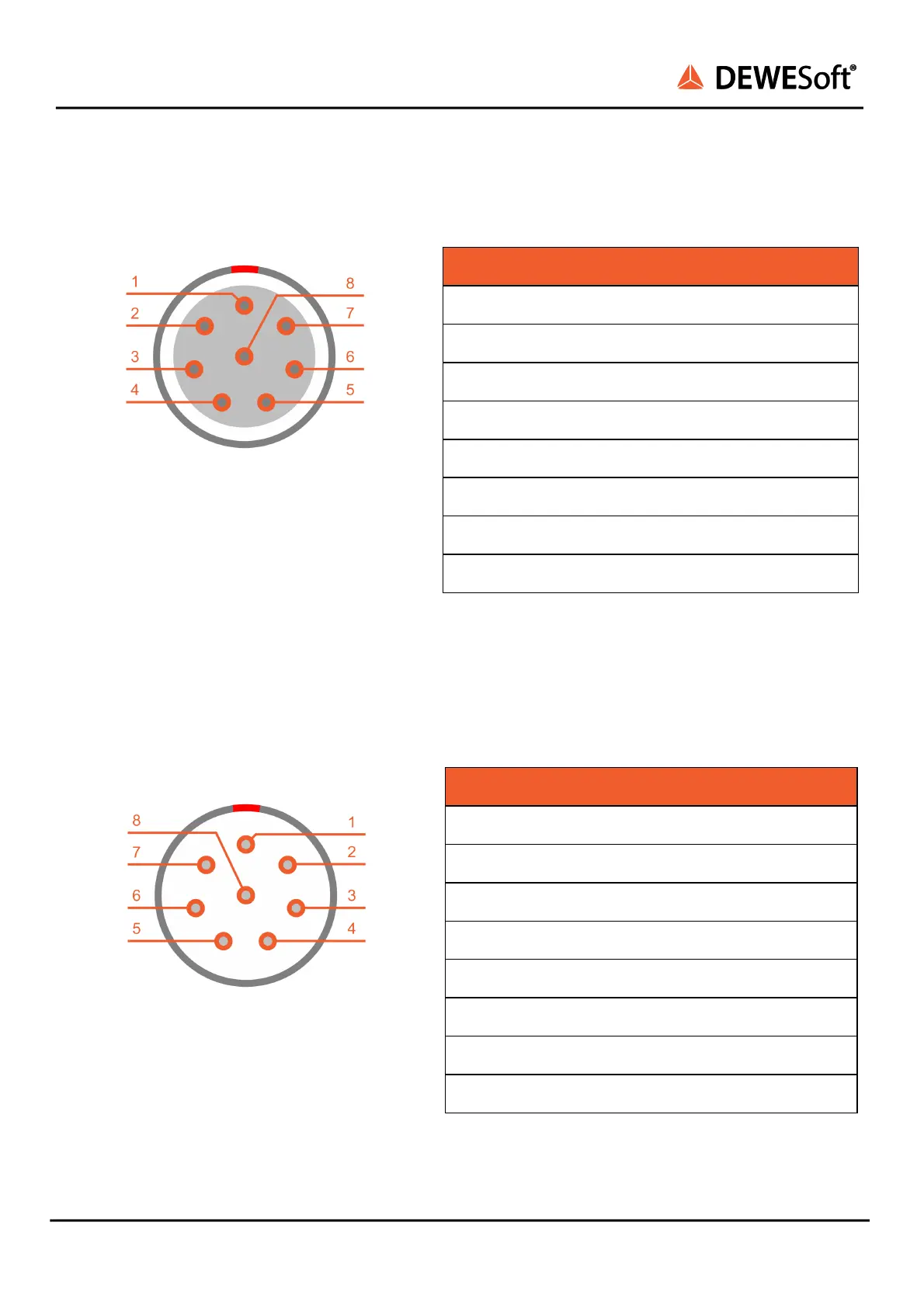

OUT connector: pin-out (8-pin LEMO female) 



Pin 
Name 
Description 
1 
TX_P 
Transmission + 
2 
TX_N 
Transmission - 
3 
RX_P 
Reception + 
4 
RX_N 
Reception - 
5 
VCC 
PWR IN 
6 
VCC 
PWR IN 
7 
GND 
Ground 
8 
GND 
Ground 

IN connector (on the device): EEJ.1B.308.CLD 
Mating connector (for the cable): FGJ.1T.308.CLL.1433 
7.6.2. Pinout: EtherCAT in connector 
The connector for EtherCAT is a LEMO 1B 8-pin male connector. 



IN connector: pin-out (8-pin LEMO male) 



Pin 
Name 
Description 
1 
TX_P 
Transmission + 
2 
TX_N 
Transmission - 
3 
RX_P 
Reception + 
4 
RX_N 
Reception - 
5 
VCC 
PWR IN 
6 
VCC 
PWR IN 
7 
GND 
Ground 
8 
GND 
Ground 

IN connector (on the device): EEJ.1B.308.CLD 
Mating connector (for the cable): FGJ.1T.308.CLL.1433  
