5.11.8. STG: wiring diagrams 

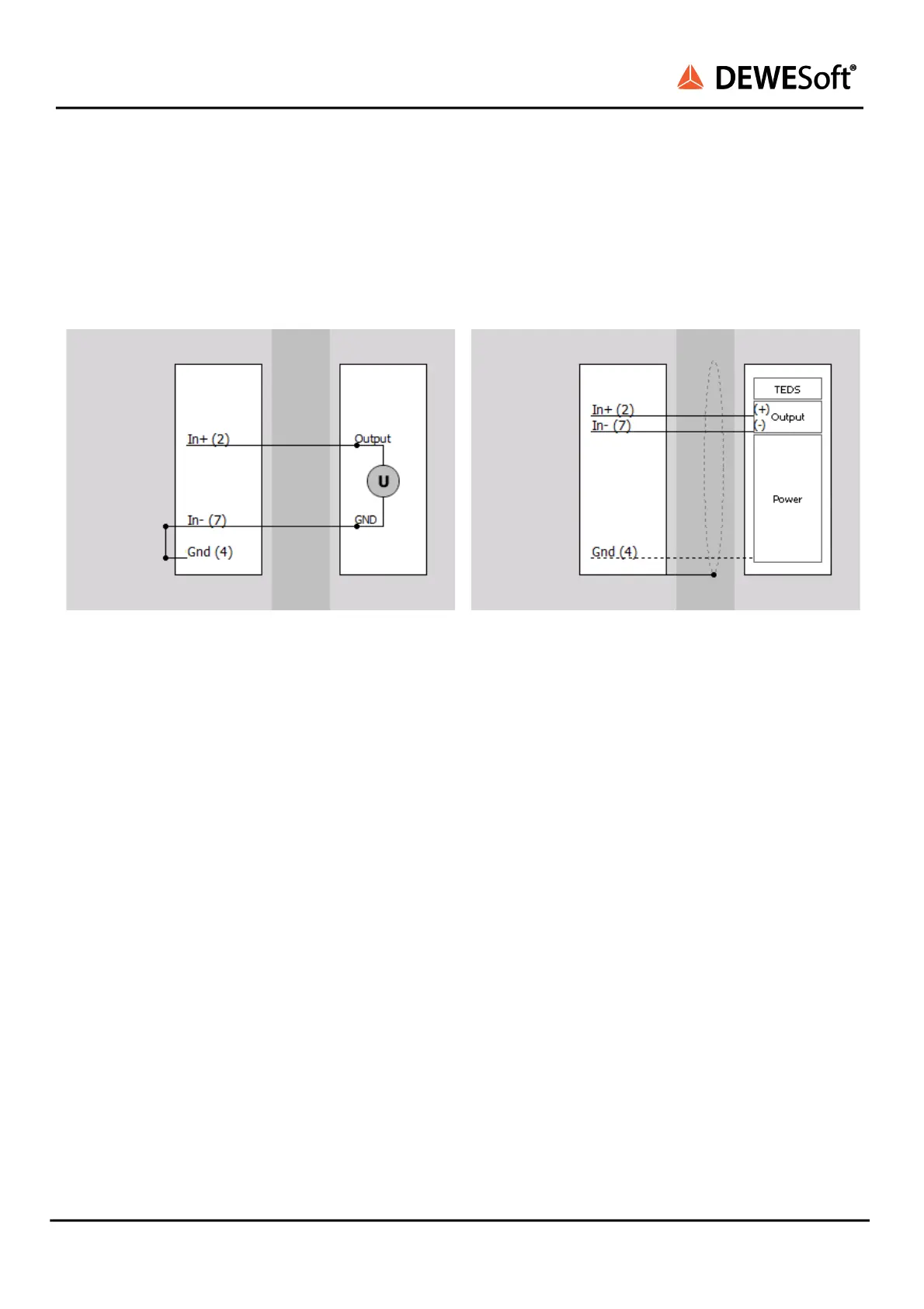

5.11.8.1. STG: Voltage 
Single ended 



Differential 
Use only when sensor Output (+) and Output (-) 
are referenced to Gnd. Gnd must be connected. 





 
