KRYPTON®
TECHNICAL REFERENCE MANUAL
6.3. Connectors
Name
Description
Power In
3-pin LEMO male connector
USB
3x USB 2.0 connector
Ethernet
RJ-45 connector
EtherCAT
8-pin LEMO connector
DVI
DVI connector
WiFi
RP-SMA Female WLAN antenna

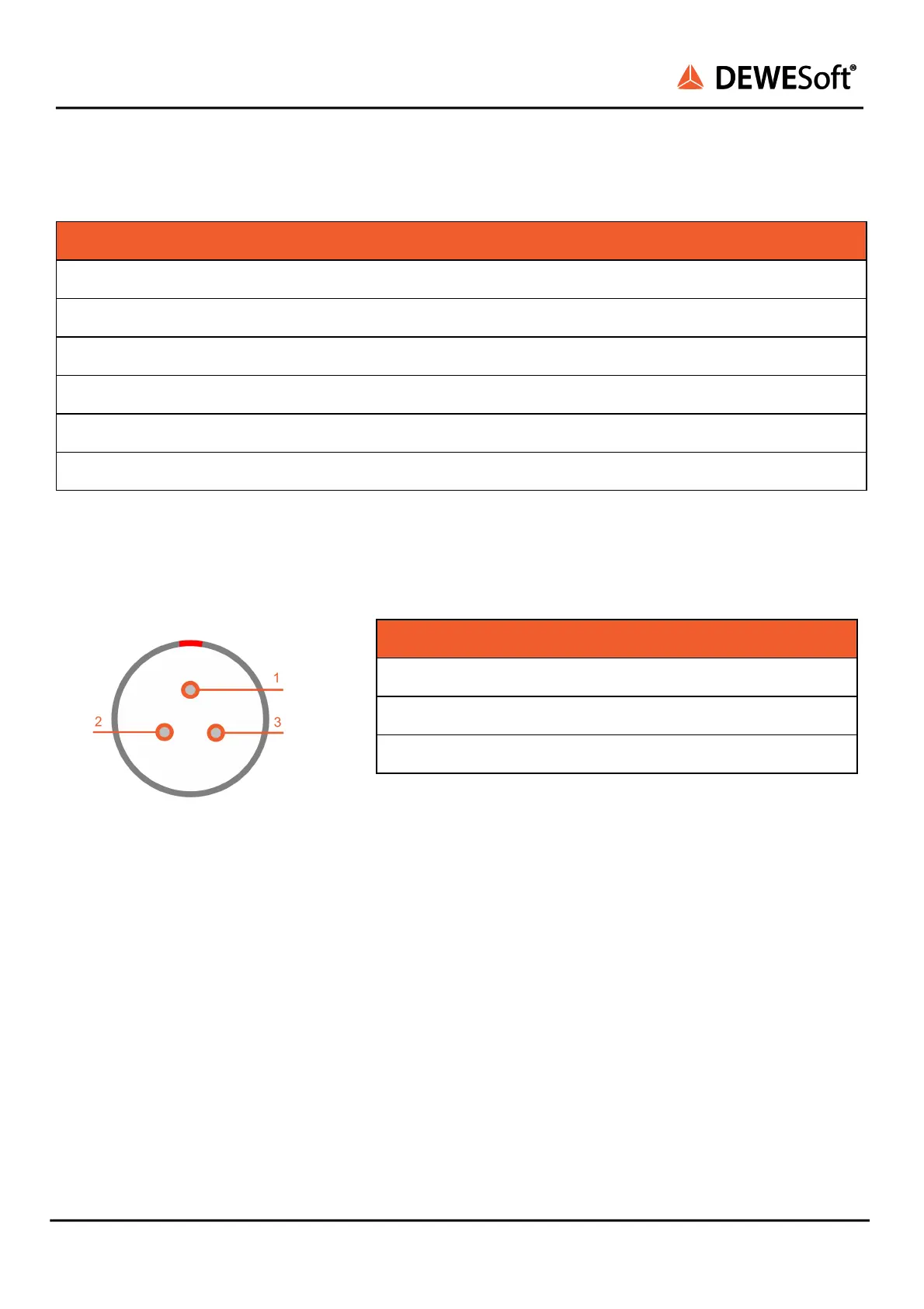

6.3.1. Pinout : Power In Connector
Power in connector: pin-out (3-pin LEMO male)
Pin
Name
Description
1
V + 
Supply
2
GND
Ground
3
Remote - On
Remote - On pin
PWR IN connector (on the device): EXJ.1B.302.HLD
Mating connector (for the cable): FGG.1B.302.CLAD52Z
KRYPTON® V20-1 91 / 141
