KRYPTON® 
TECHNICAL REFERENCE MANUAL 



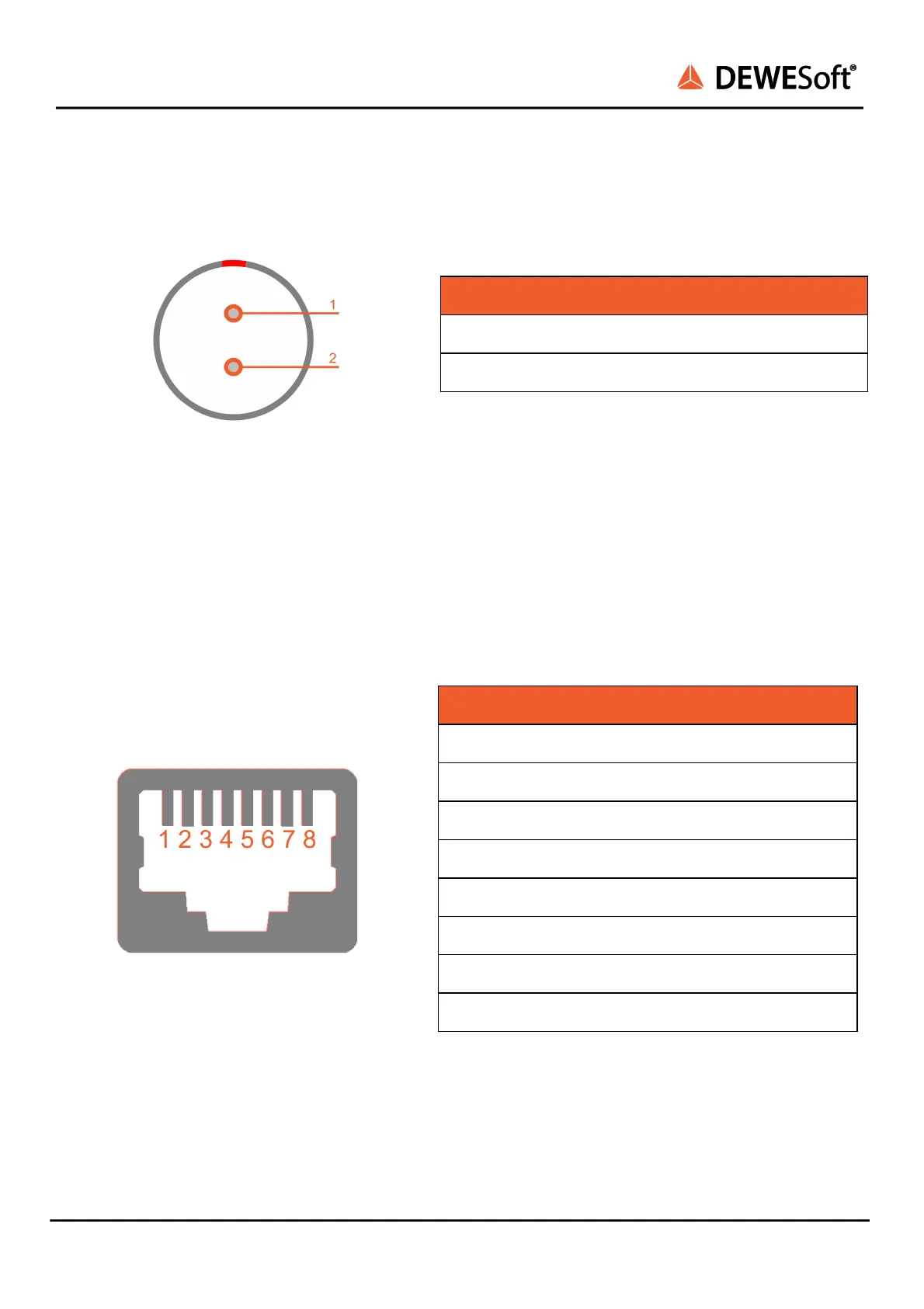

7.3.1. Pinout : Power in connector 



Pin 
Name 
Description 
1 
IN+ 
Input + 
2 
IN- 
Input - 



Power junction connector: pin-out (2-pin LEMO male) 


POWER IN connector (on the device): EXJ.1B.302.HLD 
Mating connector (for the cable): FGG.1B.302.CLAD52Z 
Power will be connected from 2pin PS LEMO V+ to VCC of the 8pin LEMO. V- is GND on the 8pin LEMO. 

7.3.2. Pinout : RJ45 connector 


Ethernet connector: pin-out (RJ-45 female) 

Pin 
Name 
Description 
1 
TX_P 
Transmission + 
2 
TX_N 
Transmission - 
3 
RX_P 
Reception + 
4 
- 
- 
5 
- 
- 
6 
RX_N 
Reception - 
7 
- 
- 
8 
- 
- 


 
KRYPTON® V20-1 94 / 141  

DEWESOFT Krypton Specifications

General

Series	Krypton
IP Rating	IP67
Power Supply	9 - 36 V DC
Resolution	24-bit
Communication Interface	Ethernet
Input Type	Analog, Digital, Counter, CAN
