KRYPTON® 

TECHNICAL REFERENCE MANUAL 



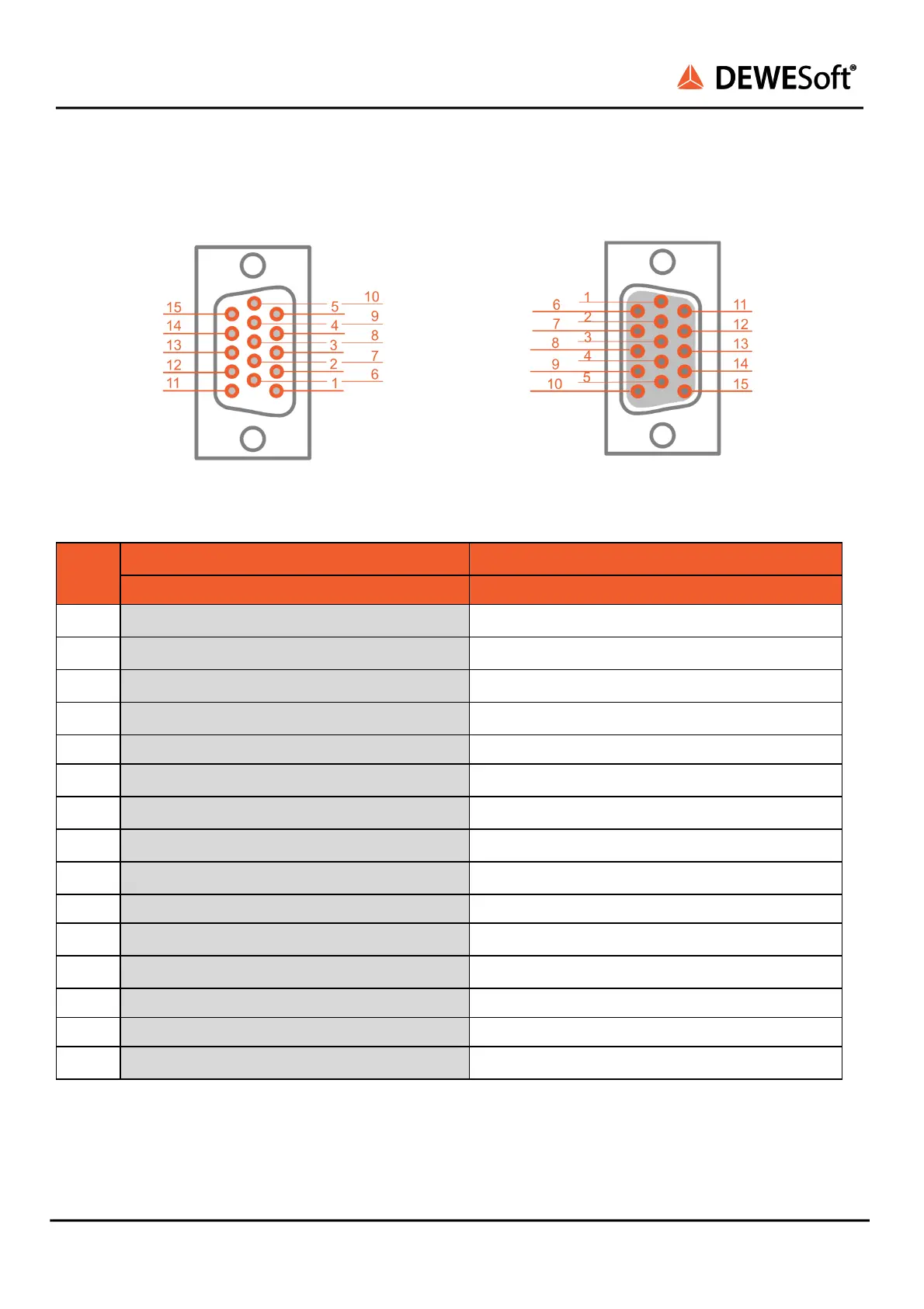

5.6.7.2. Krypton 4xDI and 4xDO connectors 



DSUB-15 HD male for Krypton 4xDI 



DSUB-15 HD female for Krypton 4xDO 



Pin 

4xDI 

4xDO 

Name 

Description 

Name 

Description 

1 

DI1 + 

Digital input CH1 + 

DO1 

Digital output CH1 

2 

DI2 + 

Digital input CH2 + 

DO2 

Digital output CH2 

3 

DI3 + 

Digital input CH3 + 

DO3 

Digital output CH3 

4 

DI4 + 

Digital input CH4 + 

DO4 

Digital output CH4 

5 

NC 

- 

Vext + 

External voltage 

6 

DI1 - 

Digital input CH1 - 

GNDi 

Isolated ground 

7 

DI2 - 

Digital input CH2 - 

GNDi 

Isolated ground 

8 

DI3 - 

Digital input CH3 - 

GNDi 

Isolated ground 

9 

DI4 - 

Digital input CH4 - 

GNDi 

Isolated ground 

10 

NC 

- 

NC 

- 

11 

+5V/300mA 

5 V supply, max. 300 mA 

+5V/300mA 

5 V supply, max. 300 mA 

12 

+12V/130mA 

12 V supply, max.130 mA 

+12V/130mA 

12 V supply, max.130 mA 

13 

GND 

Ground 

GND 

Ground 

14 

GND 

Ground 

GND 

Ground 

15 

supply

/200mA 

Supply voltage, max. 200 mA 

supply

/200mA 

Supply voltage, max. 200 mA 

 

KRYPTON® V20-1 54 / 141  
