KRYPTON® 

TECHNICAL REFERENCE MANUAL 











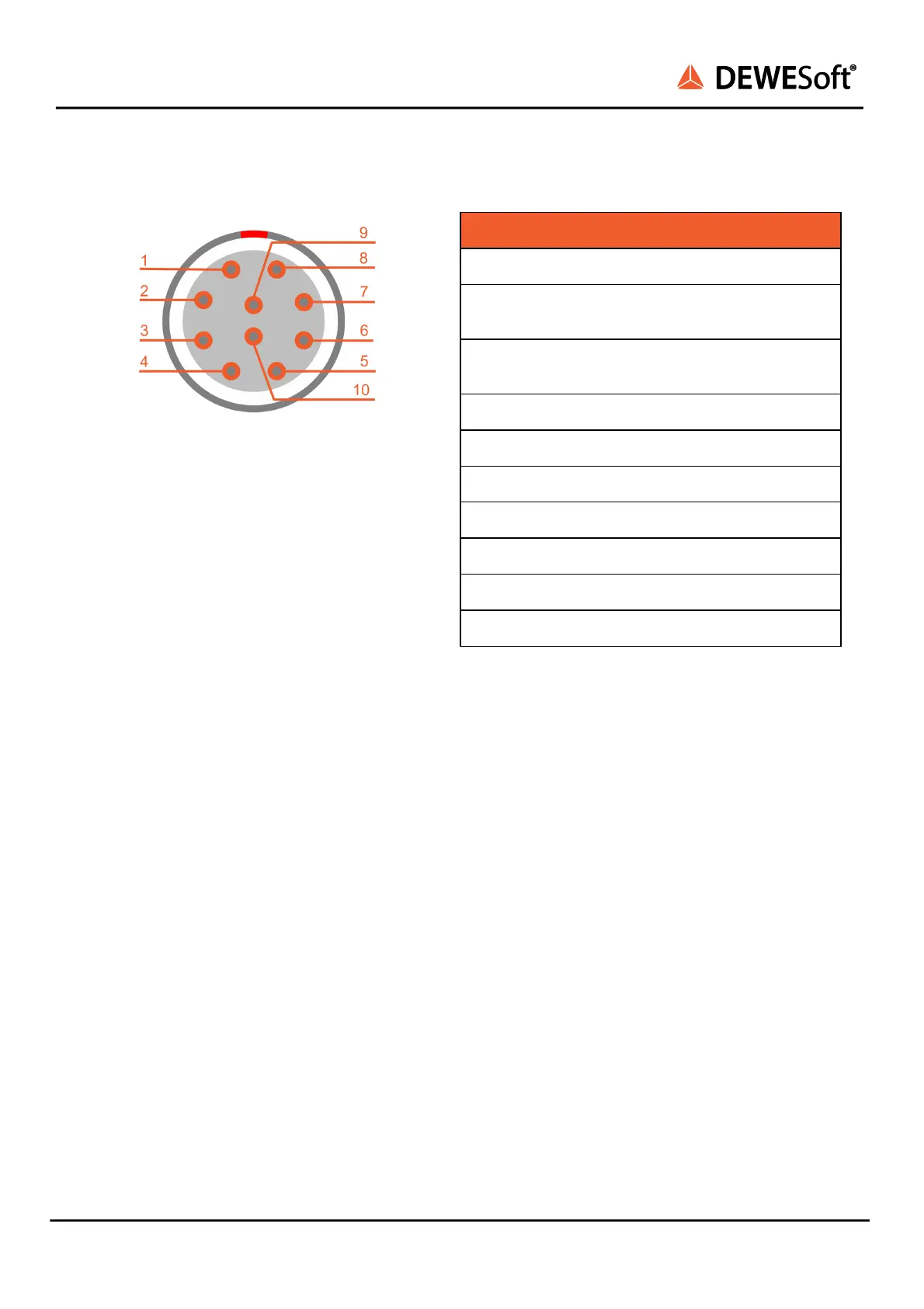

STG-L2B10fs connector: pin-out (10-pin LEMO female) 



Pin 

Name 

Description 

1 

TEDS 

TEDS 

2 

R+ 

¼ Bridge / 

Shunt 

3 

NC 

Not 

connected 

4 

SNS- 

Sense- 

5 

EXC- 

Excitation- 

6 

SNS+ 

Sense+ 

7 

EXC+ 

Excitation + 

8 

GND 

Ground 

9 

IN- 

Input- 

10 

IN+ 

Input + 





 

KRYPTON® V20-1 76 / 141  
