KRYPTON®
TECHNICAL REFERENCE MANUAL

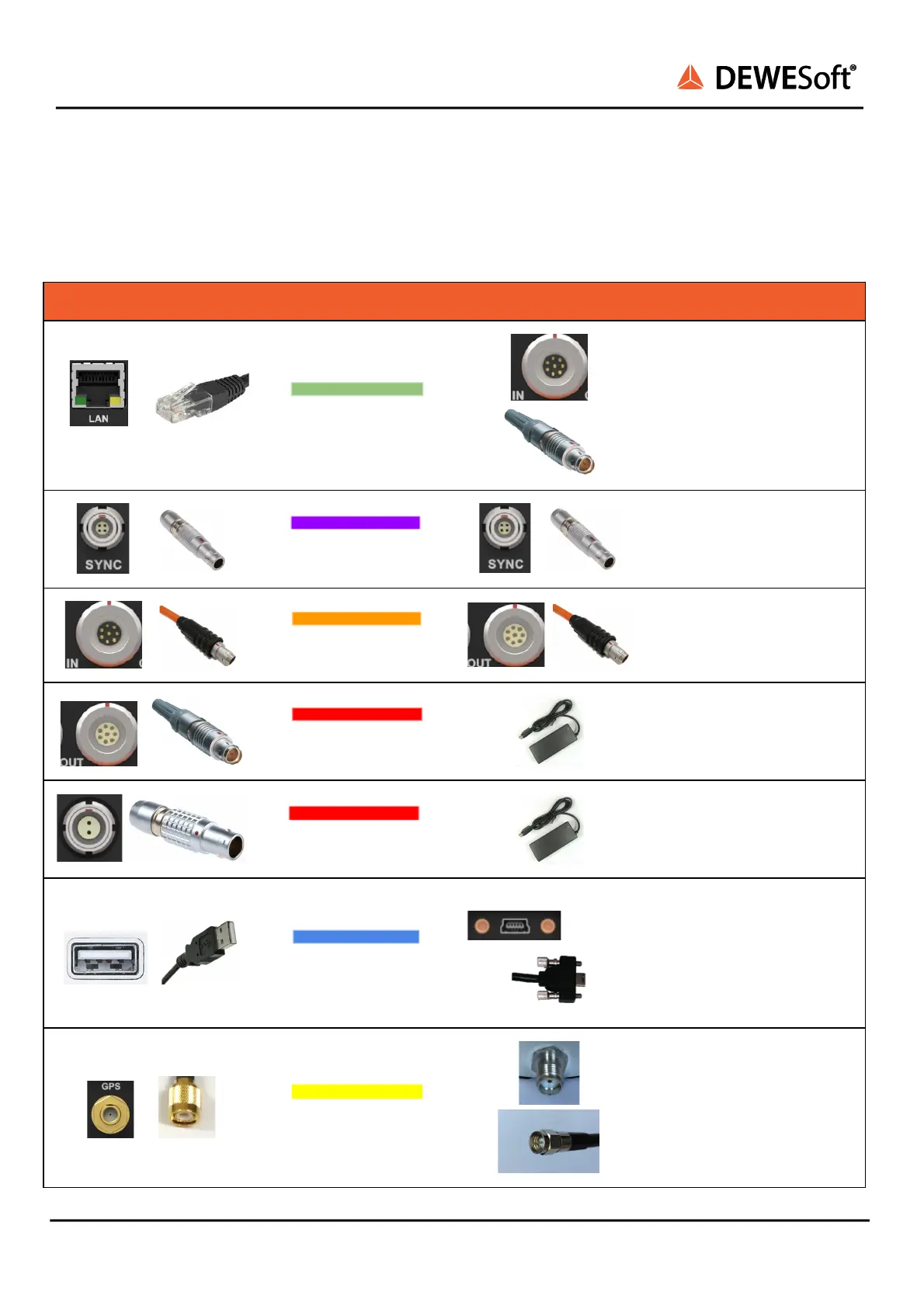

All cables
The following table shows the signal line coding that will be used in the following system connection
examples.
Ethernet RJ45 to LEMO 1T
8pin female
EtherCAT connection from PC
to the KRYPTON EtherCAT
device.
Sync LEMO 00B 4pin male
to male
Input / Output of the
synchronization signal.
EtherCAT LEMO 1T 8pin
male to female
Data, Sync and Power
connection between the
KRYPTON device.
DC-power supply LEMO 1T
8pin male
Power supply connection to
the KRYPTON device.
DC-power supply LEMO 1B
2pin female
Power supply connection to
the SIRIUS device and IOLITEs.
USB type A to USB type B
mini
USB data connection from PC
to the SIRIUS USB device.
HF-GPS cable with low
noise
KRYPTON® V20-1 115 / 141
