The second purpose is to synchronize data between EtherCat data line (e.g KRYPTON line) with USB 
data line (e.g. Sirius USB or DEWE-43-A). 


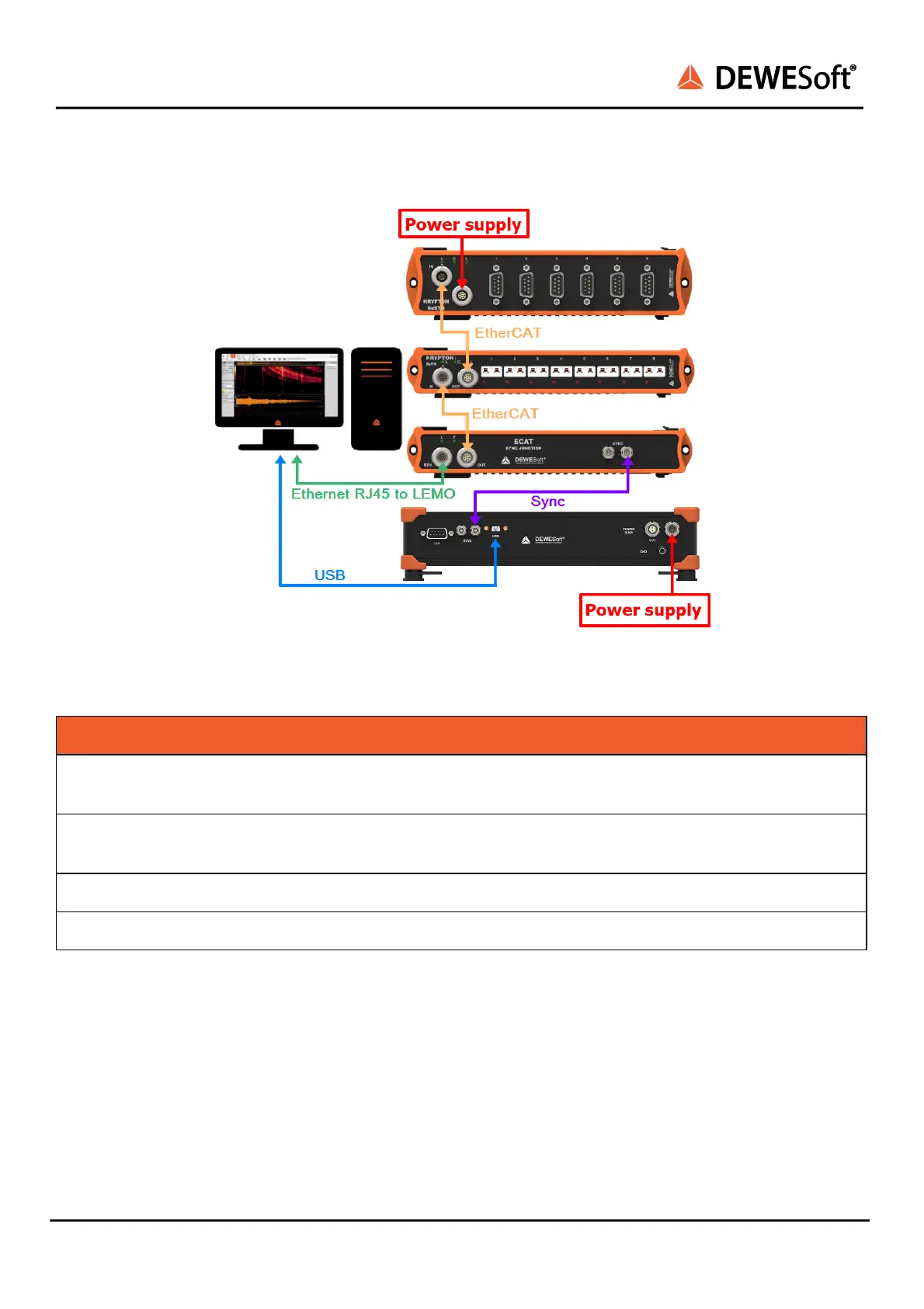

Synchronizing data from USB and ECAT data lines with Sync junction 

List of required cables: 

Function 
DEWESoft order code 
Power supply 
Krypton: PS-120-L1T8m 
Sirius: PS-120-L1B2f 
EtherCAT 
EtherCAT to EtherCAT: L1T8m-L1T8f, 
ECAT - PC connection: L1T8f-RJ45 
Synchronization 
L00B4m-L00B4m 
USB 
USB1-USB2s or USB1s-USB2s 

 
