Proximity sensor operation
The proximity sensor mounted behind the applicator shoe detects when the applicator shoe has reached
the package to apply the label. When the shoe pushes against the package, it will push back on the spring
loaded mount, the pushed back position is detected by the proximity sensor which in turn retracts the
cylinder.
Cylinder movement

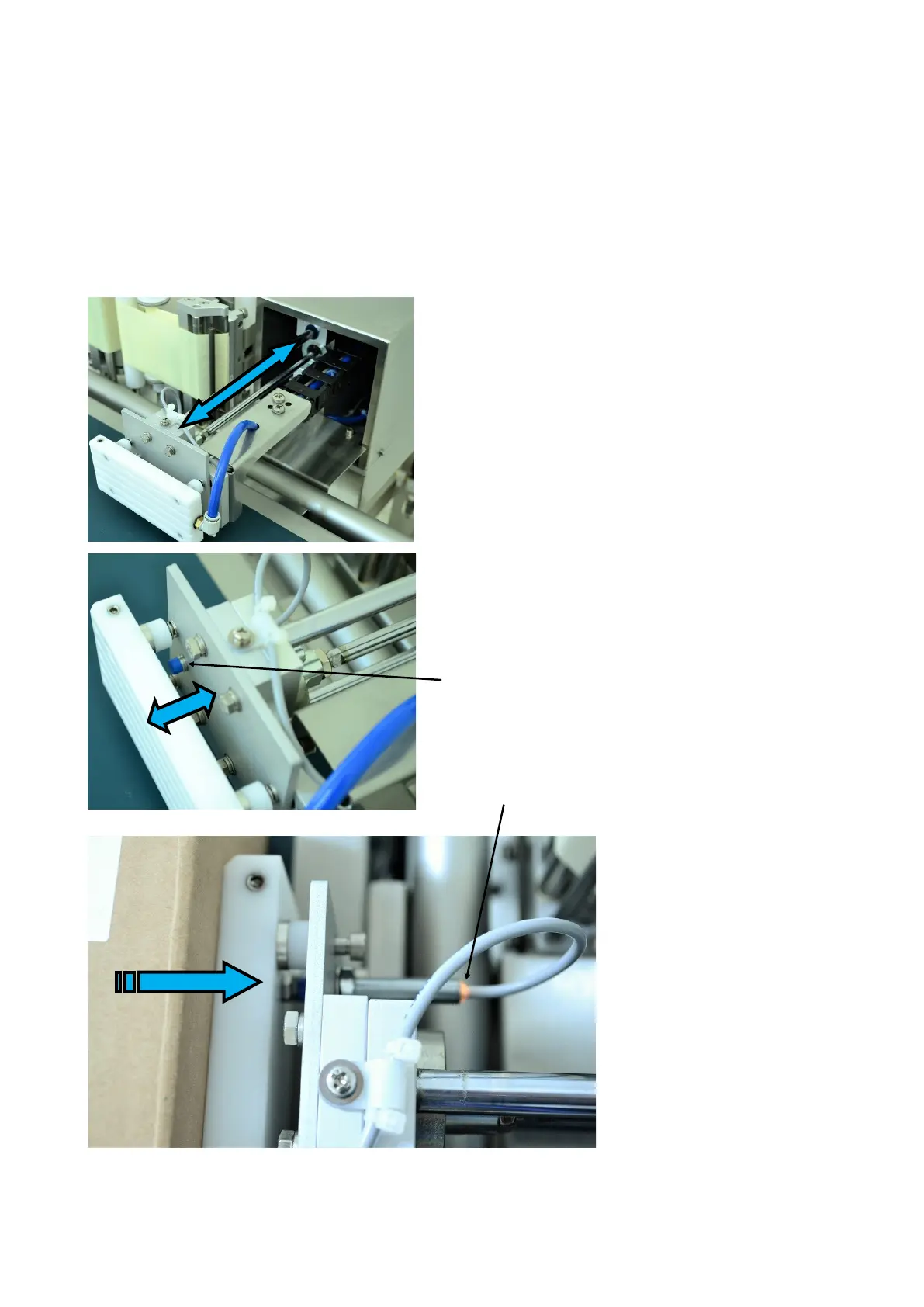

Applicator shoe movement. Shoe will be pushed back
against spring pressure to activate the proximity
sensor
Proximity sensor
Proximity sensor activated (orange indicator light
comes on)
Package pushing
applicator shoe
back
The sensor must be is
adjusted correctly to ensure
the rear of the applicator
shoe activates the sensor
when pushed back
Adjust depth of proximity
sensor on thread
Software timing - refer to
the following page for
software settings
