HI, MI, WI-700 service manual - 2 - component parts
2-4 Issue 9 04/2020

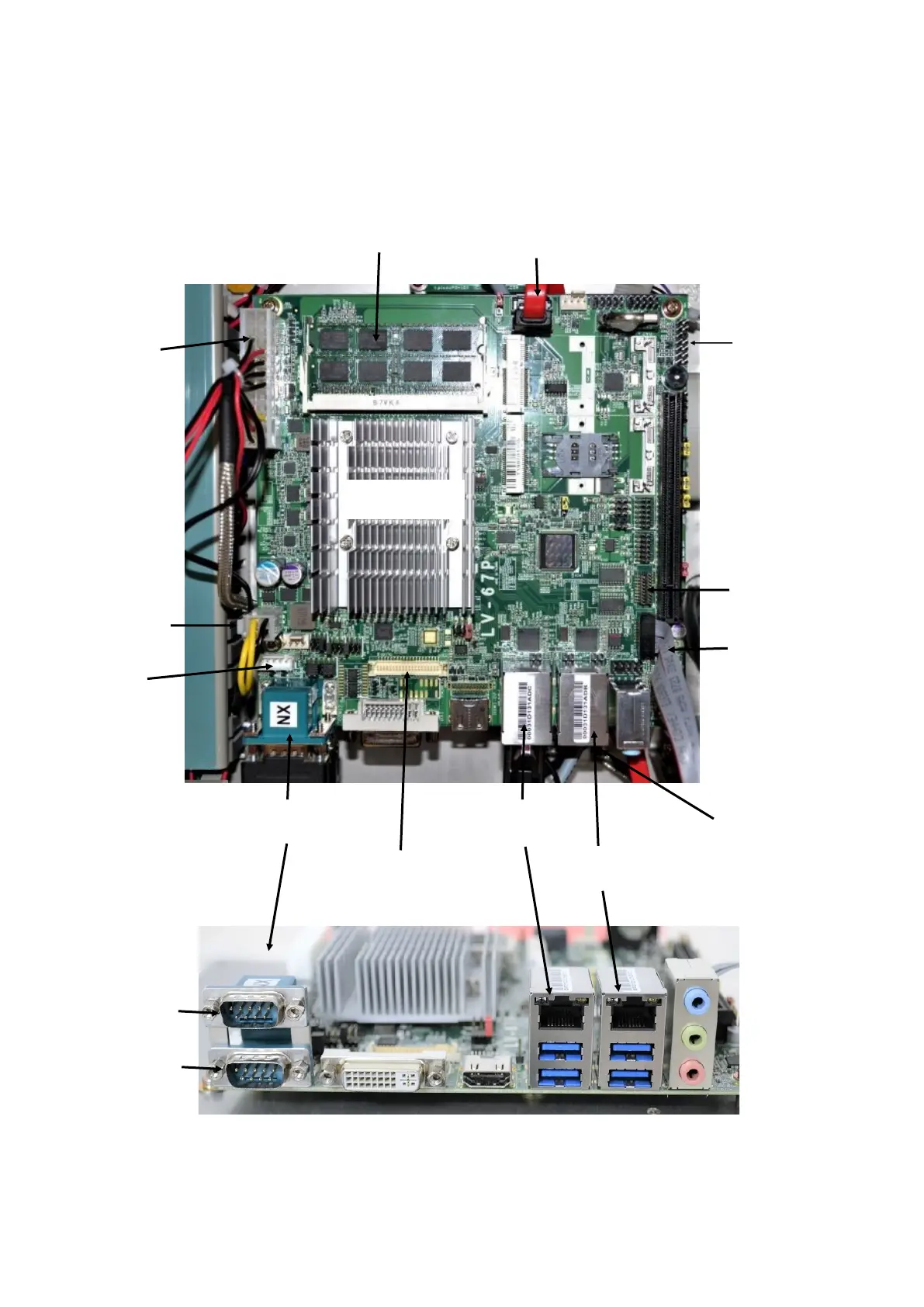

PC main board - Type LV-67P
Processor type - Intel® Pentium® N3710 - 1.6Ghz
Memory - 4Gb DDR3
Serial ports for
PLC & ADC
Hard drive
connection
ATX
Screen
connection
PC processor
Launch
button
connection
LAN interface
labeller
DC in
COM 3 & 4
(see next
page)
Screen
Inv
LAN interface
External
USB - touch screen
USB - software
dongle
Com 2 - ADC
Com 1 - PLC
COM 5 & 6
Memory - SO-DIMM1
