HI, MI, WI-700 service manual - 2 - component parts
2-7 Issue 9 04/2020
Hard drive
The standard single hard drive used is a solid state type, typically at 60Gb in size with Sata type
connection.
The hard drive holds the Windows® embedded standard image, the Console or Worldview operation
software and programmed data such as plu’s, label formats etc.
Note: any weighing calibration type data is not stored on the hard drive; this information is kept separately
in the ADC unit.

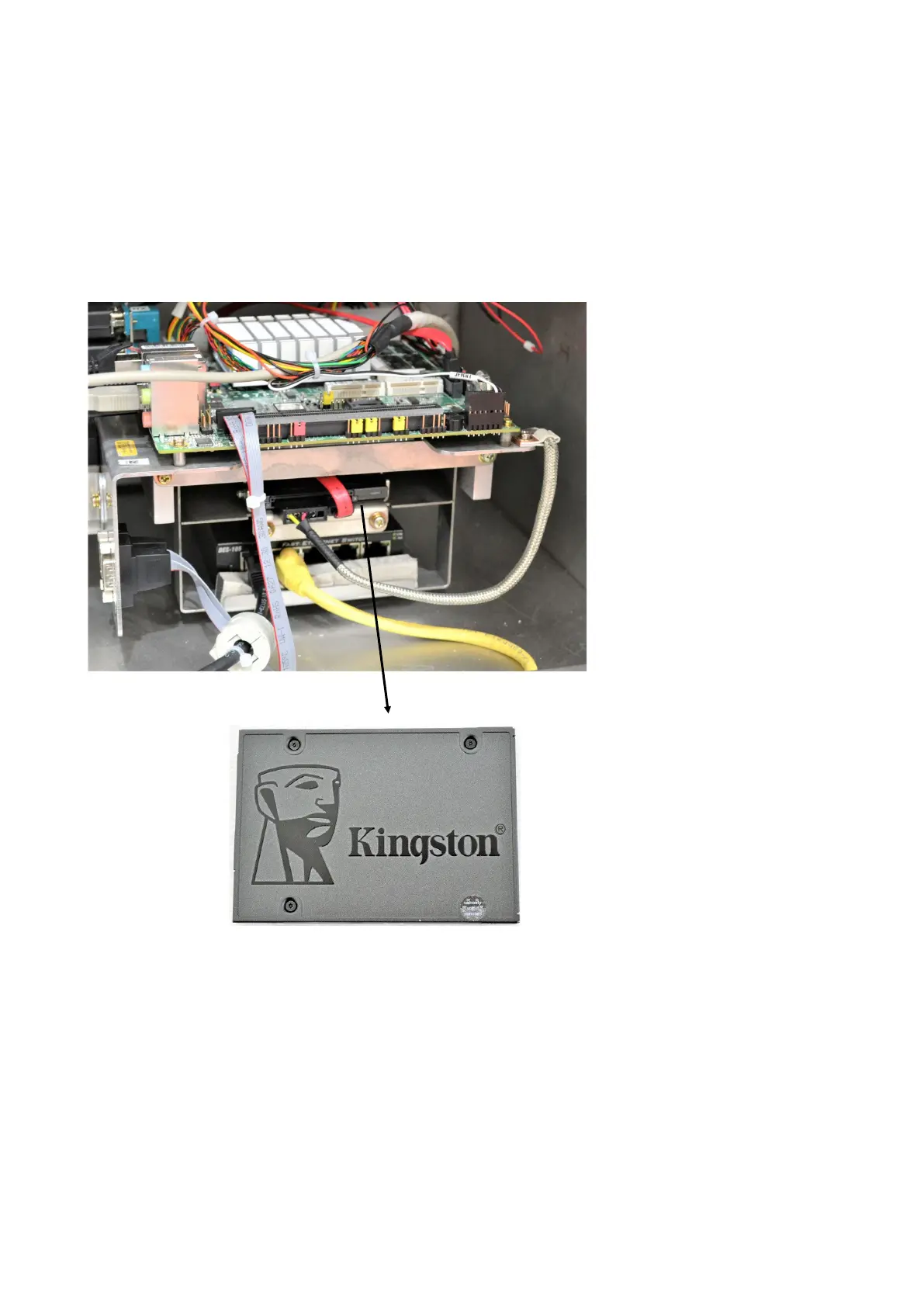

Hard drive unit.
Mounted under the main PC board
