HI, MI, WI-700 service manual - 2 - component parts
2-37 Issue 9 04/2020

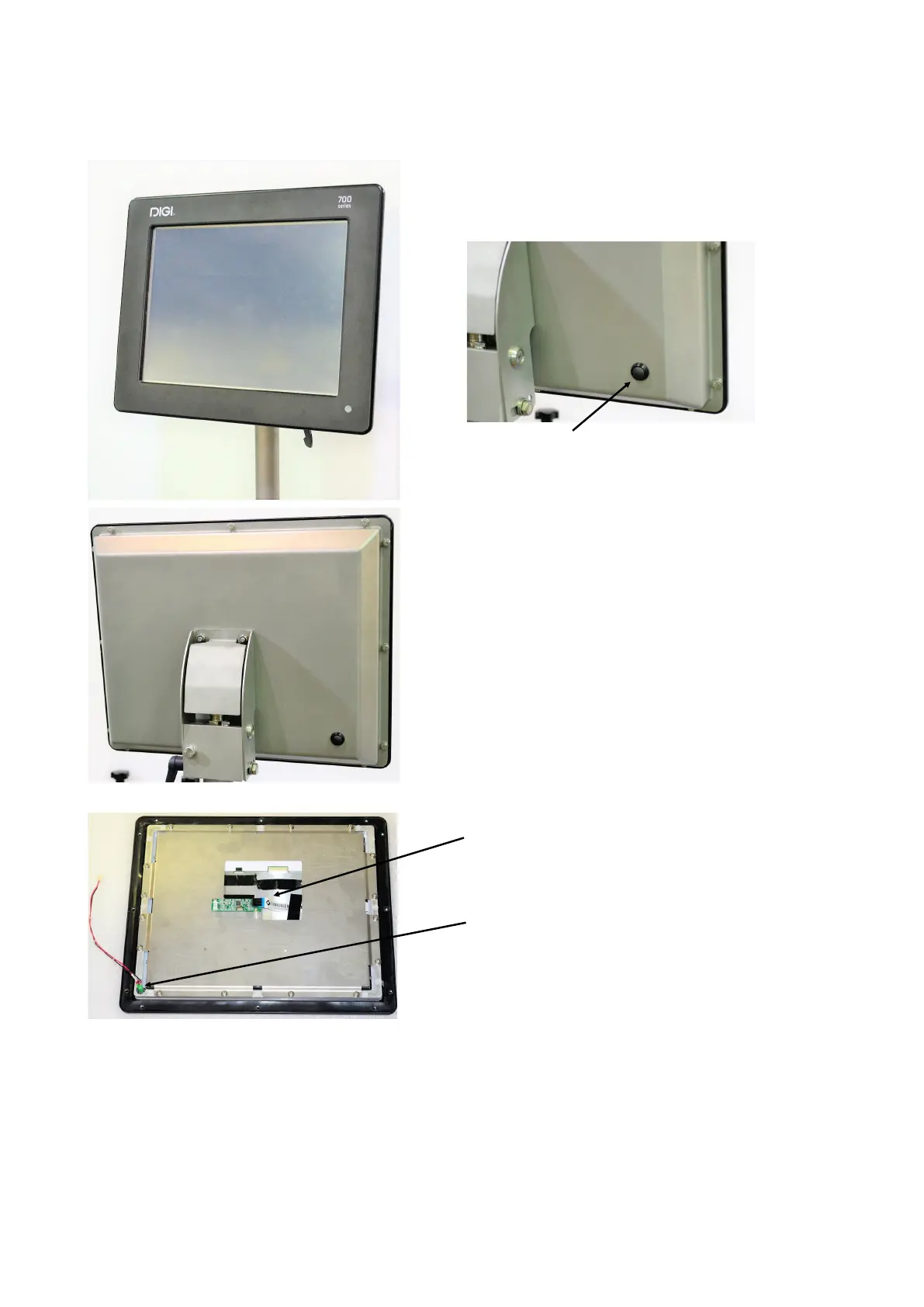

Touch screen - 15’’ (optional large screen)
Launch button for starting PC (rear
of screen assembly).
To gain access to the touch screen assembly,
unscrew the 12 hex head screws at the rear of the
unit
Ensure the front section (screen) is held once the
screws are removed to stop screen assembly
falling out of rear cover then gently lift away from
rear cover
LED screen with touch panel and interface board
This is one compete assembly, refer to the service
section (4) for dismantling details
Green LED - power on indicator
