HI, MI, WI 700 service manual - 1 - Installation
1-16 Issue 9 04/2020
Outfeed conveyor motor connection
There is a round 8 pin connector for the outfeed conveyor motor which needs connecting to the 8 pin
connector from the electrical box, (MI & WI are already connected).
The connector will have a bracket attached to it which is to be mounted on the rear side frame of the out-
feed conveyor

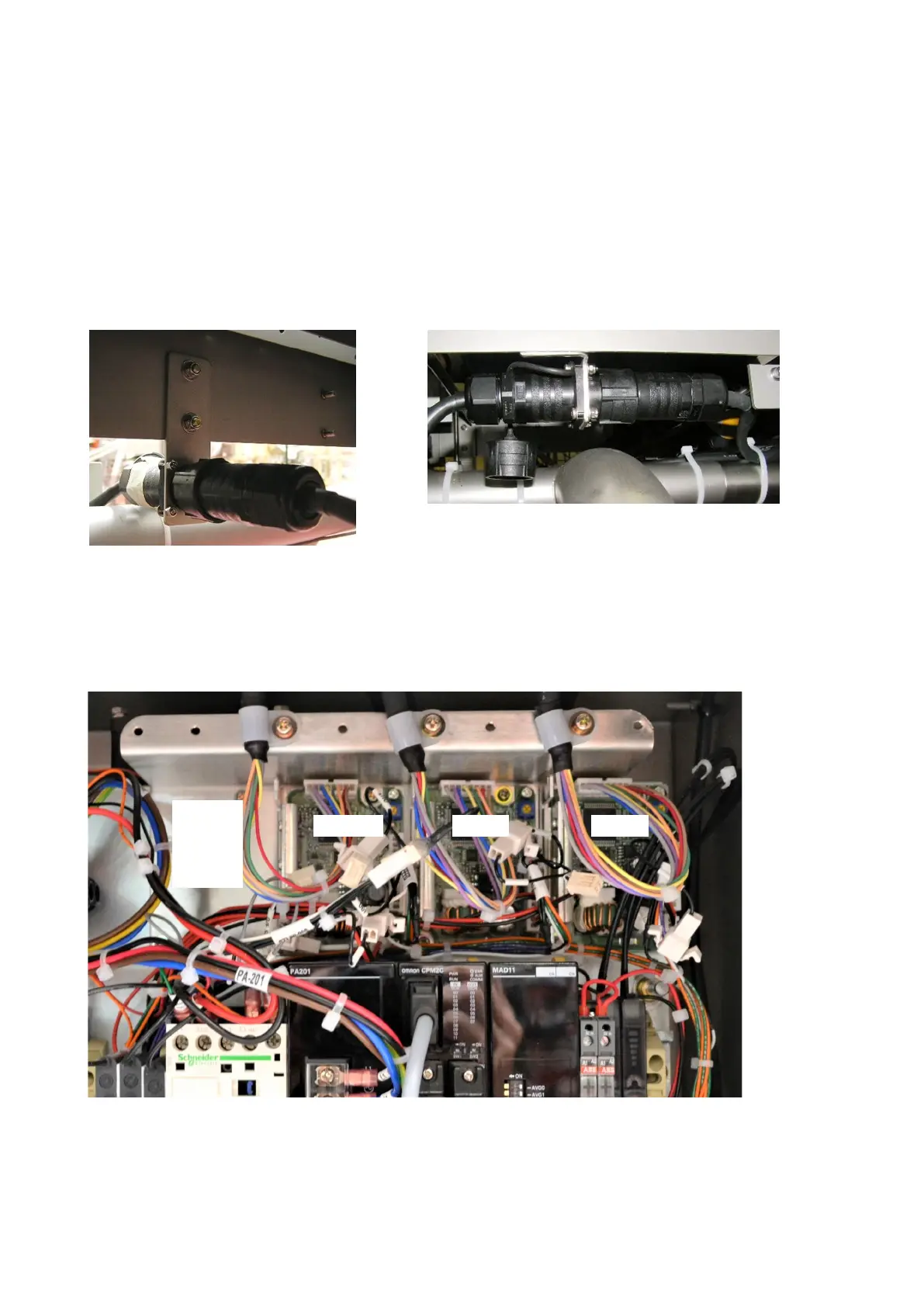

Straight bracket connector type Angled bracket connector type
Standard HI, MI, WI motor driver layout
A standard machine with single infeed, scale and outfeed will have three motor driver
An space is provided for an additional driver board if a sub-infeed is fitted
Infeed Scale Outfeed
Space for
sub-
infeed
driver
