DigiPoS PowerPoS & Millennium Technical Manual

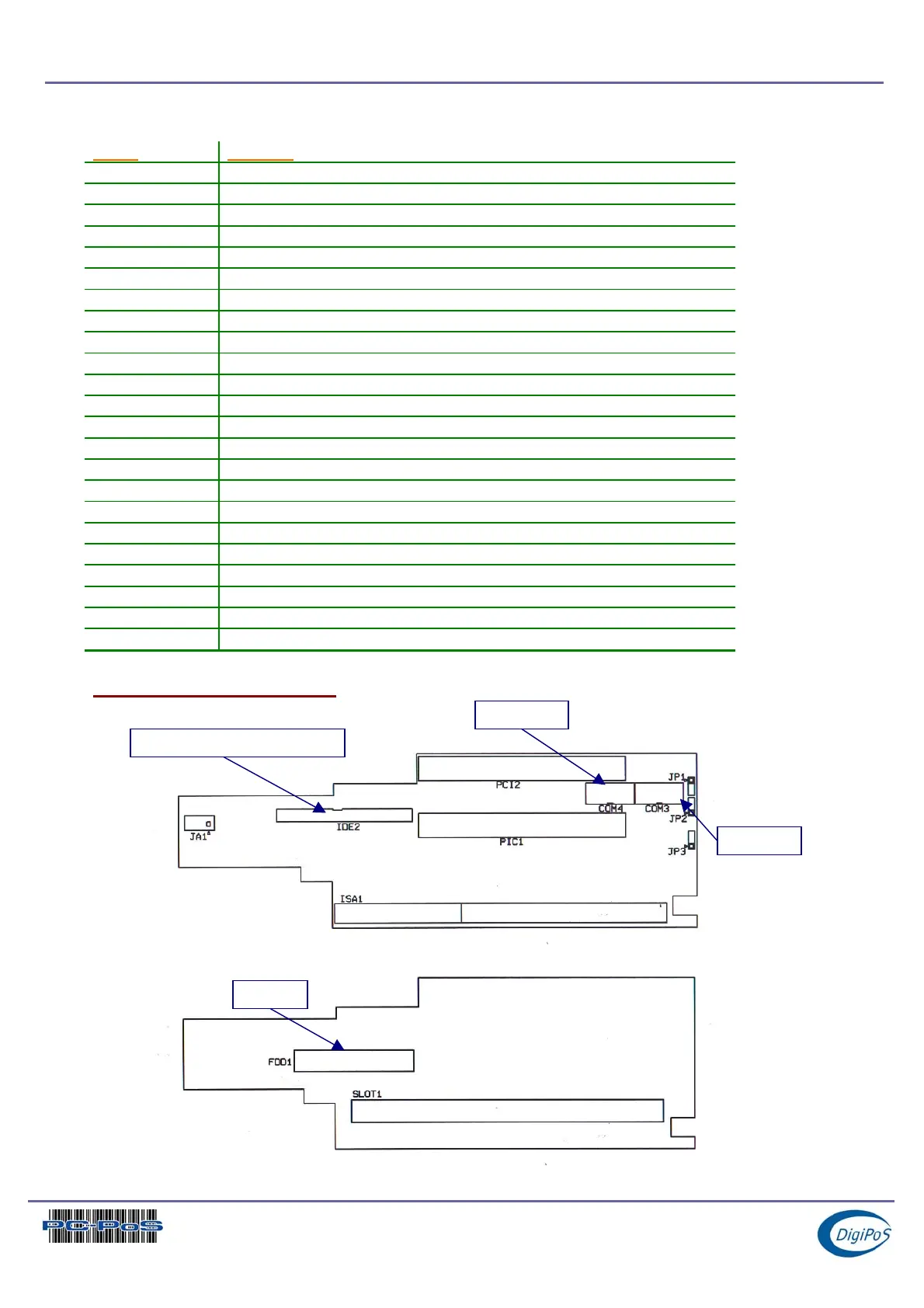

Connections
Name Function
J8 RESET JUMPER
J10 AUDIO & TV-OUT 20 PIN CONNECTOR
VGA1 VGA DSUB 15PIN CONNECTOR
VGA2 VGA 10 PIN (2 rows X 5 pins) CONNECTOR
USB1 USB1 & USB2 CONNECTOR
IDE1 HDD 40 PIN CONNECTOR
COM1 COM1 10 PIN (2 rows x 5 pins) CONNECTOR
COM2 COM2 10 PIN (2 rows x 5 pins) CONNECTOR
LPT1 LPT1 26 PIN (2 rows X 13 pins) CONNECTOR
PS2_MS PS2 6 PIN MOUSE CONNECTOR
PS2_KB PS2 6 PIN KEYBOARD CONNECTOR
KB1 EXT KEYBOARD 1X5 PIN CONNECTOR
PWR1 POWER 8 PIN INPUT CONNECTOR
PWR POWER LED CONNECTOR
LAN LAN LED CONNECTOR
HDD IDE1 LED CONNECTOR
J11 DISK ON CHIP LED CONNECTOR
FAN1 FAN 3 PIN CONNECTOR
FAN2 FAN 3 PIN CONNECTOR
U2 LAN BOOT ROM PLCC 32 PIN SOCKET
U30 DISK ON CHIP DIP 32 PIN SOCKET
U37 LAN RJ45 8 PIN CONNECTOR
LCD1 & LCD2 TV-OUT or TMDS PIGGY BACK BOARD CONNECTOR
Riser Card Orientation
COM 3
COM 4
CD Drive Connector
FDD
Page 27 of 27
