DigiPoS PowerPoS & Millennium Technical Manual
Shell - Not Connected

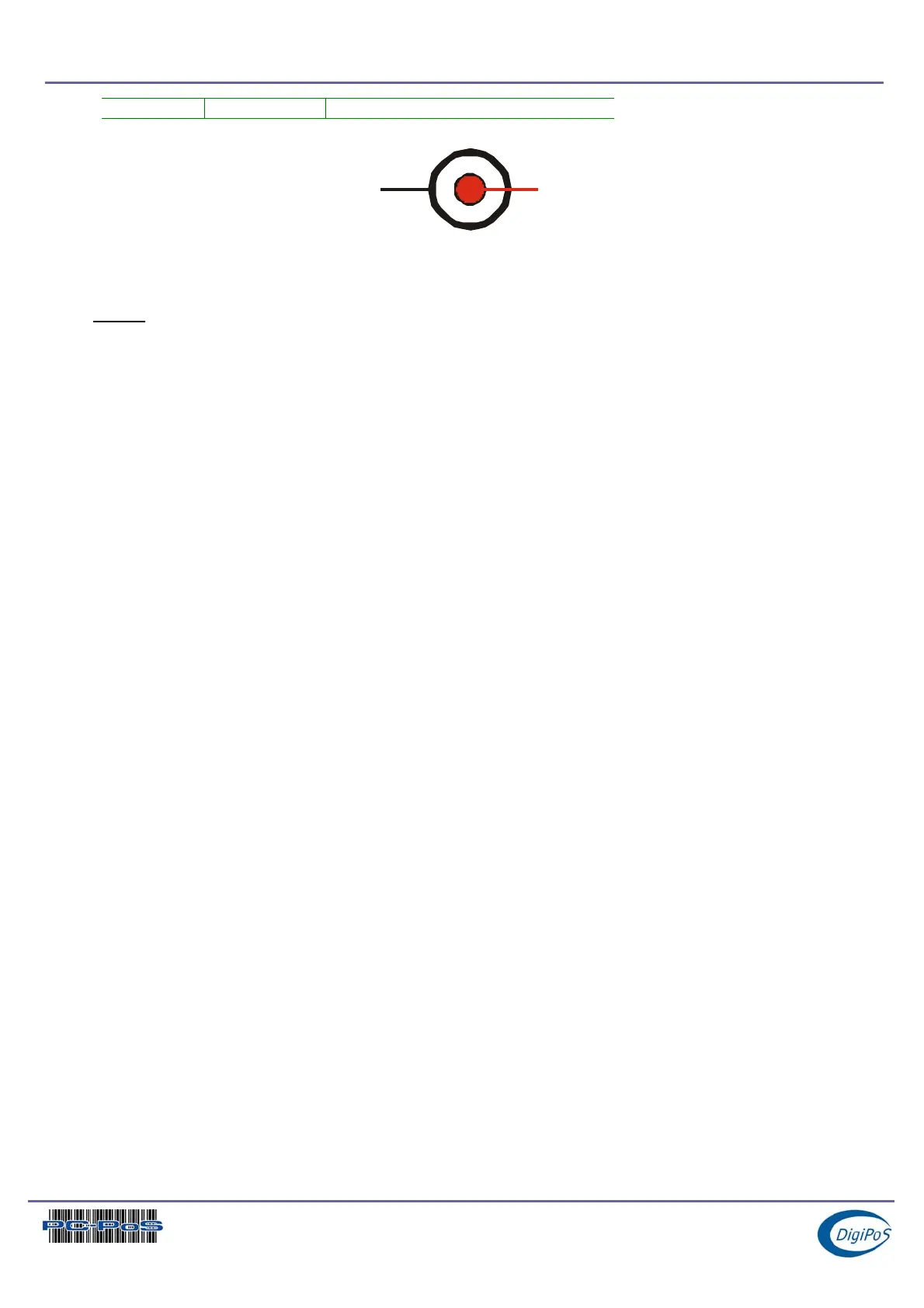

2.5mm Barrel Connector
+Ve
-Ve
The Voltage for the 2.5mm Barrel is selected via J5 on the Power Distribution board
outlined in the next section.
NOTE
If the 2.5mm barrel is being used to power an LCD, extra caution is to be taken in the
event that the cable becomes loose. If the cable becomes detached, either from the
DigiPoS end or the LCD end, first switch off the monitor using the power button on the
front of the LCD and then re-attach the cable. If this is not carried out correctly, you risk
blowing the fuse or even damaging the DigiPoS if the LCD is left on while trying to re-
connect the cable.
Page 34 of 34
