DigiPoS PowerPoS & Millennium Technical Manual

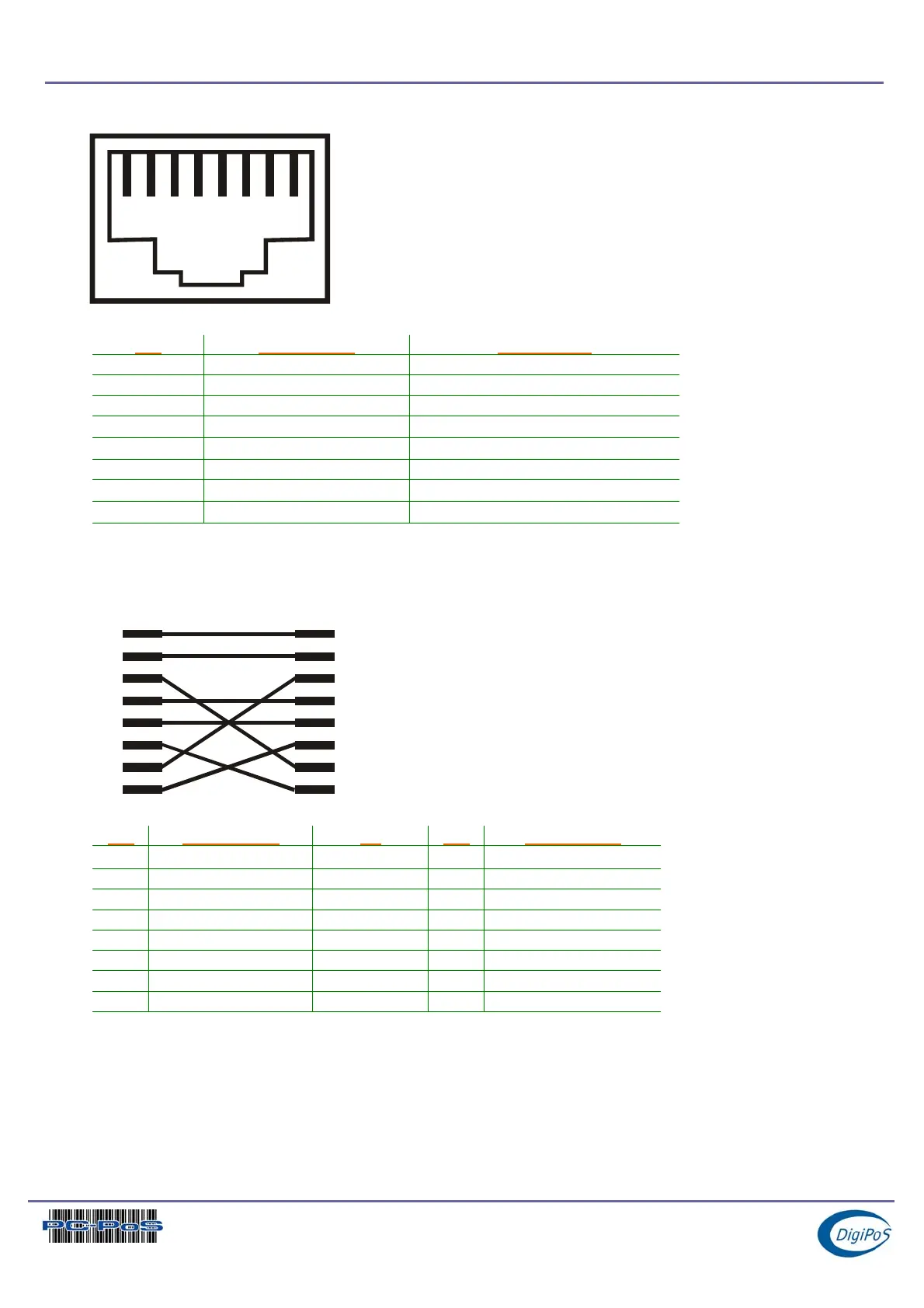

LAN Connector
123 456 7 8
Pin Wire Colour Description
1 White / Orange Transmit
2 Orange Transmit
3 White / Green Receive
4 Blue
Not Used⊗
5 White / Blue
Not Used⊗
6 Green Receive
7 White / Brown
Not Used⊗
8 Brown
Not Used⊗
⊗ = These Pairs are not used with 10BaseT or Fast Ethernet 100BaseTX. These pairs are only required for
100BaseT4 and Gigabit Ethernet 1000BaseTX Standards.
Crossover Cable Pin Out
1
234567
8
12345678
Pin Wire Colour To Pin Wire Colour
1 White / Orange - 3 White / Green
2 Orange - 6 Green
3 White / Green - 1 White / Orange
4 Blue - 4 Blue
5 White / Blue - 5 White / Blue
6 Green - 2 Orange
7 White / Brown - 7 White / Brown
8 Brown - 8 Brown
