DigiPoS PowerPoS & Millennium Technical Manual
Correct Fuse Ratings
The Fuse ratings must never be exceeded.
If a fuse blows, it is either an indication of a problem with a powered peripheral or that
voltage is drawing too much current. If you have to replace the same fuse more than once
in any 24-hour period, please contact PC-PoS or your PC-PoS representative.
The fuse type is a mini-blade automotive fuse. Please contact you’re nearest PC-PoS
office or representative if you require replacements or spares.
Power Board Configuration
Jumper Port Setting Default Setting
J1 COM1 0, 5, 9, 12, 24, Modem Not set
J2 COM2 0, 5, 9, 12, 24, Modem Not set
J3 COM3 0, 5, 9, 12, 24, Modem Not set
J4 COM4 0, 5, 9, 12, 24, Modem Not set
J5 Barrel 0, 5, 9, 12, 24, Modem Not set
COM 3COM 2COM 1 COM 4 DC Conn.
5V
9V
12V
24V
2A 2A 4A 5A

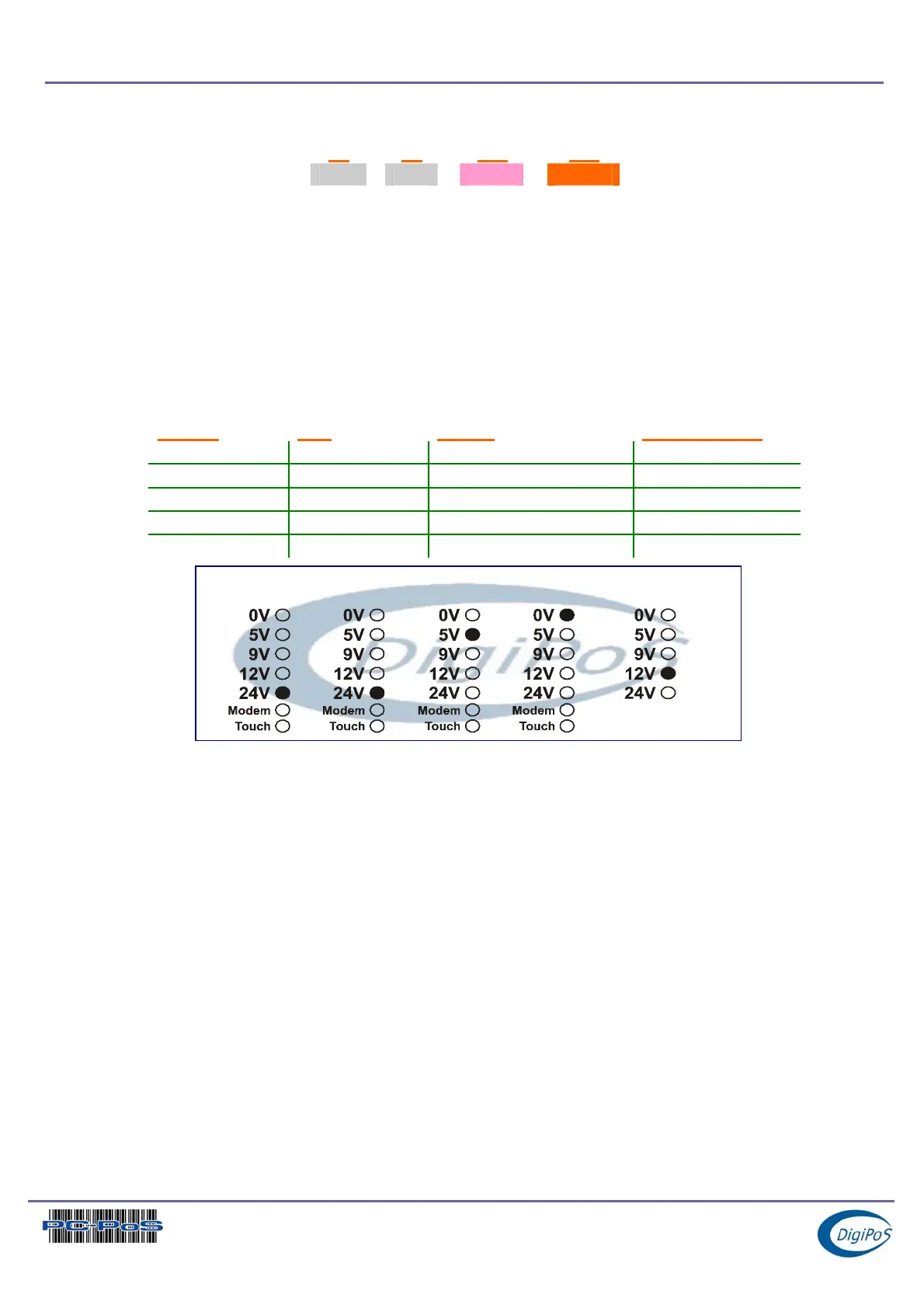

A typical configuration sticker giving details on what voltage has been set with regard to which
port. This sticker can usually be found on the underside of the case towards the rear. Please note
the Modem position if required.
Application
Unless specified at time of order, the DigiPoS will be shipped with the default jumper
settings of 0 Volts. If you wish to have a particular set-up, including the Modem option,
then please contact your PC-PoS representative.
The modem option will permit the connection of an external modem to the DigiPoS and
allows the use of the ring indicator (RI) signal. The Ring Indicator is the signal the modem
gives to the DigiPoS to tell the software that someone is trying to connect to it. The RI
signal is normally found on pin 9 of the d-type connectors and as this is the pin that is
used to supply power to the peripherals it is necessary to replace the internal cable
connection to the selected port. For example if a modem option is selected for COM port
3, then the powered cable assembly would be removed for COM port 3 and be replaced
with a non powered version. This would not affect the other 3 ports, they would remain
powered or as per requested configuration.
