3.3.5.4 Probe
The cutters will be worn down after long time working,or during the processing the users
need to change another cutters to finish job,we need to meansure the new positon of the cutter
point.Then we need the action of Probe to find new positon.In our new version V3.1,we have 3
kinds probe methods:
#68=1:Mode 1,Probe of Fixed Position of Tool Sensor;
#68=2:Mode 2,Probe of Floating Tool Sensor;
#68=3:Mode 3,Probe of rectangular block Sensor,by this methods it can probe X/Y/Z 3 axes.
If #68 set to 0,then the probe function is forbidden.
HOME
Z
-
ENTER
HOME
Z
-
ENTER
B: Home All Axes:
After pressing to go to 2nd Mode,and pressing to go to the Home mode,then
we just press again to Home All axis.The System will Home Z axis Firstly,then X/Y/A sequen-
tially.
Shift
A
-
PROBE
MODIFY
After pressing to go to 2nd Mode,and pressing to go to the Probe mode.
Shift

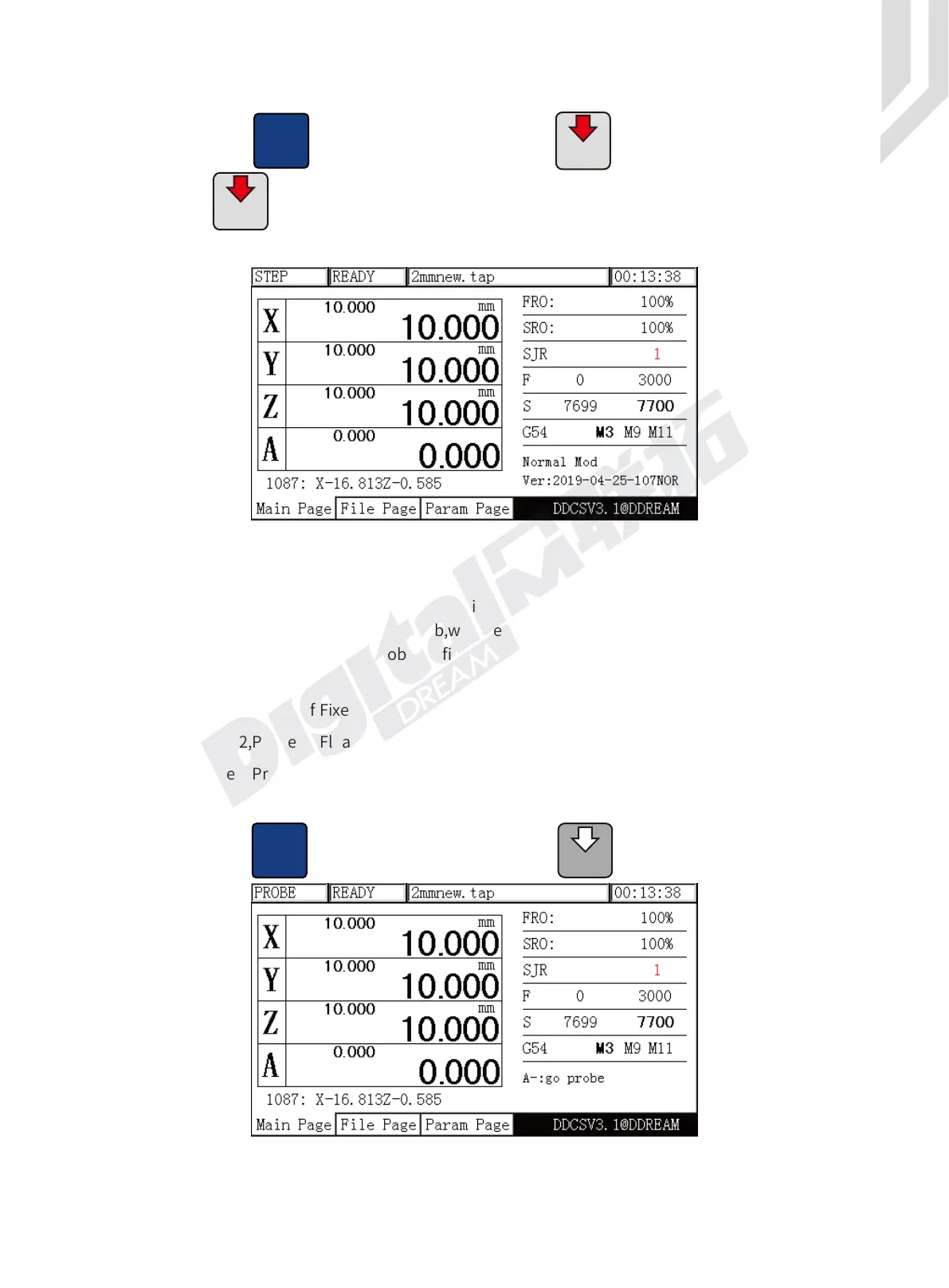

Figure 3-53 All Axis Homing
Figure 3-54 Probe Mode
