In Home Mode,there are two options.The users can Home all Axes ,also can Home selected
single axis .
Y
+
Y
A: Home selected single axis:
Press the keys of or or or to select the axis.Lets’s take the
X axis as the example:
After pressing to go to 2nd Mode,and pressing to go to the Zero mode,then
we press the Key to select X axis to Home X axis, press the enter key ,the system
will start to run the X axis to find the Home switch until the switch is triggered,then it will stop and
turn back a little distance,that is back distance,can be set by #83、#84、#85、#86 for each axis in
Param Page.For our example the X axis will run back 10mm.Then the X axis Homing action
finished,see the Figure 3-52.
A
+
A
SELECT
X+
X
X+
X
Y
+
Y
HOME
Z
-
ENTER
Z
+
Z
CANCEL
Shift

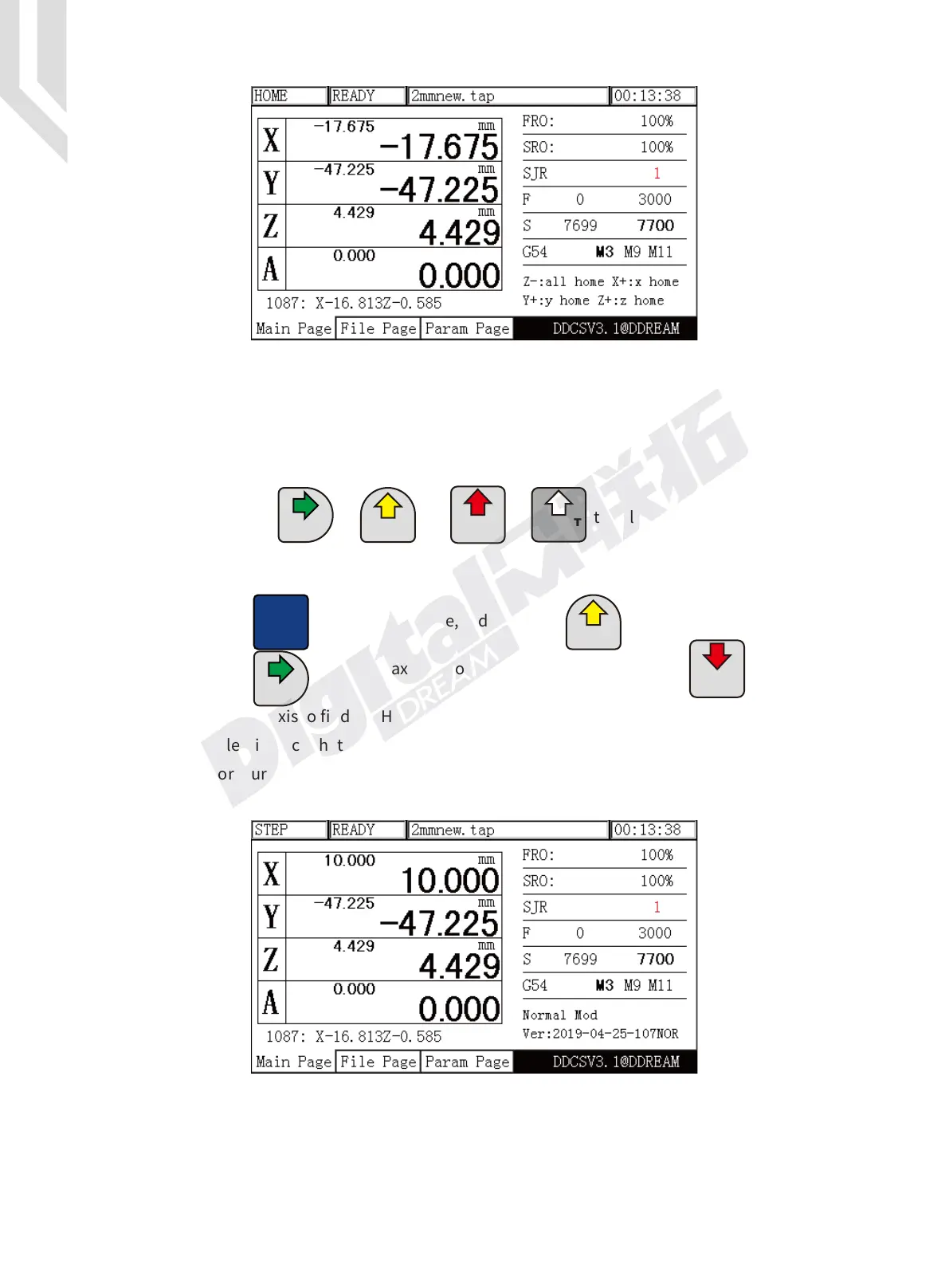

Figure 3-51 Home Mode
Figure 3-52 X axis Homing
