System Programming Digitize Inc.
32 700271-0001 Rev. G 05/13
Default Setting: Loop Indexing: Open

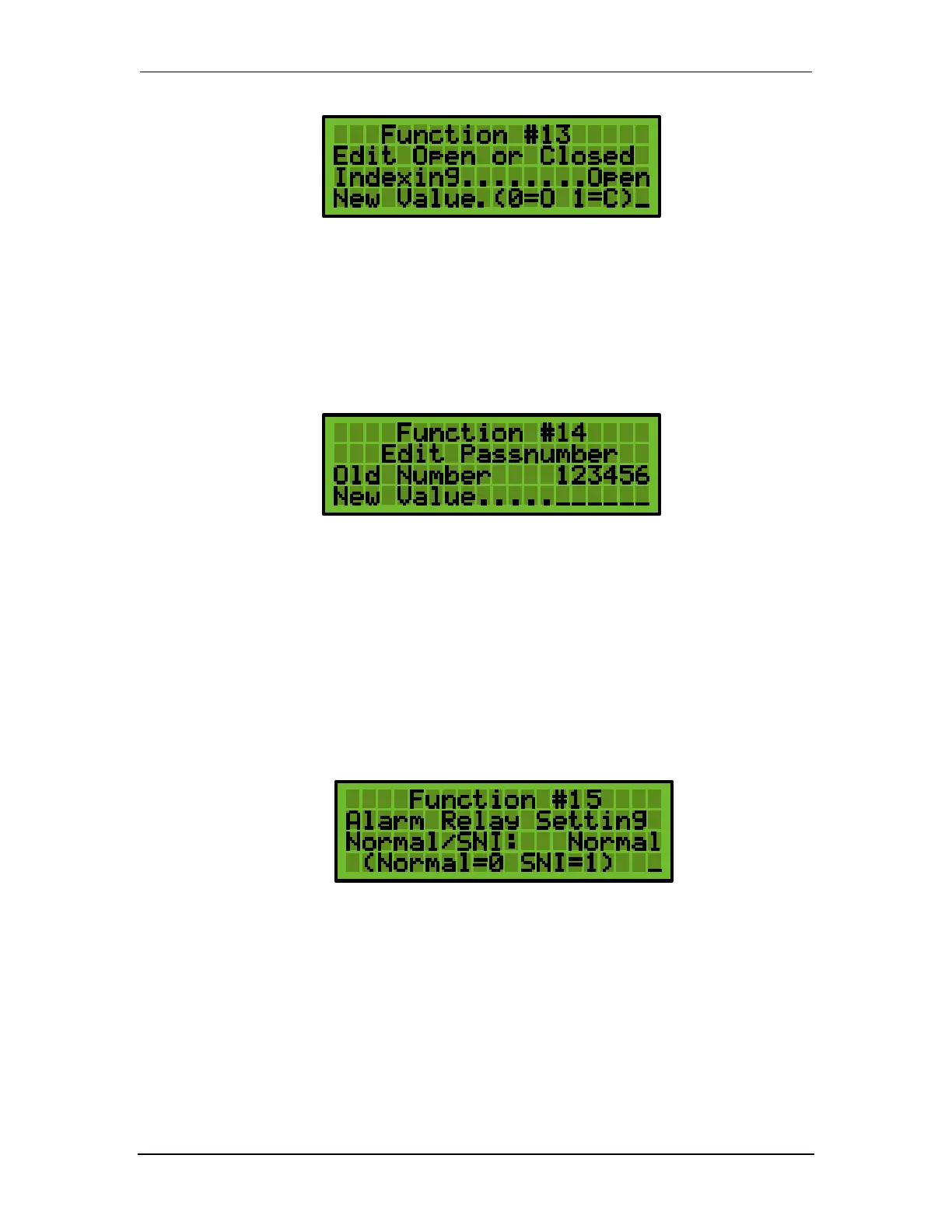

5.17 Function 14 Change Passnumber
All of the panel’s programmable functions on the DET-16 are protected by a six-digit user
passnumber. Function 14 allows the user to change the passnumber. The pass number must
be six digits long.
Default Setting: User Passnumber: 123456
5.18 Function 15 Alarm Relay Programming
The Alarm Relay can be programmed to perform two separate functions.
Normal: Normal operation for the Alarm relay is to activate whenever any of the sixteen
zones on the Det panel are in an Alarm condition.
SNI Mode: Serial Non-Interfering Loop configuration. When the Det is about to begin a
telegraph transmission, the panel will activate the Code relay, then use the Alarm relay to
send the telegraphic transmission. On completion, the Alarm relay will turn off (open)
and the Code relay will turn off (close).
Default Setting: Alarm Relay: Normal
5.19 Function 16 Edit Standby Timeout
The Standby Timeout is the amount of time that the Standby Mode will remain in effect after
being activated (See Function 17). When enabled, Standby Mode prevents the panel from
transmitting when a zone is activated. Panel Testing can be conducted in Standby Mode. The
Standby Timeout is the amount of time the panel will remain in Standby. When the timer
reaches 0, the panel will return to Normal Operation automatically.
